Front Toe-In

NOTE: See Fig 1 for toe-in adjustment procedures.

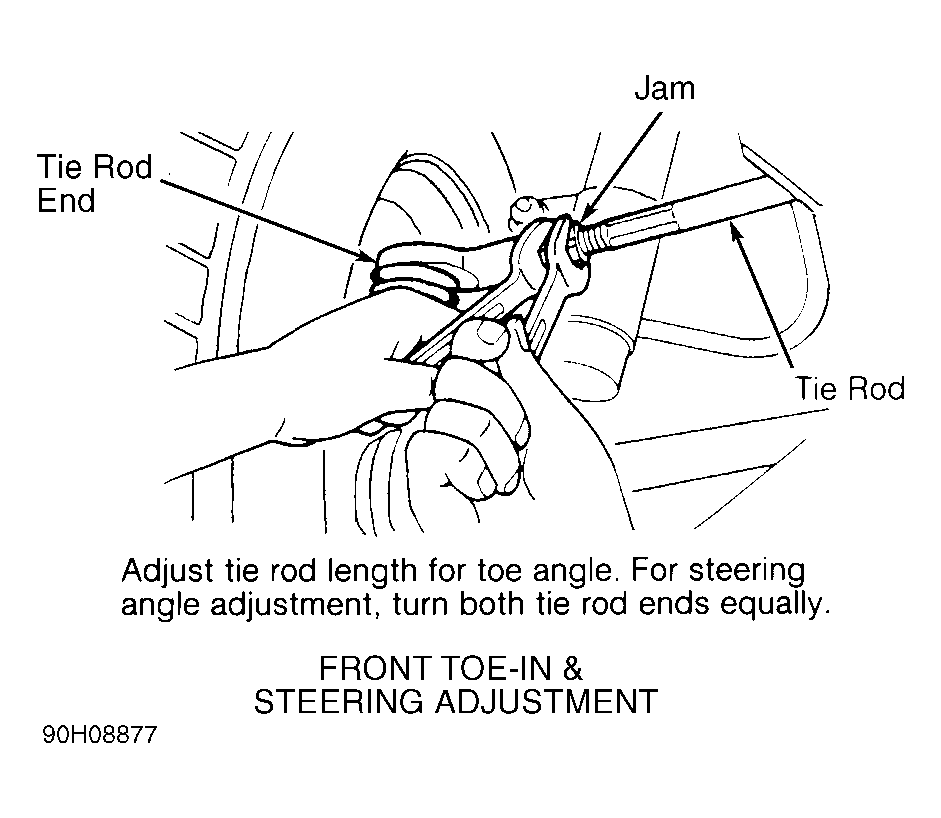

Fig 1: Adjusting Front Toe-In
G90H08877Courtesy of FORD MOTOR CO.
