Wiring Diagrams

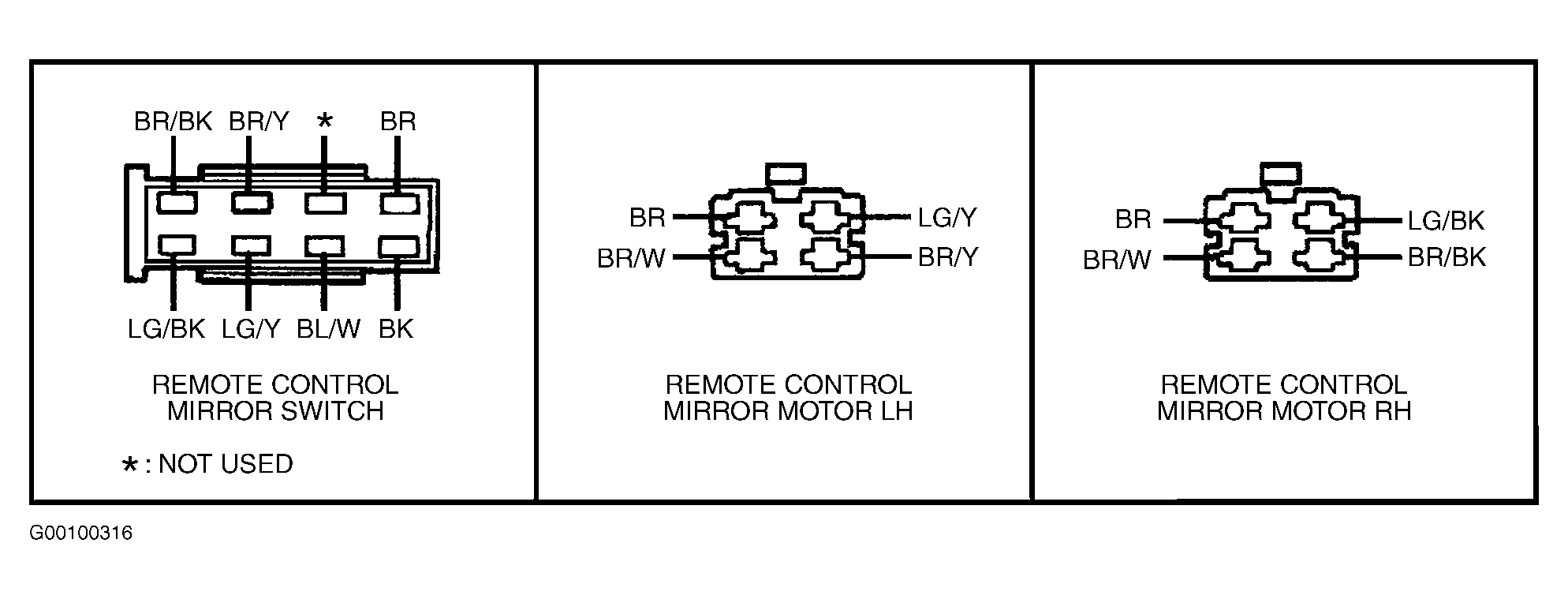

Fig 1: Identifying Power Mirror System Connector Terminals
G00100316Courtesy of FORD MOTOR CO.
Fig 2: Power Mirror Circuit
