Circuit Tests: Notes

NOTE: For identification of PCM connector terminals, see Fig 1.

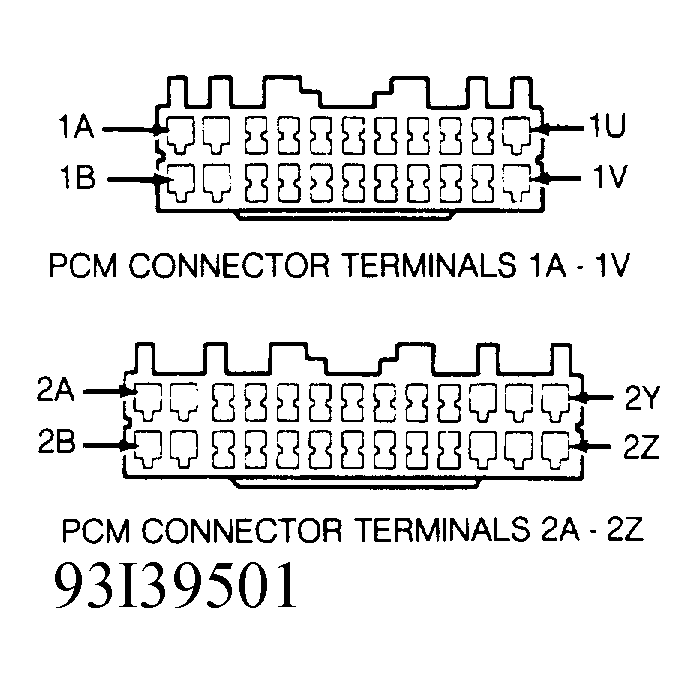

Fig 1: Identifying PCM Connector Terminals (1.8L)
G93I39501Courtesy of FORD MOTOR CO.
