Wiring Diagrams

NOTE: Keyless entry beeper is also known as a keyless entry .

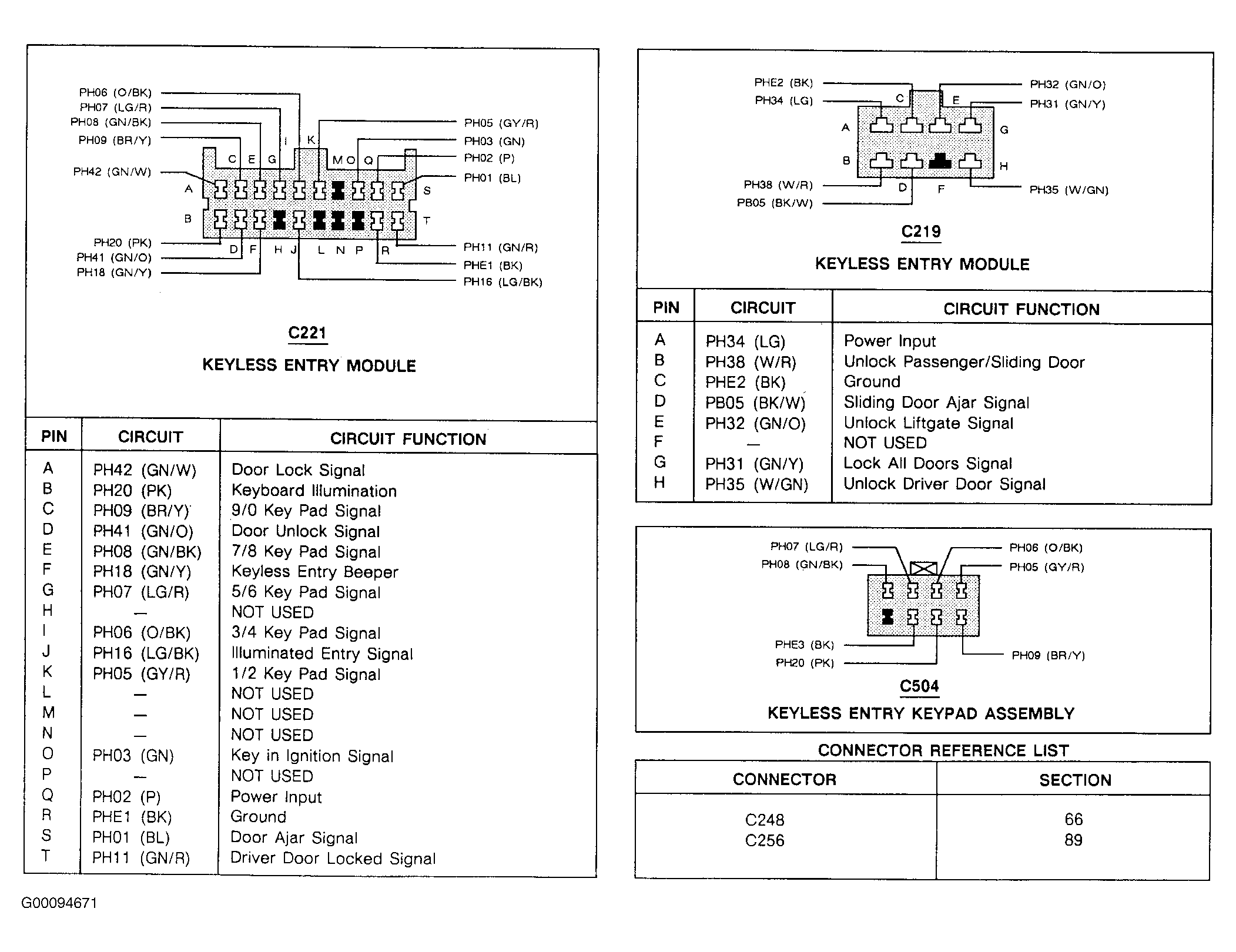

Fig 1: Keyless Entry System Connector Views

Courtesy of FORD MOTOR CO.

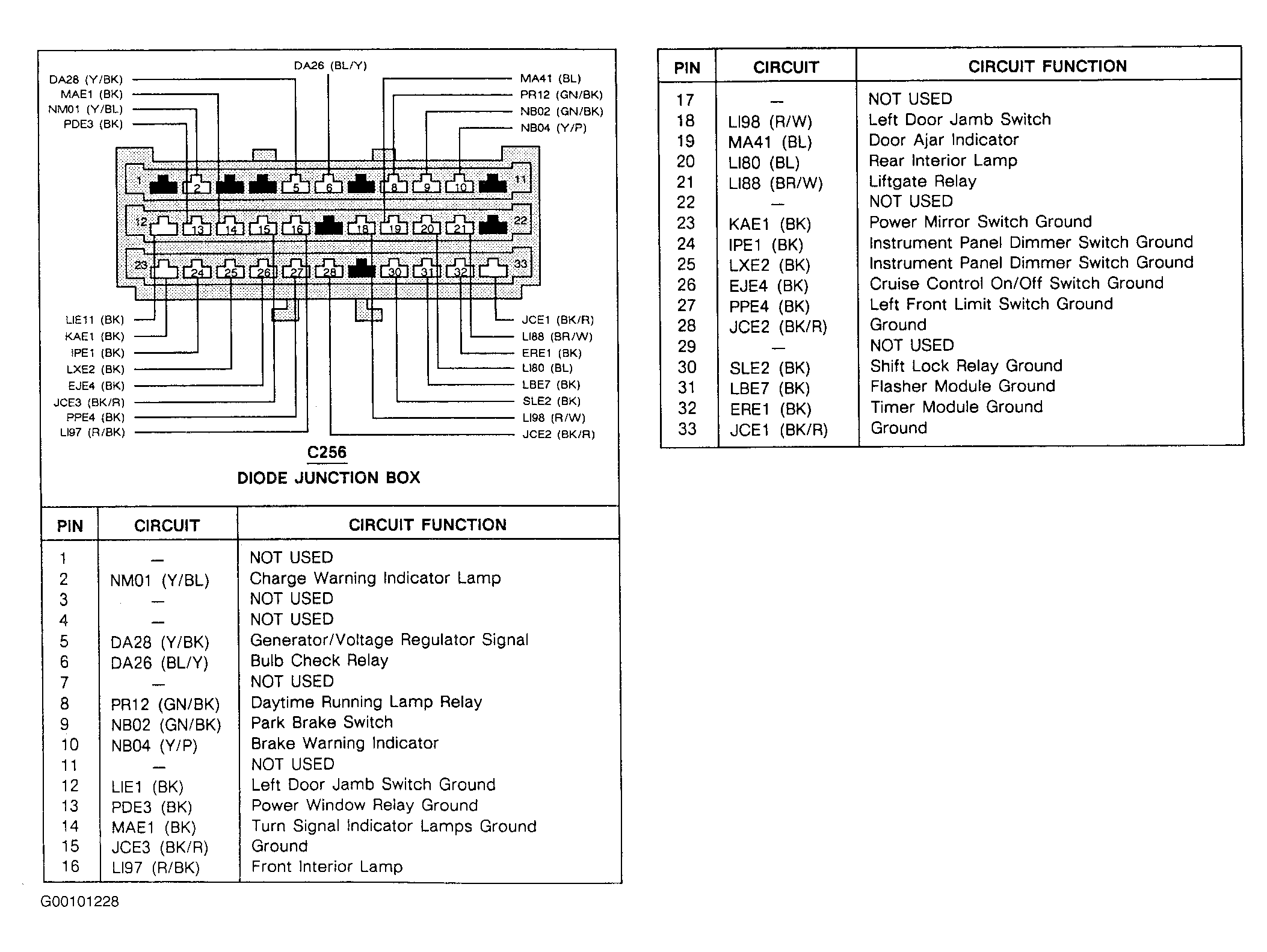

Fig 2: Diode Junction Box Connector View

Courtesy of FORD MOTOR CO.

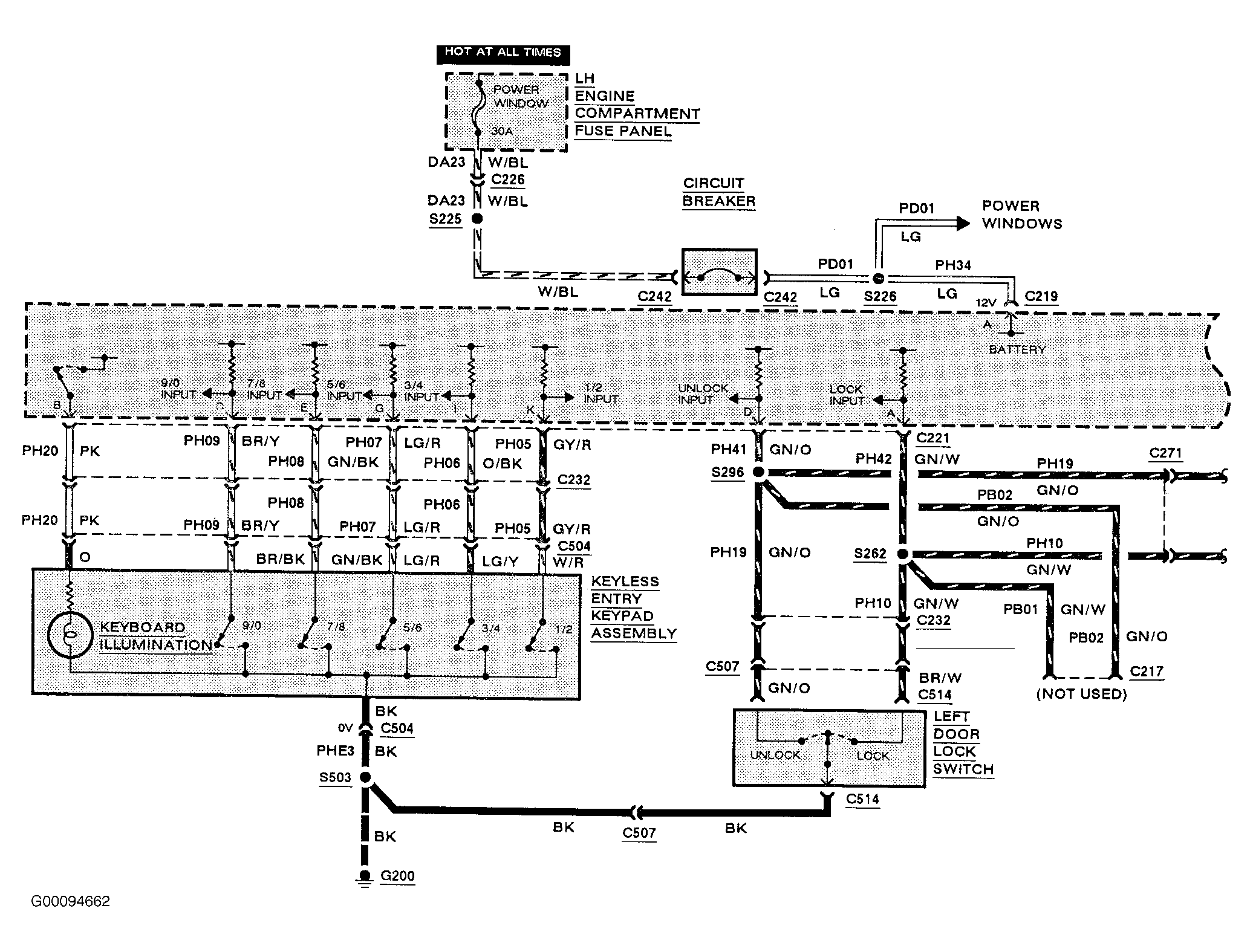

Fig 3: Keyless Entry Wiring Diagram (1 Of 4)

Courtesy of FORD MOTOR CO.

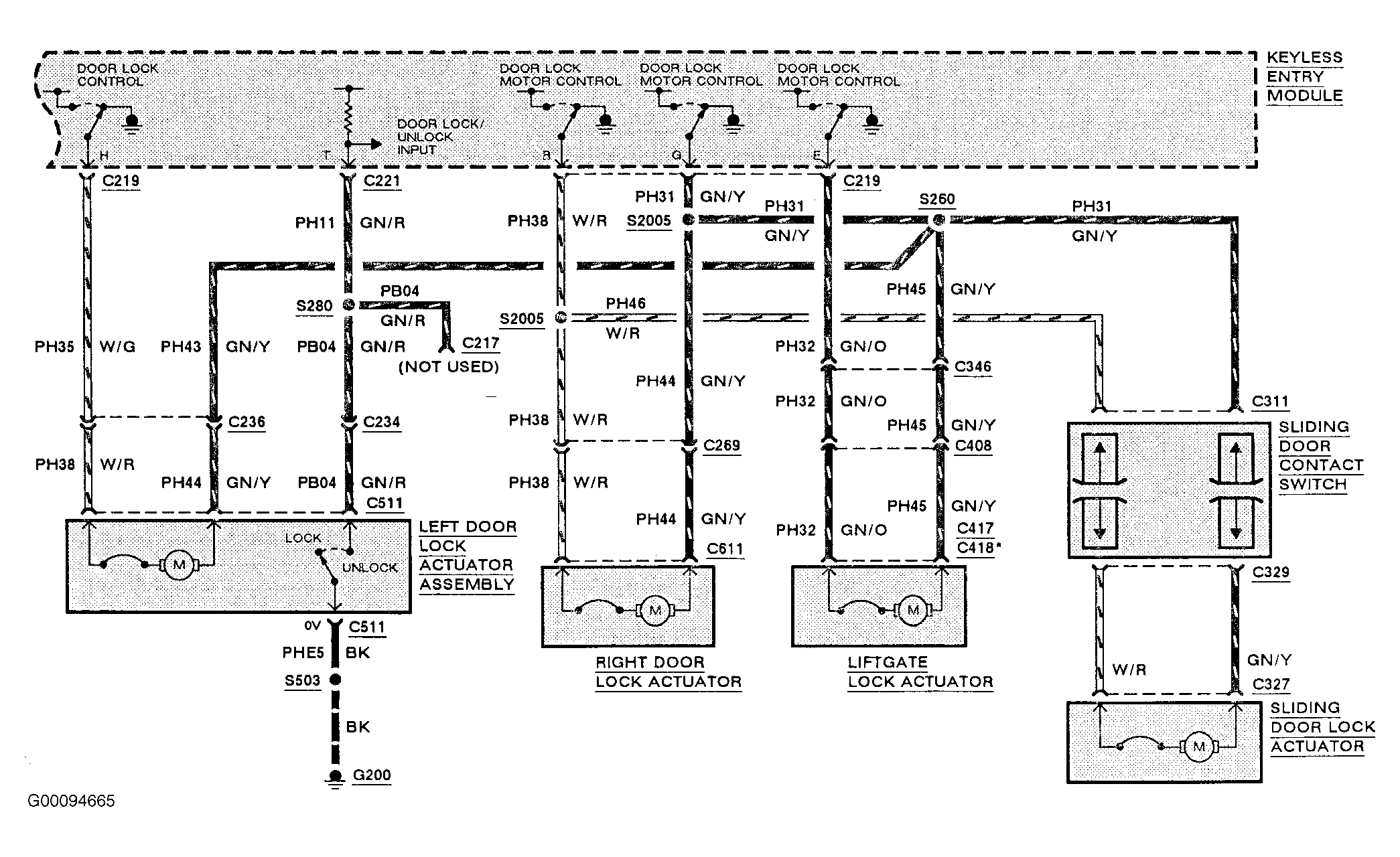

Fig 4: Keyless Entry Wiring Diagram (2 Of 4)

Courtesy of FORD MOTOR CO.

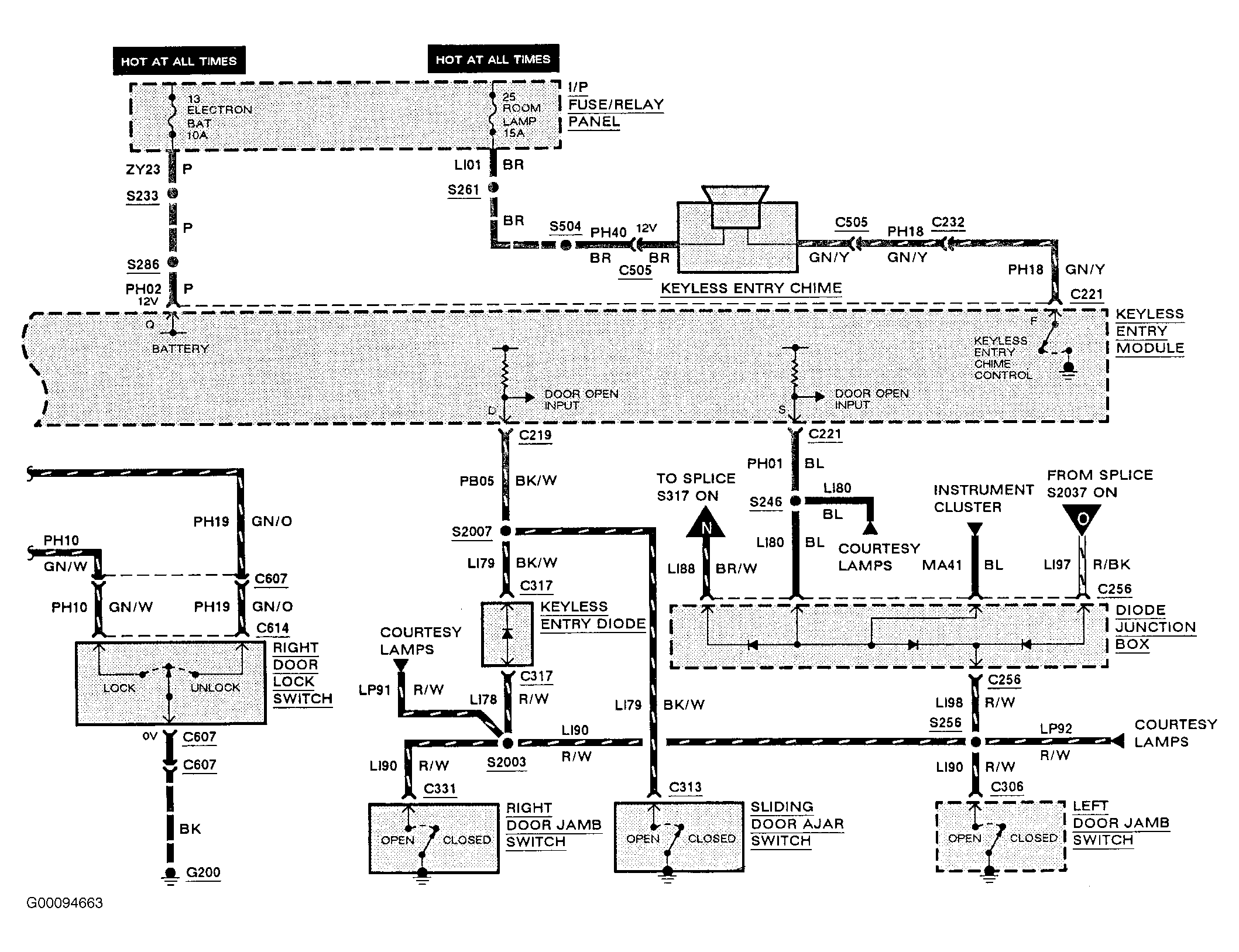

Fig 5: Keyless Entry Wiring Diagram (3 Of 4)

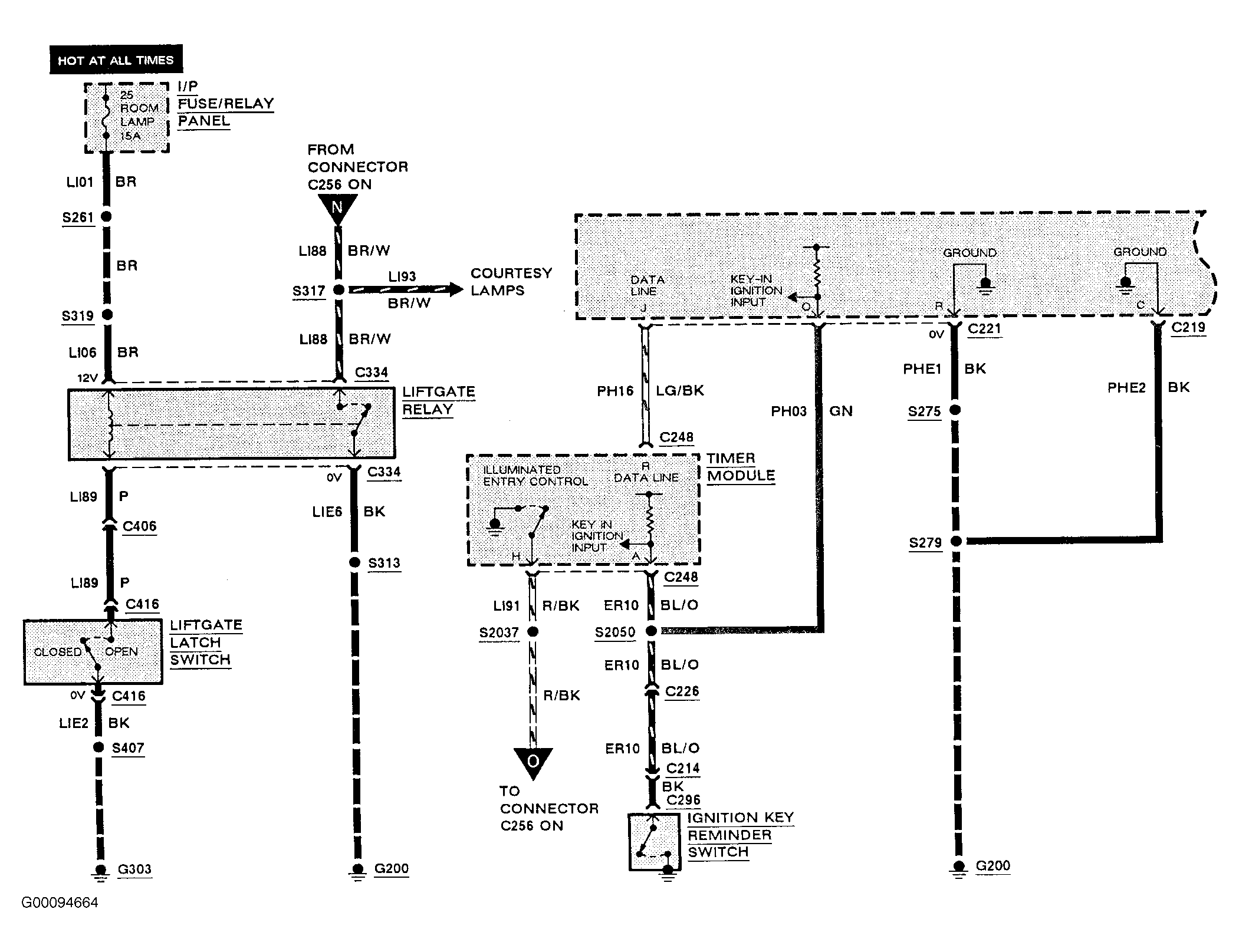

Fig 6: Keyless Entry Wiring Diagram (4 Of 4)

Courtesy of FORD MOTOR CO.
