Wiring Diagrams

NOTE: Power window amplifier is also know as a power window module.

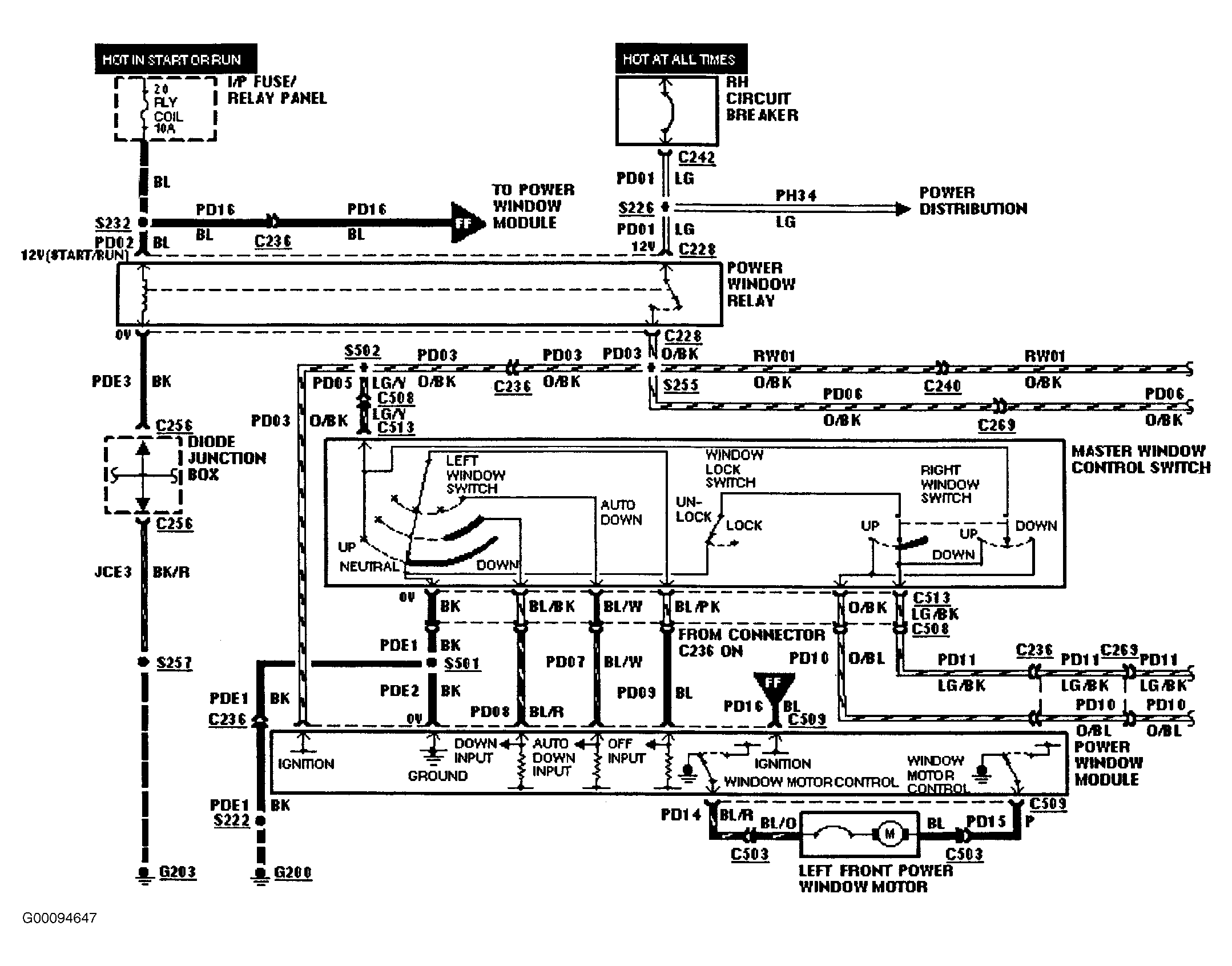

Fig 1: Power Window Wiring Diagram (1 Of 2)
G00094647Courtesy of FORD MOTOR CO.

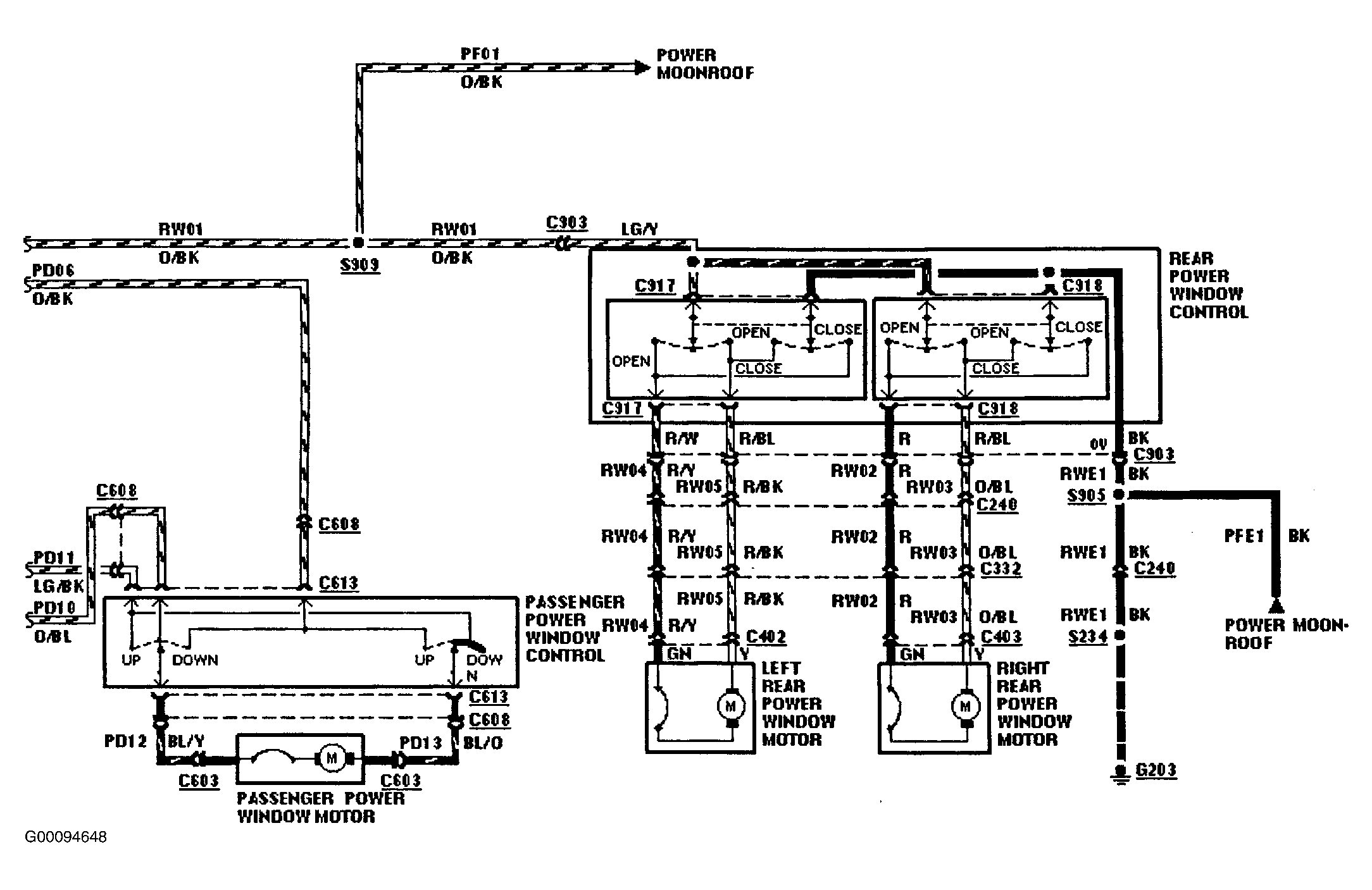

Fig 2: Power Window Wiring Diagram (2 Of 2)
G00094648Courtesy of FORD MOTOR CO.
