Electronic Vehicle Info Center: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the overhead console from the headliner.(Refer to REMOVAL  ).

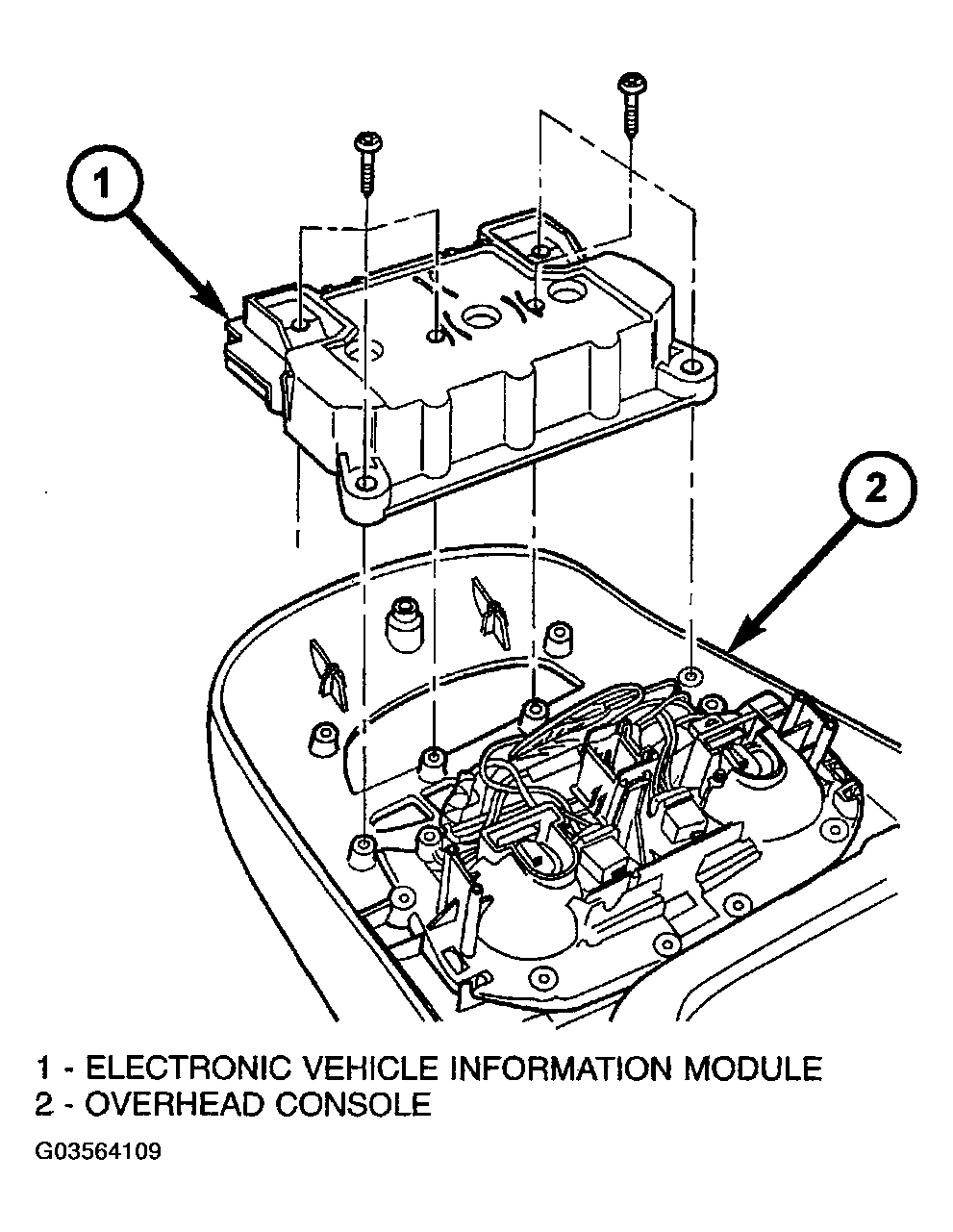

    Fig 1: Removing Overhead Console Module
    G03564109Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the EVIC module electrical connector. Depress the retaining tab and pull straight apart.
  4. Remove the screws holding the EVIC module in the overhead console (Fig 1 ).
  5. Remove EVIC module from console assembly.
