A/C Control Module-Roof - Black Connector End View

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

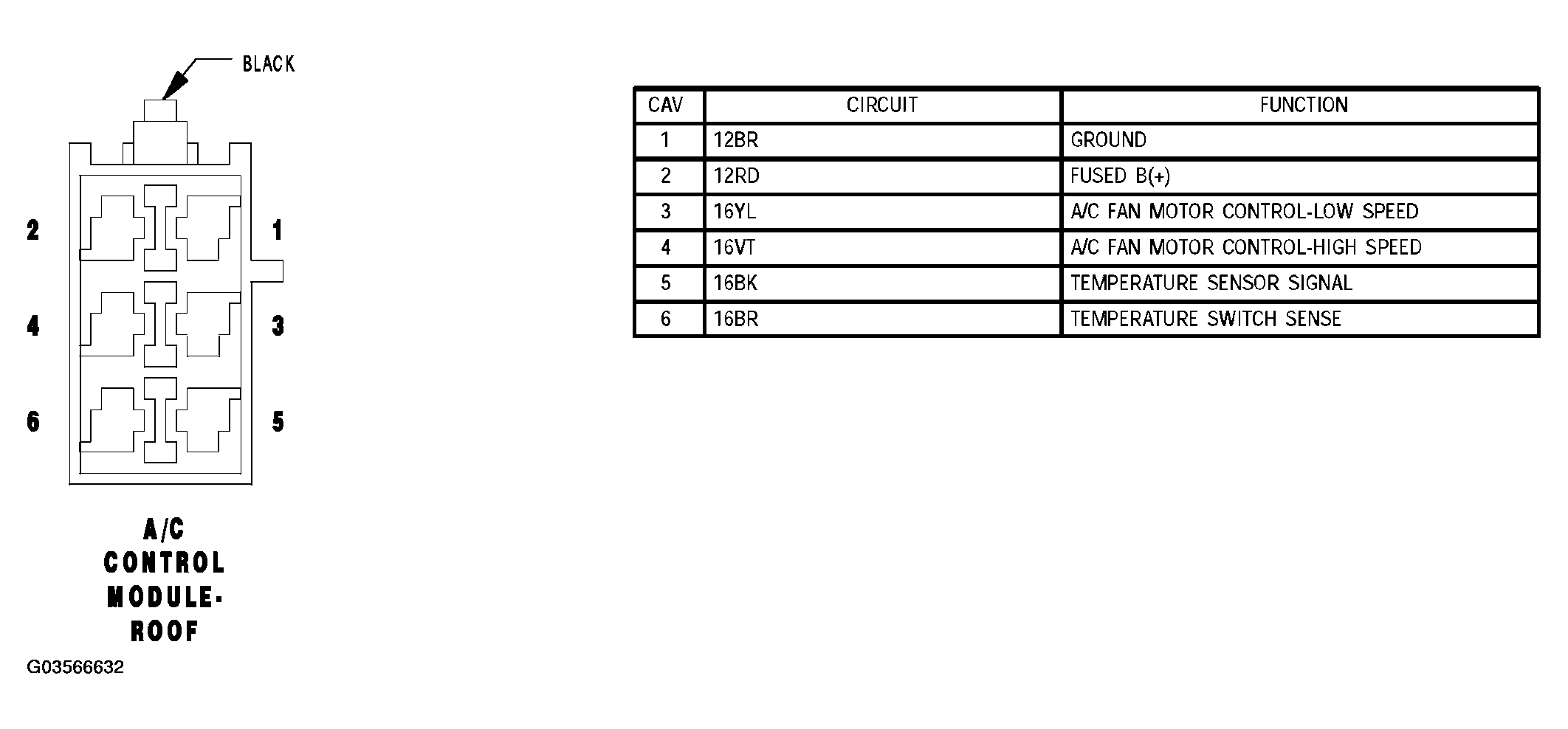

Fig 1: Roof A/C Control Module Connector End View

Courtesy of DAIMLERCHRYSLER CORP.
