Central Timer Module C1 - Pink Connector End View

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

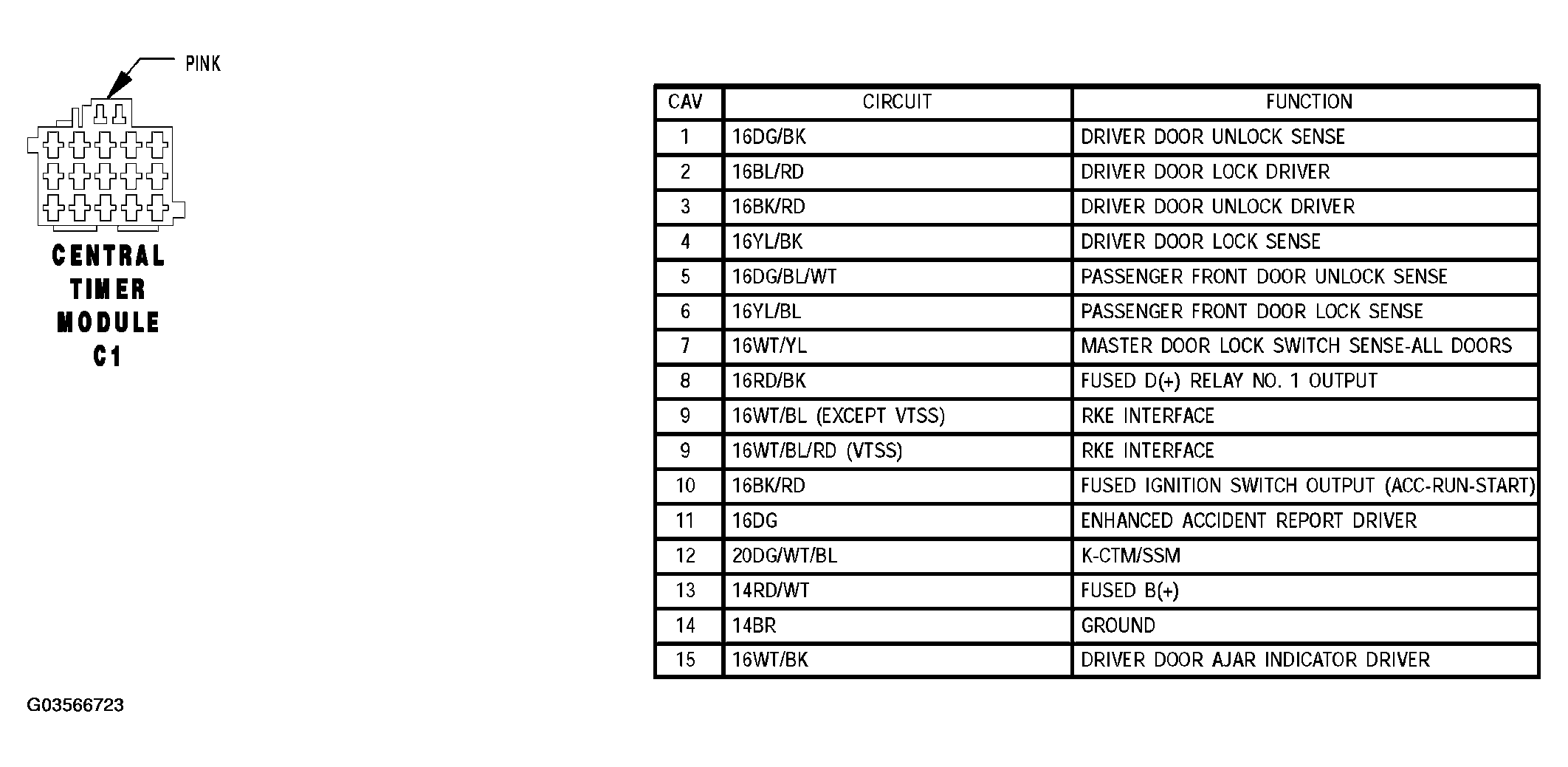

Fig 1: Central Timer Module Connector End View (C1)

Courtesy of DAIMLERCHRYSLER CORP.
