Engine Control Module C2 (OBD) Connector End View

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

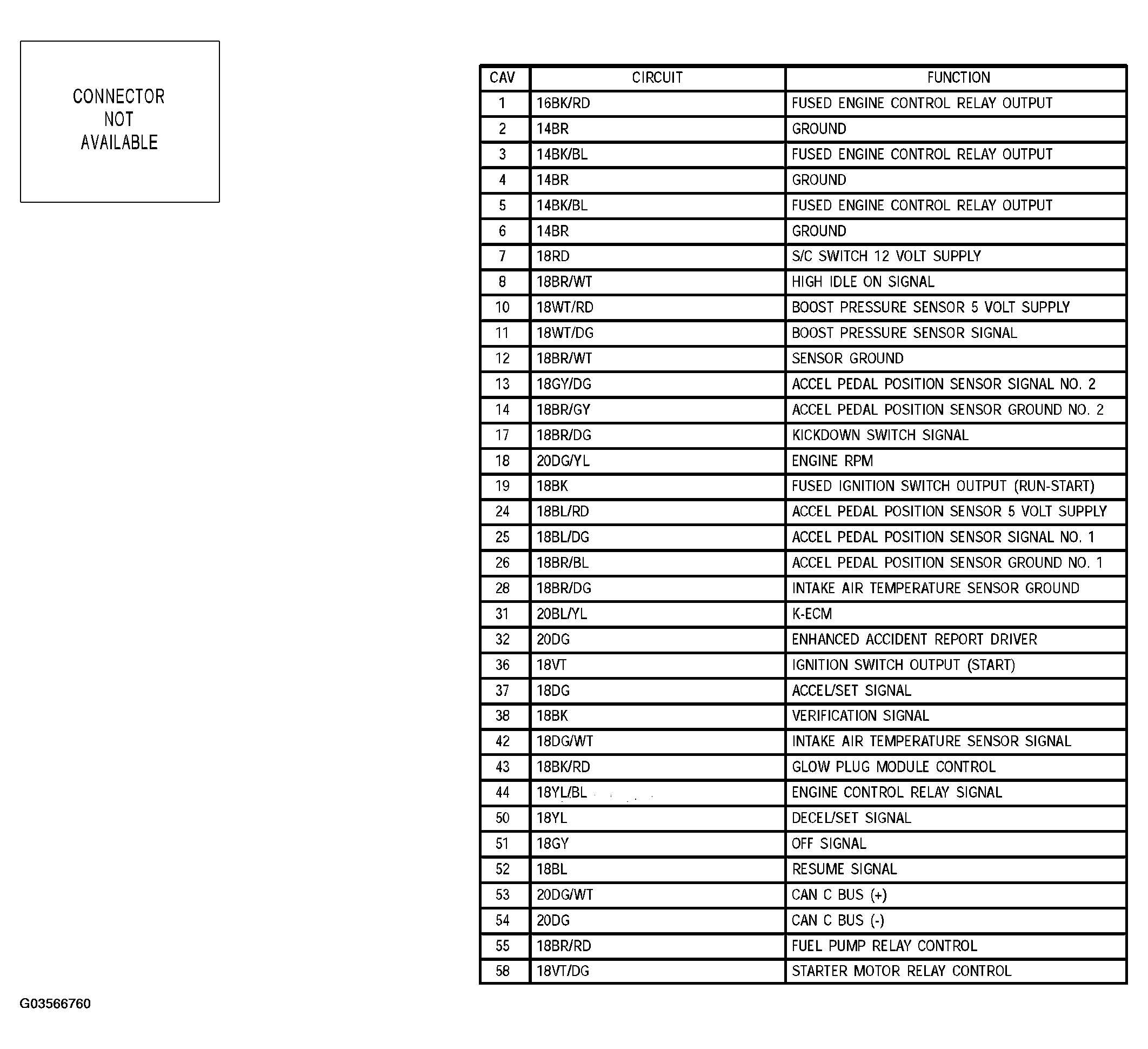

Fig 1: Engine Control Module (OBD) Connector End View (C2)

Courtesy of DAIMLERCHRYSLER CORP.
