IOD Fuse: Description: Notes

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

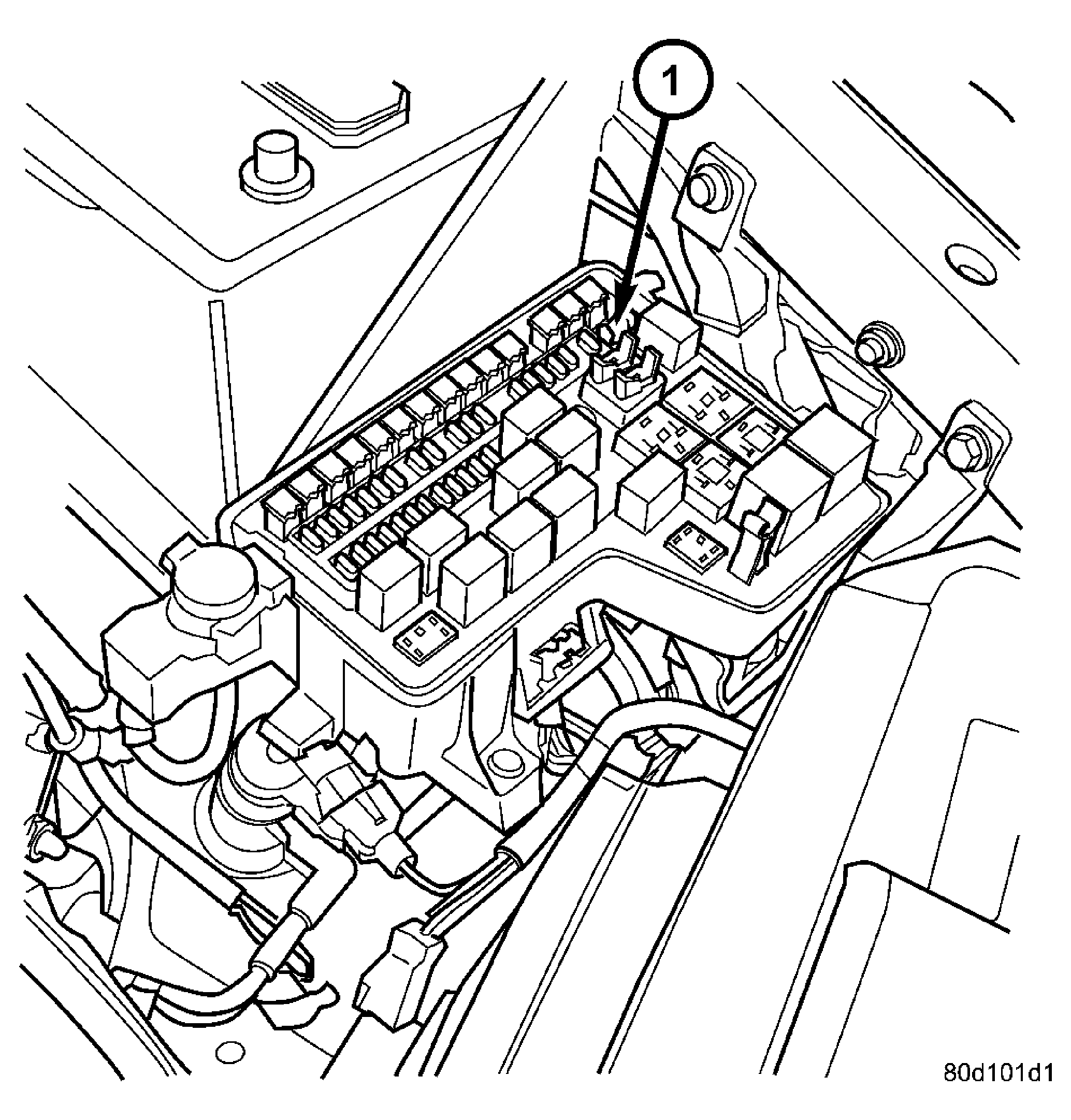

Fig 1: Locating IOD Fuse

Courtesy of DAIMLERCHRYSLER CORP.

All vehicles are equipped with an Ignition-Off Draw (IOD) fuse (1) that is disconnected within the Integrated Power Module (IPM) when the vehicle is shipped from the factory. Dealer personnel are to reconnect the IOD fuse in the IPM as part of the new vehicle preparation procedures and then disconnect it again until new vehicle delivery to the customer.

A laser printed fuse layout map is integral to the IPM cover to ensure proper fuse identification. The IOD fuse (1) is a 20 ampere mini blade-type fuse, located in fuse cavity # 51. The fuse is secured within a black molded plastic fuse holder and puller unit that serves both as a tool for disconnecting and reconnecting the fuse in the IPM cavity, and as a fuse holder that conveniently stores the fuse in the same cavity after it has been disconnected.
