Front Stabilizer Bar/Links

Inspect the front stabilizer bar and front stabilizer links for signs of damage such as deformation, cracks, or abnormal play. Check for proper stabilizer bar-to-link perpendicular connection. See Fig 1 .

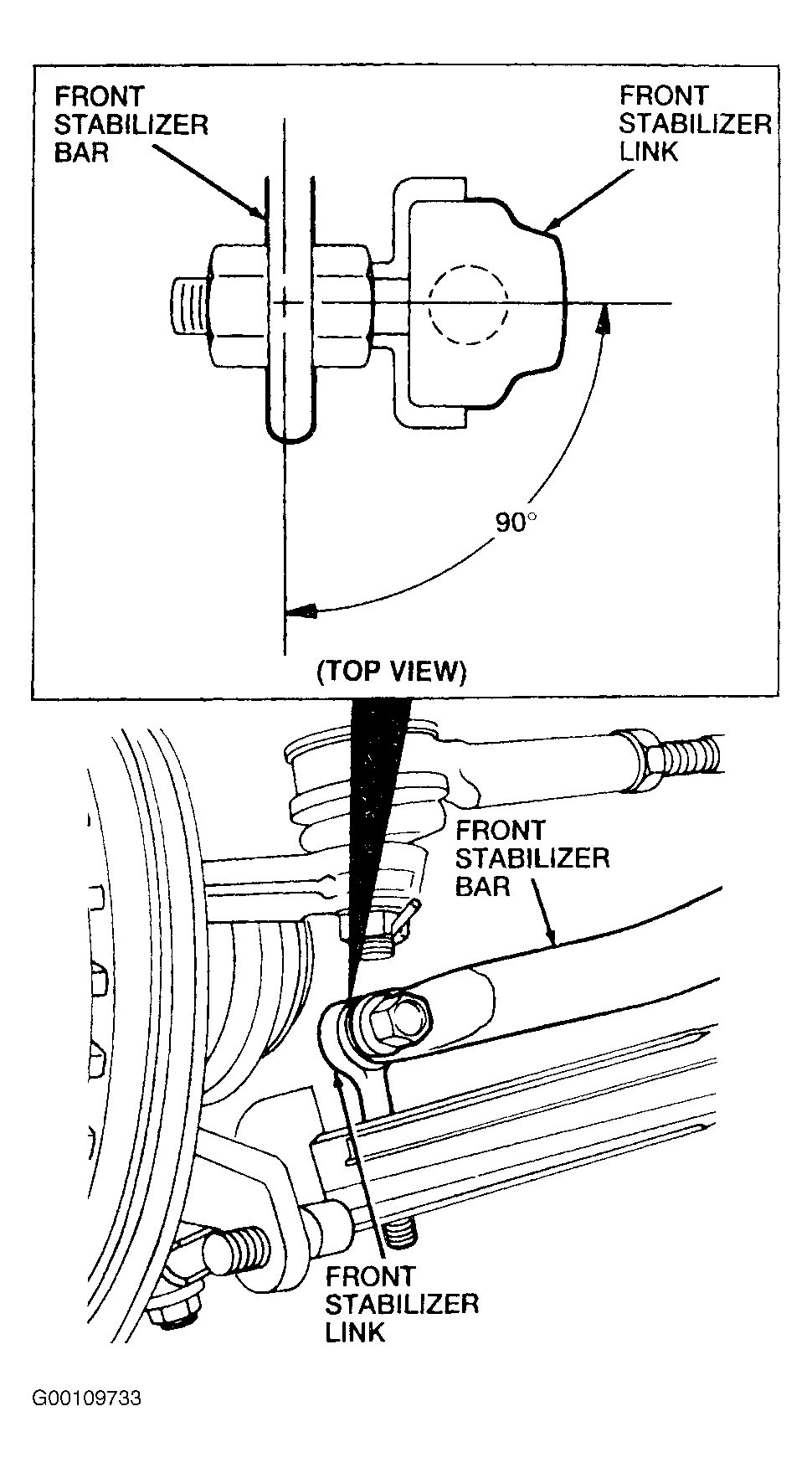

Fig 1: Front Stabilizer Bar/Links Location
G00109733Courtesy of FORD MOTOR CO.
