Door Glass Lateral

Make sure upper edge of door glass is seated under lip of weatherstrip when glass is fully raised. If adjustment is required, go to the next step. See Fig 1 .
Leave door glass in raised position.
Remove lower door trim panel. See DOOR TRIM PANEL under REMOVAL & INSTALLATION.
Loosen adjuster locknut at lower end of front door glass channel.
Turn adjuster screw in or out to obtain correct positioning of glass under weatherstrip
Tighten adjuster locknut to specification. See TORQUE SPECIFICATIONS . See Figure .
Raise and lower door glass to ensure glass is correctly adjusted.
Install lower door trim panel. See DOOR TRIM PANEL under REMOVAL & INSTALLATION.

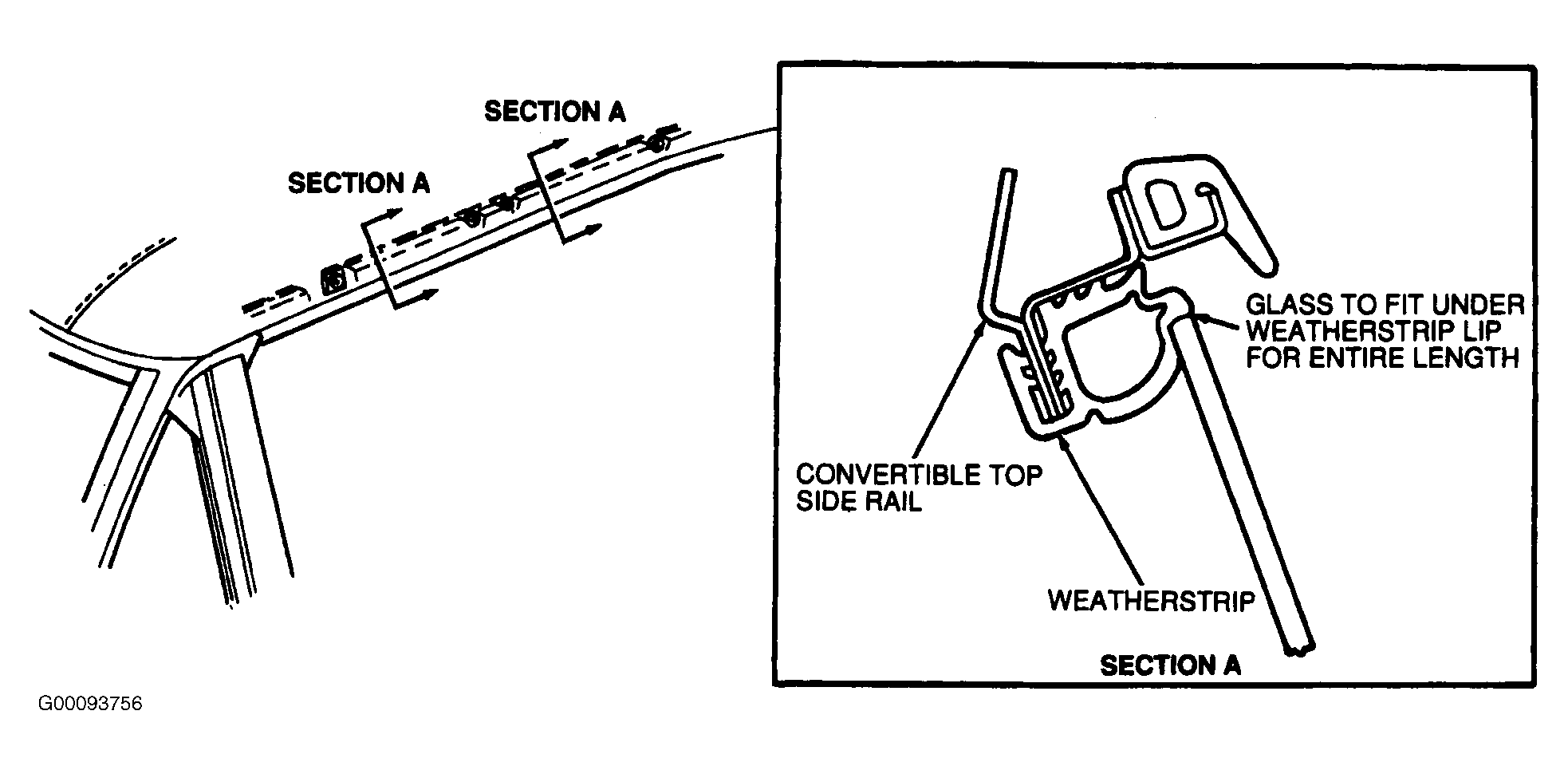

Fig 1: Adjusting The Glass To The Weatherstrip

Courtesy of FORD MOTOR CO.
