Wiring Diagrams

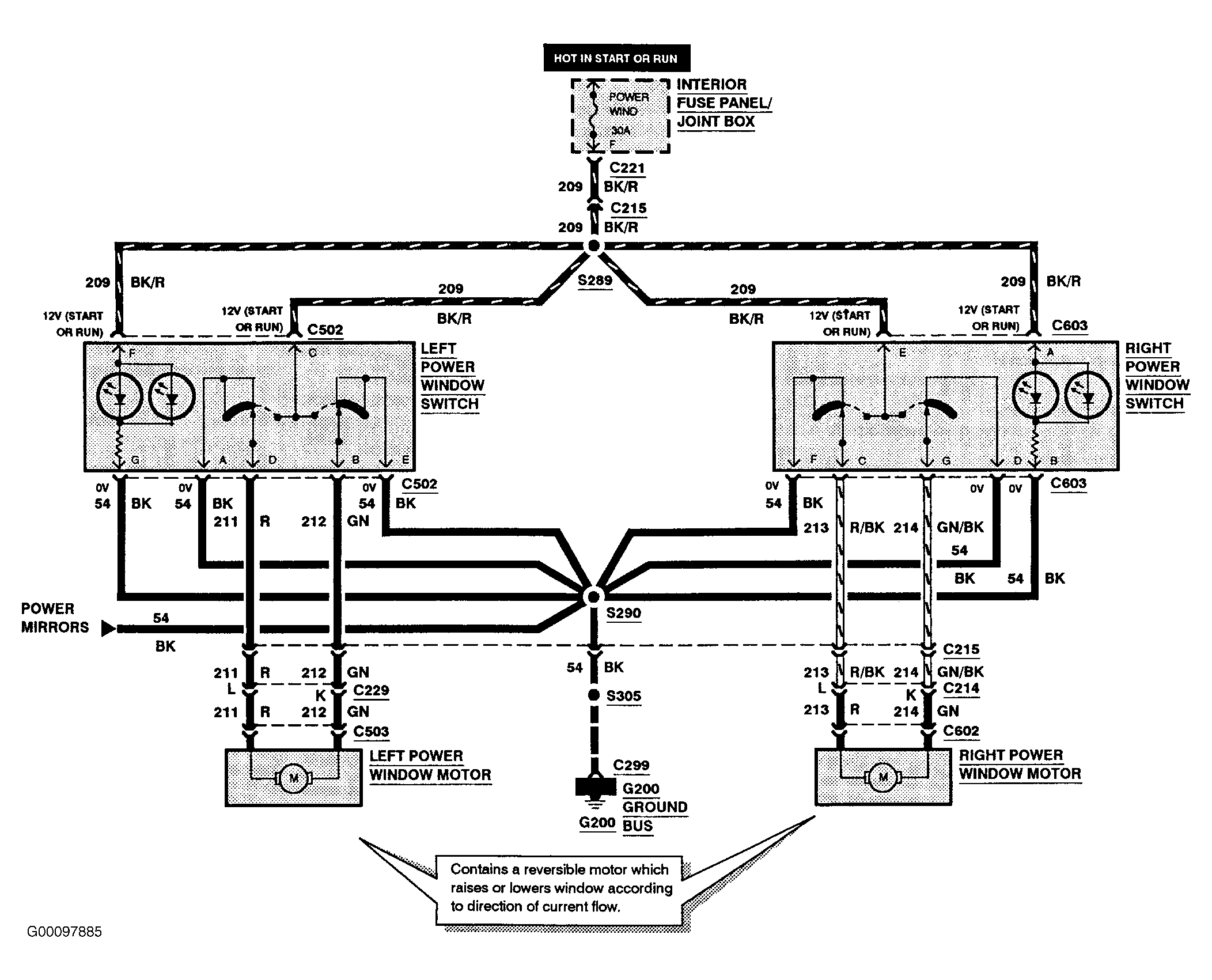

Fig 1: Power Window Wiring Diagram (Capri)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
