Center Console Rear: Installation

1. Connect wiring harness and position rear console in front console opening. See Fig 2 .
2. Install front screws in rear console.
3. Slide front seats completely forward.
4. Install screws in the back of the rear console. See Fig 1 .
5. Release parking brake lever.

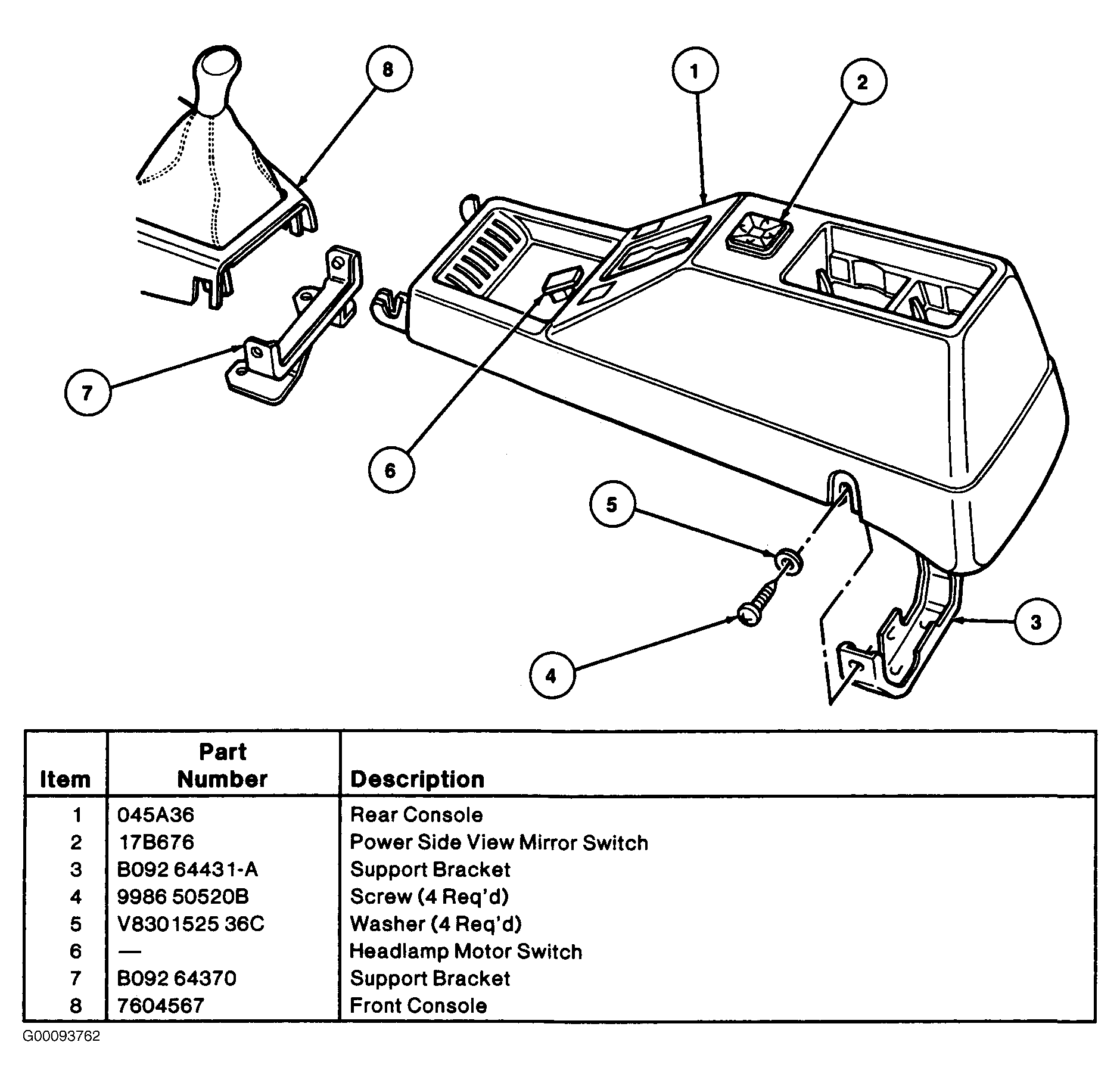

Fig 1: Replacing Center Console

Courtesy of FORD MOTOR CO.

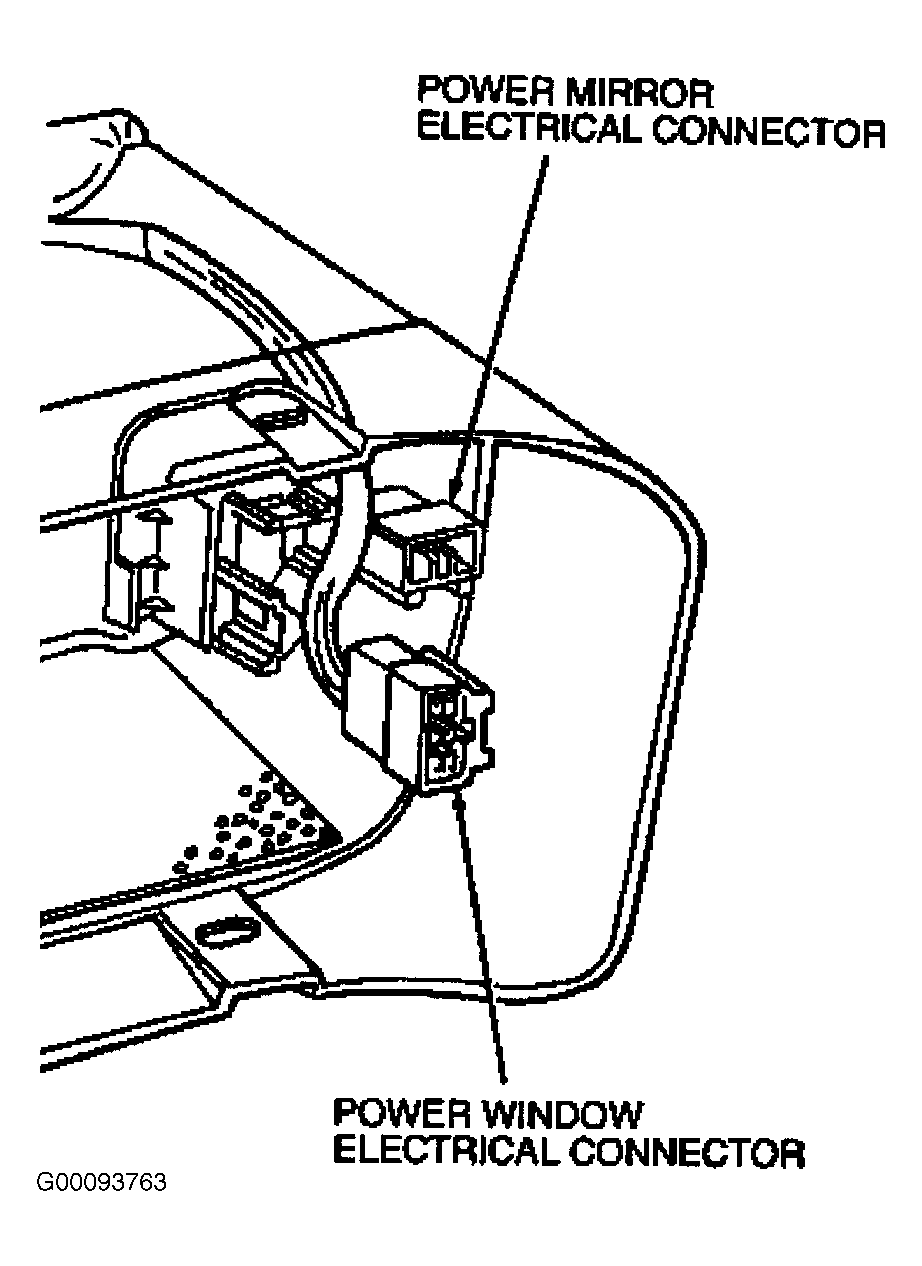

Fig 2: Identifying Connectors

Courtesy of FORD MOTOR CO.
