Electronic Automatic Temperature Control Module: Removal

1. Remove battery ground cable.
2. Remove the instrument panel upper molding. See Fig 1 .
3. Remove four screws from the A/C control and pull the control out of the instrument panel.
4. Remove the three electrical connectors and the vacuum hose harness from the A/C control.

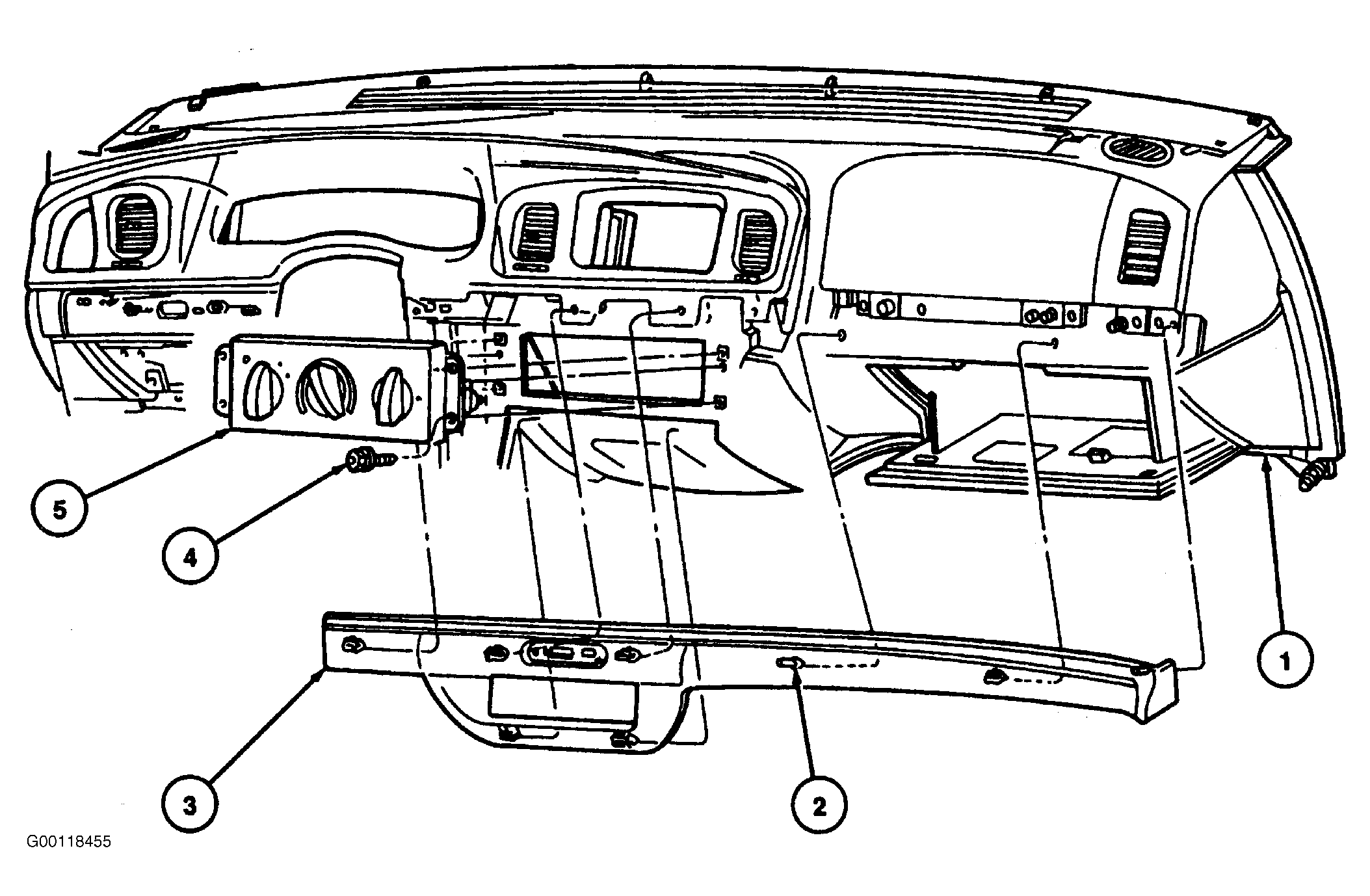

Fig 1: Removing Electronic Automatic Temperature Control Module

Courtesy of FORD MOTOR CO.
