Removal & Installation

Disconnect the battery ground cable.
Remove the left hand cowl side trim panel.
Remove the two timer module bolts. See Fig 1 .
Disconnect the timer module electrical connector and remove the timer module from the vehicle. See Fig 2 .
To install, reverse removal procedure.

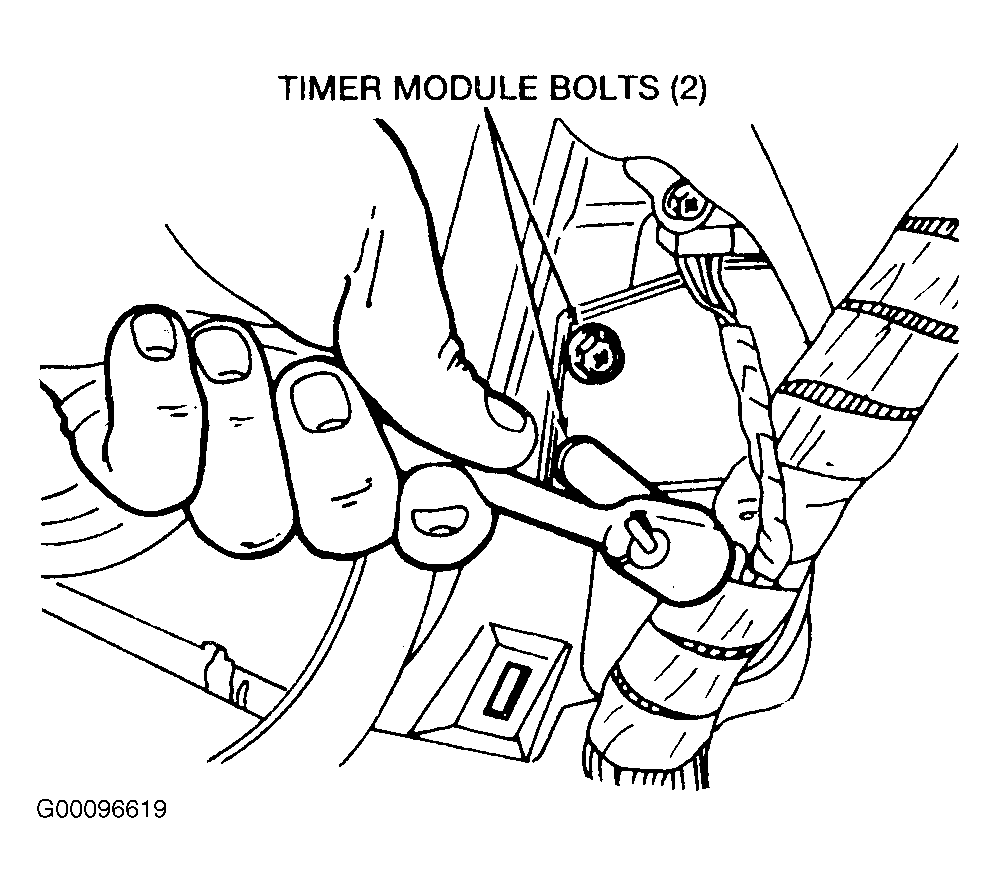

Fig 1: Removing Timer Module

Courtesy of FORD MOTOR CO.

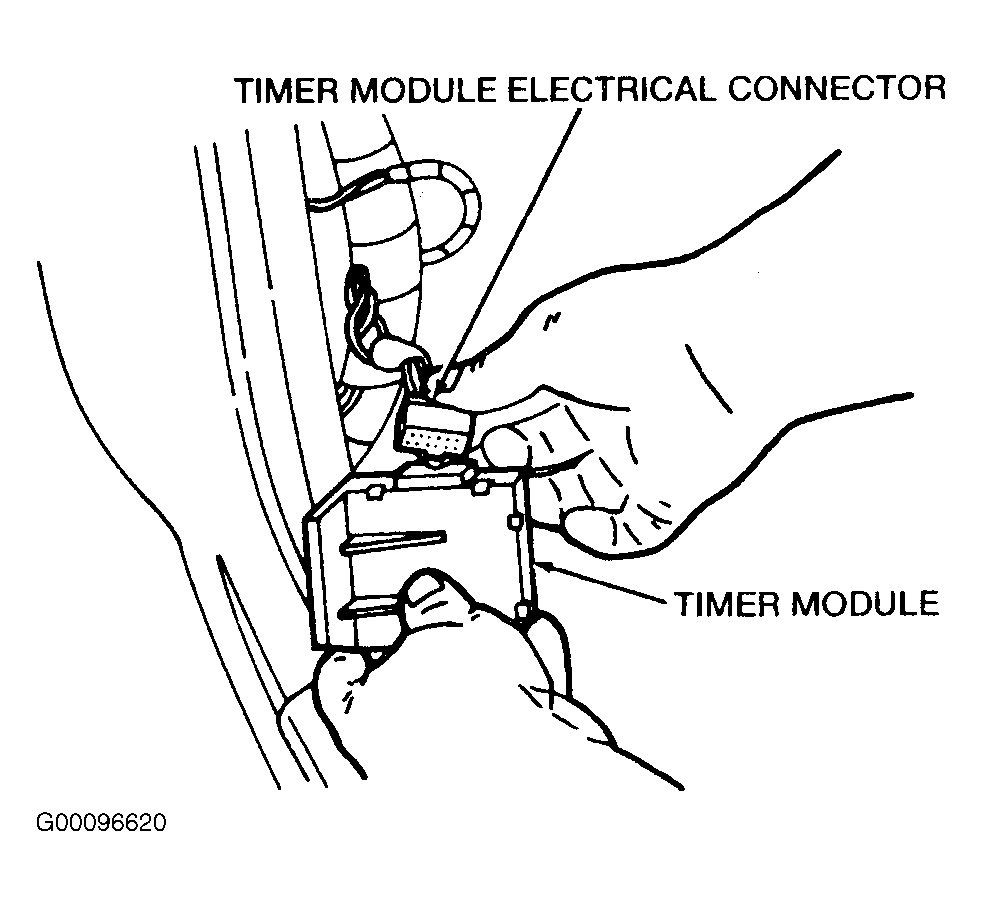

Fig 2: Removing Timer Module Electrical Connector

Courtesy of FORD MOTOR CO.
