Rear Quarter Glass

  1. Remove rear quarter trim. See REAR QUARTER TRIM  under REMOVAL & INSTALLATION.
  2. Loosen the two power rear quarter glass latch regulator bolts. See Fig 1.
  3. Loosen the two rear quarter glass hinge nuts. See Fig 2.
  4. Adjust the rear quarter glass. See Fig 3.
  5. While holding the rear quarter glass have an assistant tighten the two rear quarter glass hinge nuts to 2.8-3.3 INCH Lbs. (3.8-4.5 N. m).
  6. Tighten the two rear quarter glass latch bolts to 2.8-3.3 INCH Lbs. (3.8-4.5 N. m).
  7. Tighten the power window rear quarter glass latch regulator bolts to 2.8-3.3 INCH Lbs. (3.8-4.5 N. m).
  8. Install the rear quarter trim. See REAR QUARTER TRIM  under REMOVAL & INSTALLATION.
Fig 1: Locating Rear Quarter Glass Regulator Bolts
G00097654Courtesy of FORD MOTOR CO.

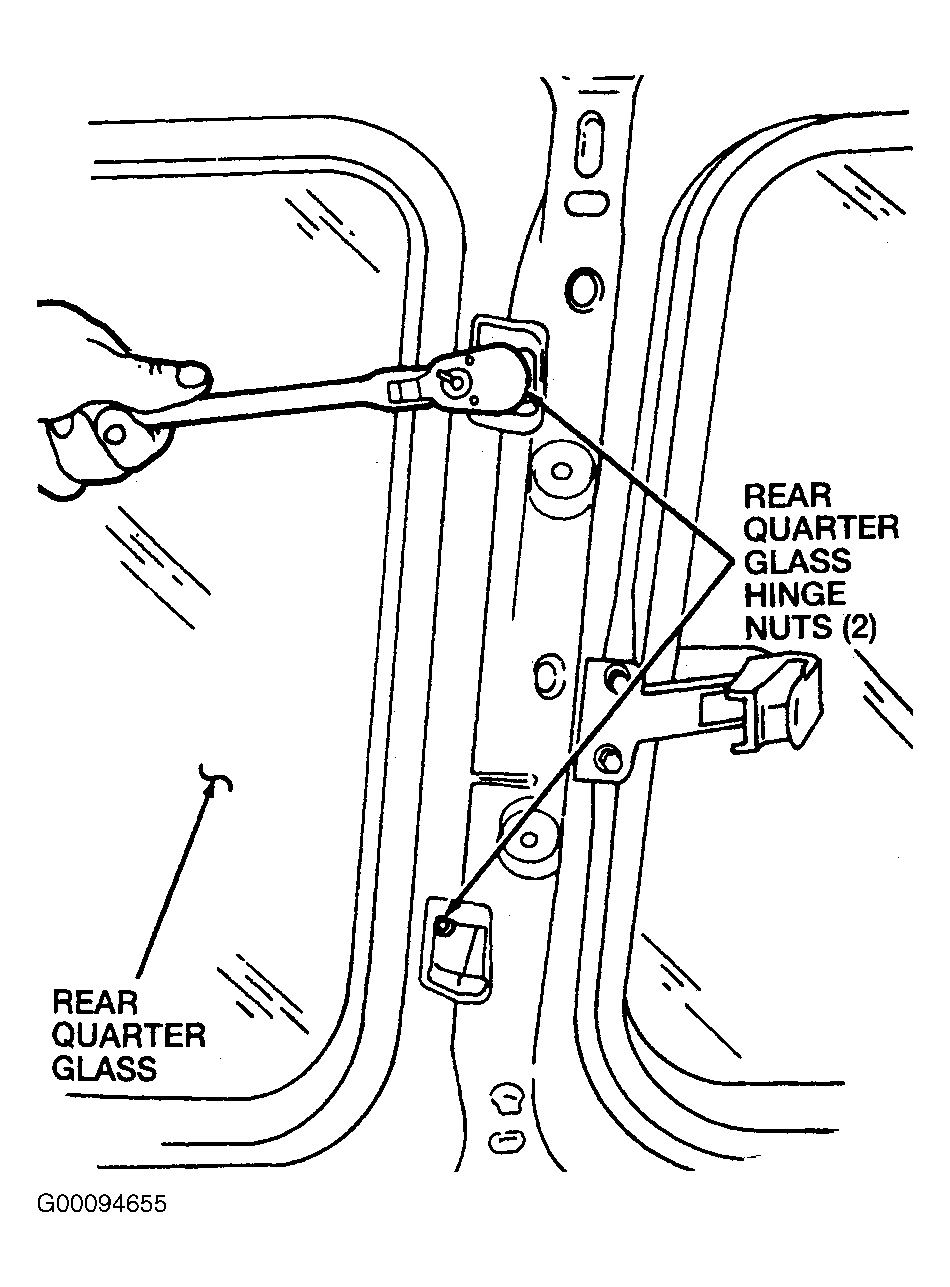

Fig 2: Locating Rear Quarter Glass Hinge Nuts
G00097655Courtesy of FORD MOTOR CO.
Fig 3: Adjusting Rear Quarter Glass
G00097656Courtesy of FORD MOTOR CO.
