Component Locations

COMPONENT LOCATIONS

Component Location
Anti-Theft Relay In Engine Compartment Relay Box. See Fig 1 .
Engine Compartment Relay Box Right Front Corner Of Engine Compartment. See Fig 1
Ground G200 Left Kick Panel. See Fig 4 .
Inhibit Relay In Engine Compartment Fuse/Relay Panel. See Fig 2 .
In-Line Circuit Breaker No. 1 Behind Left Side Of Instrument Panel. See Fig 5 .
SEC Fuse (7.5A) In Engine Compartment Fuse/Relay Panel. See Fig 2 .
Sliding Door Control Unit In Sliding Door

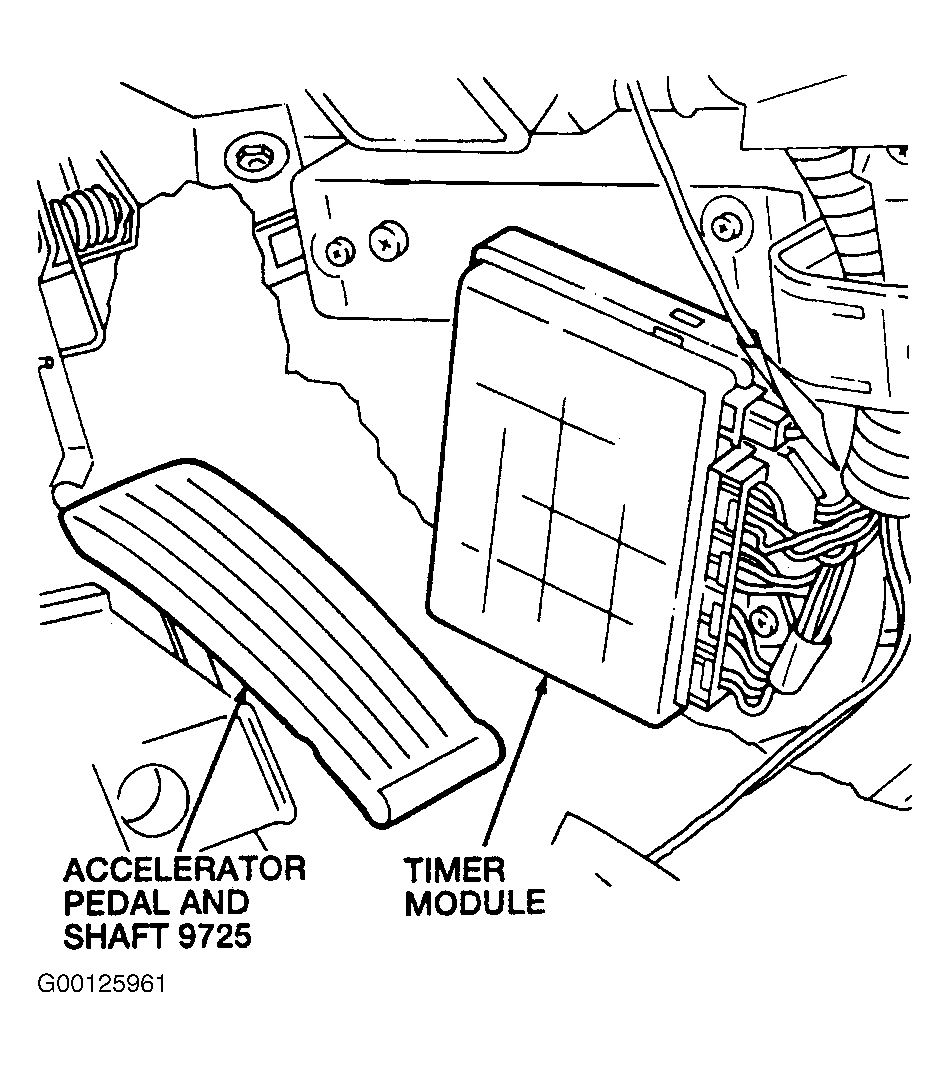

Timer Module Behind Center Of Instrument Panel. See Figure .
Transmission Range Switch Left Side Of Engine, Front Of Transaxle. See Fig 1 .

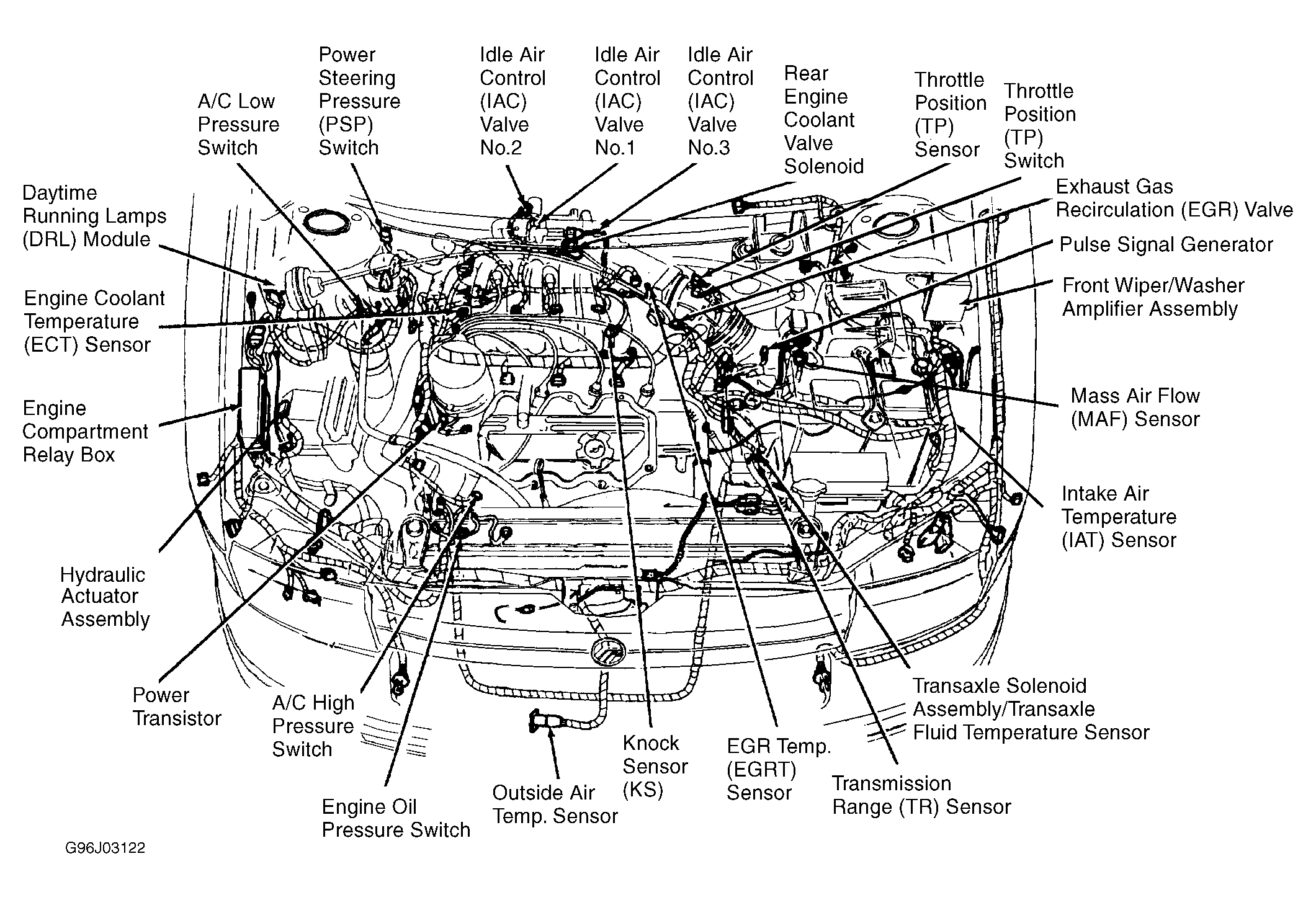

Fig 1: Locating Engine Compartment Relay Box & Transmission Range Sensor
G96B03122

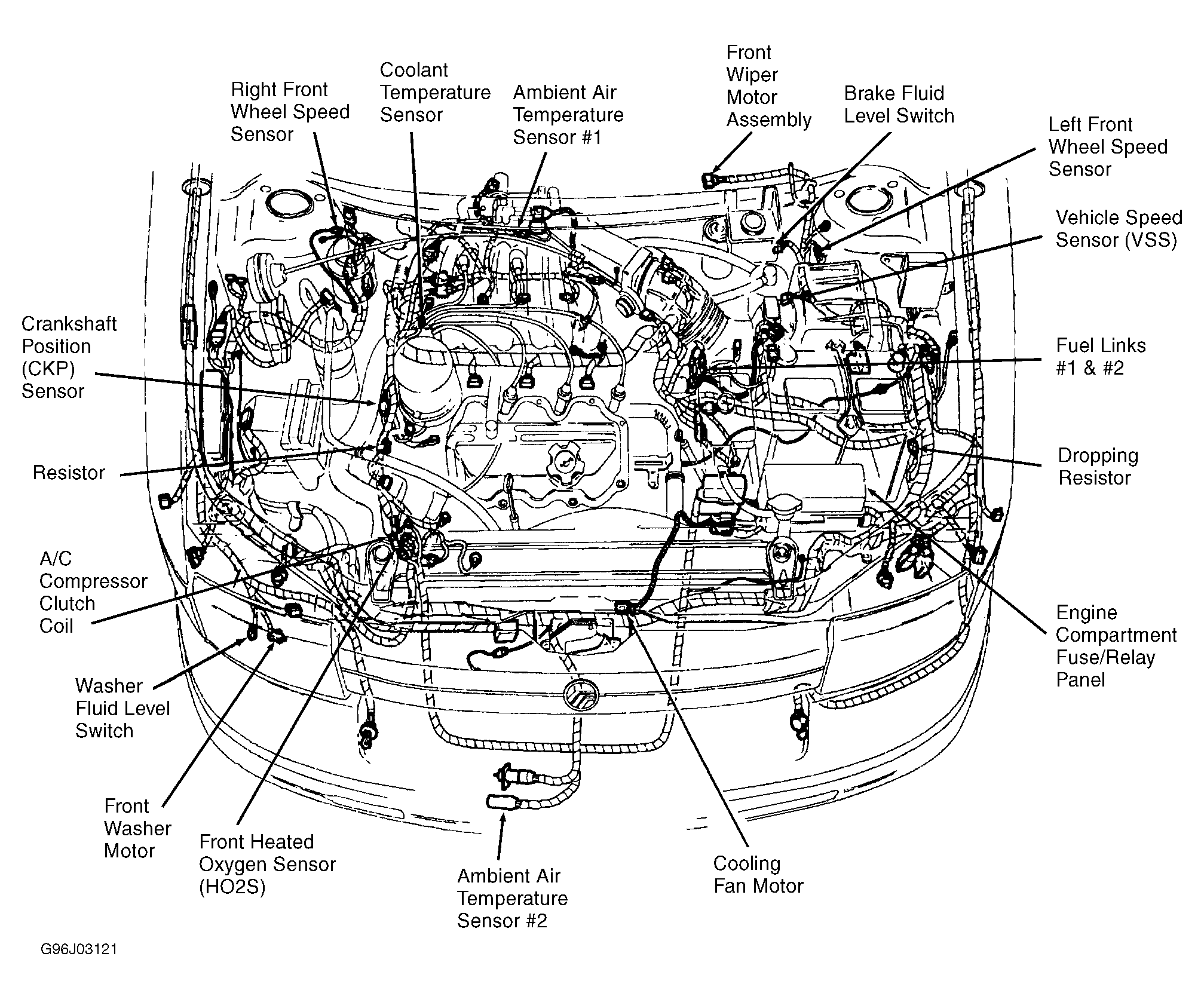

Fig 2: Locating Engine Compartment Fuse/Relay Panel
G96J03121

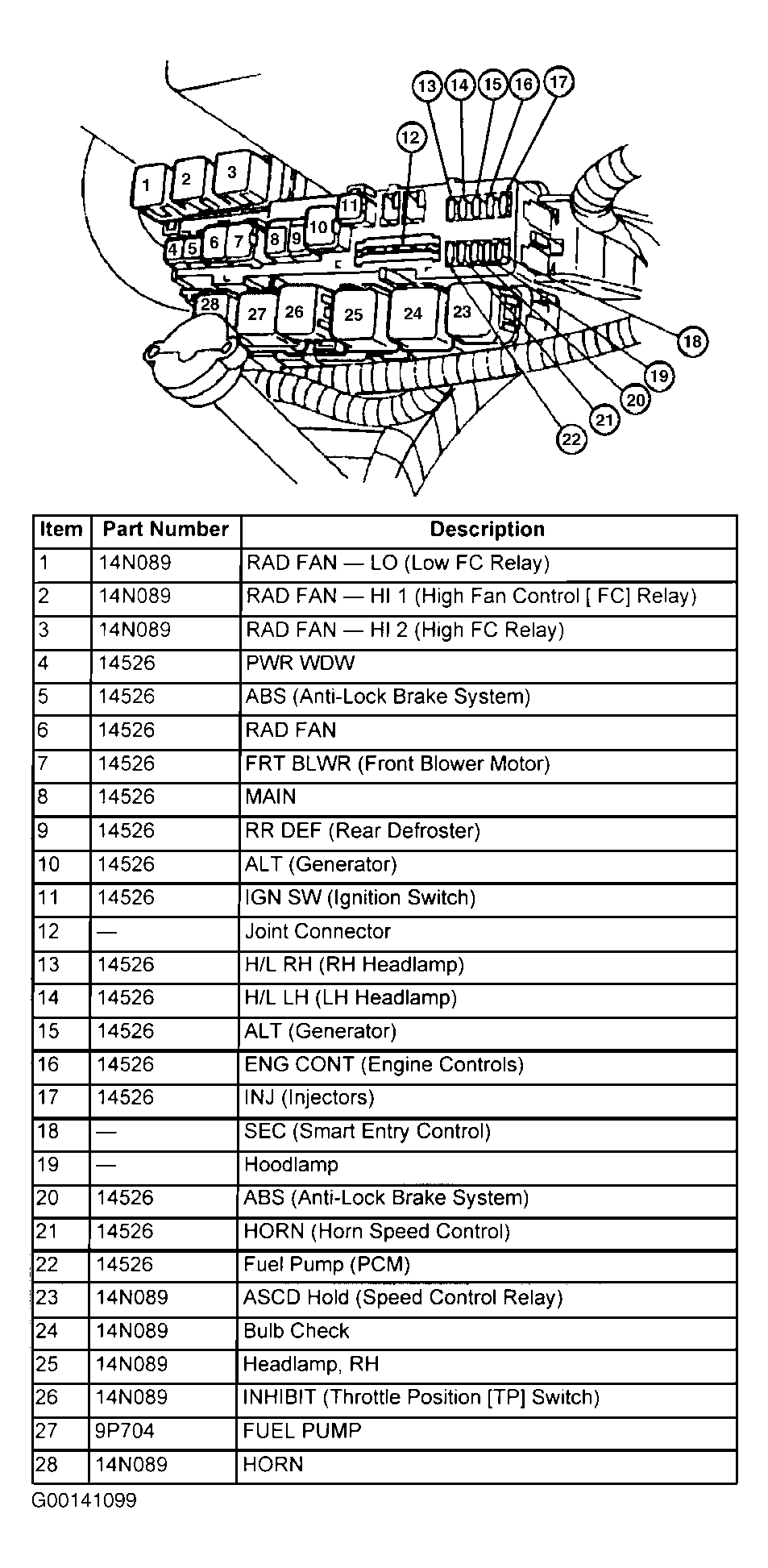

Fig 3: Identifying Engine Compartment Fuse/Relay Panel Components
G00141099Courtesy of FORD MOTOR CO.
Fig 4: Locating Ground G200 & G203
G00094667Courtesy of FORD MOTOR CO.

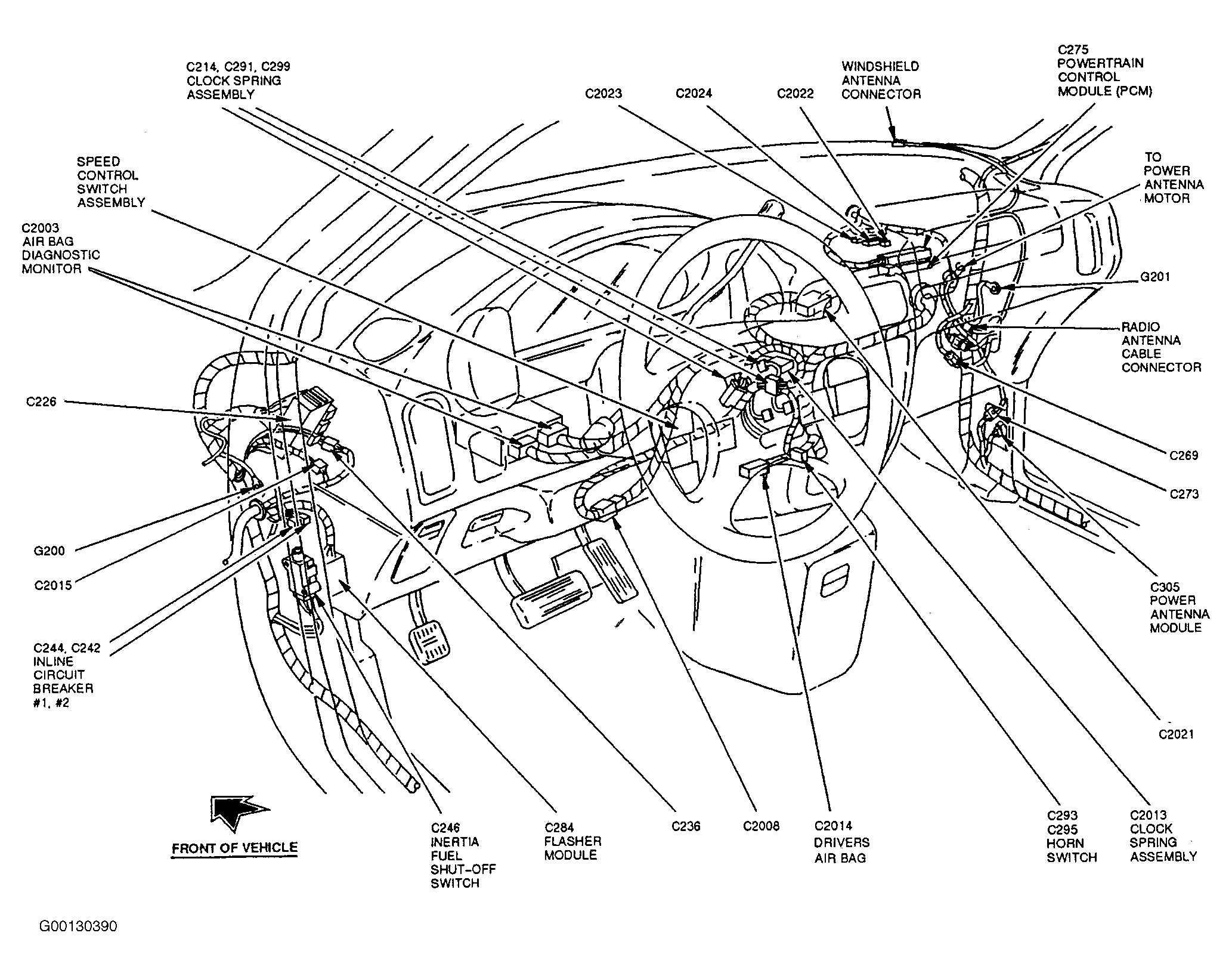

Fig 5: Locating In-Line Circuit Breaker No. 1
G00130390Courtesy of FORD MOTOR CO.

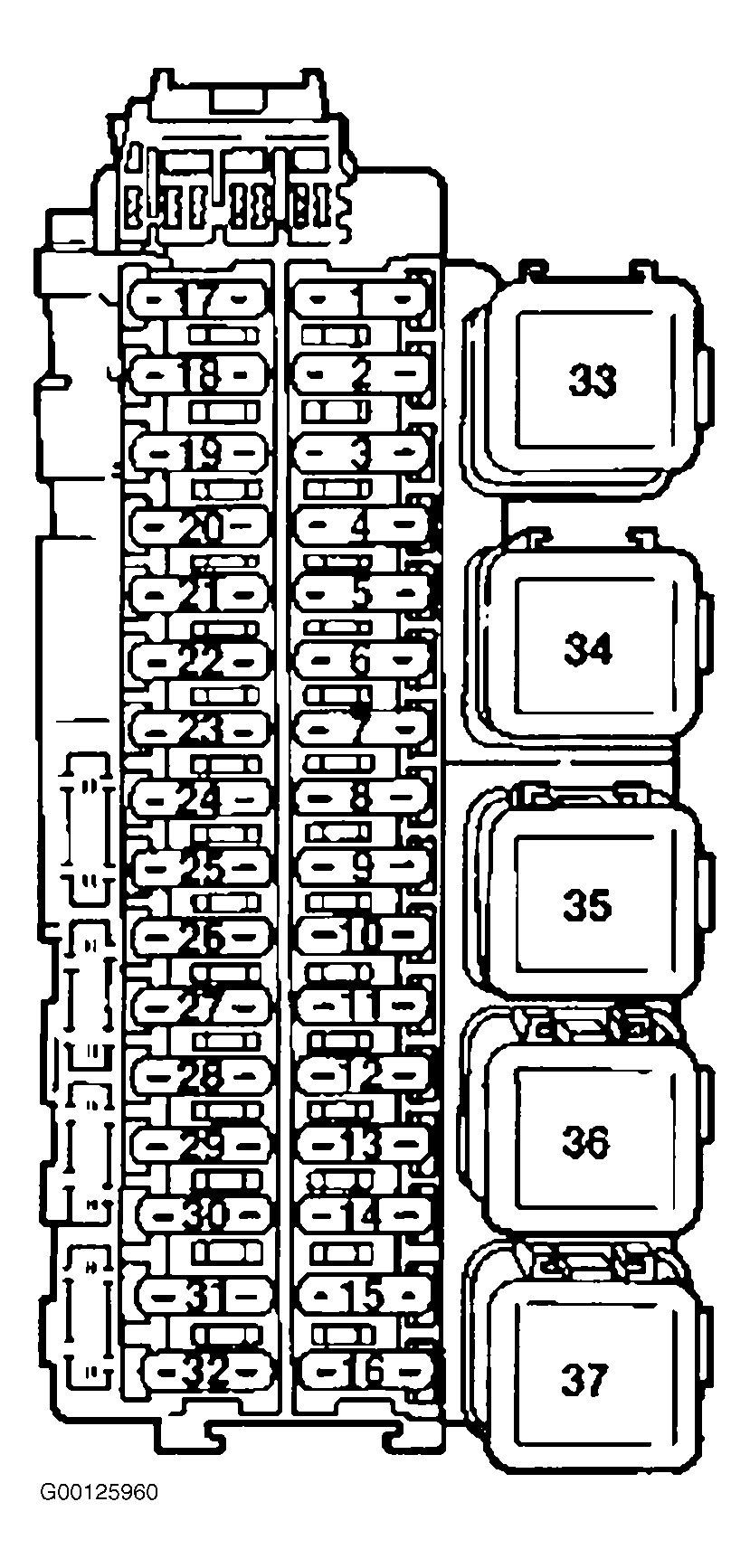

Fig 6: Identifying Interior Fuse Junction Panel Components
G00125960Courtesy of FORD MOTOR CO.

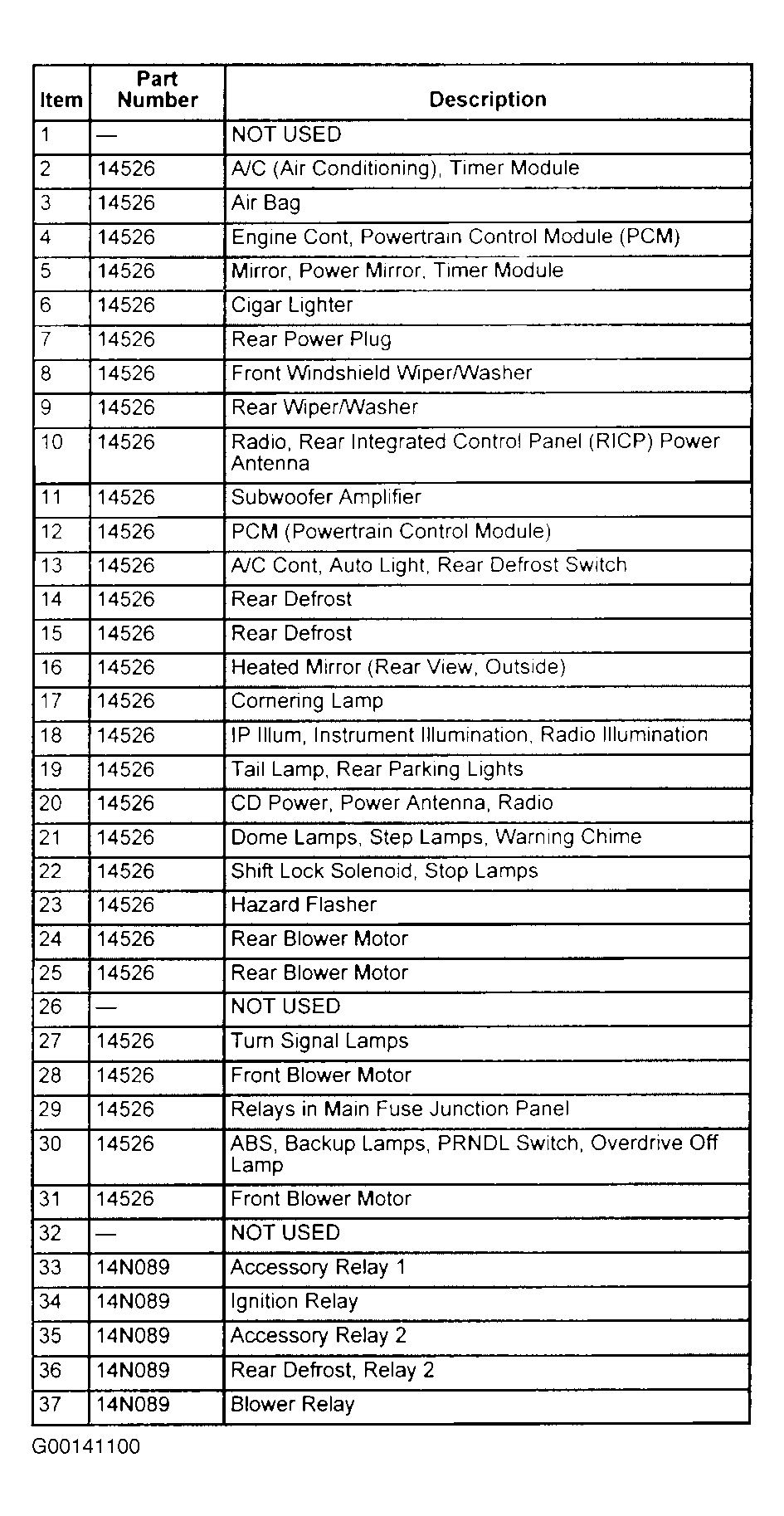

Fig 7: Legend For Interior Fuse Junction Panel Components
G00141100Courtesy of FORD MOTOR CO.
