Wiring Diagrams

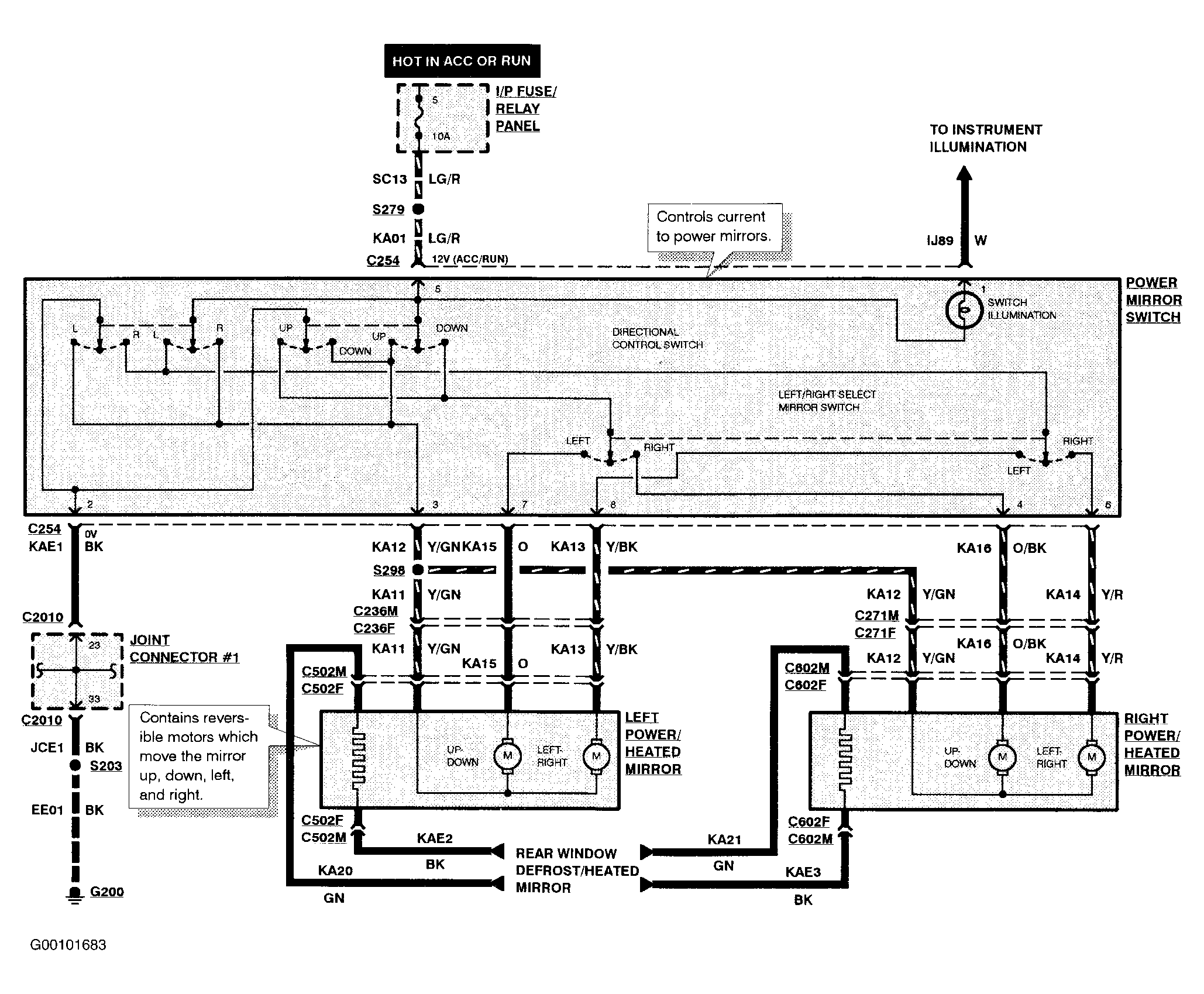

Fig 1: Villager Wiring Diagram (1 Of 2)

G00101683

Courtesy of FORD MOTOR CO.

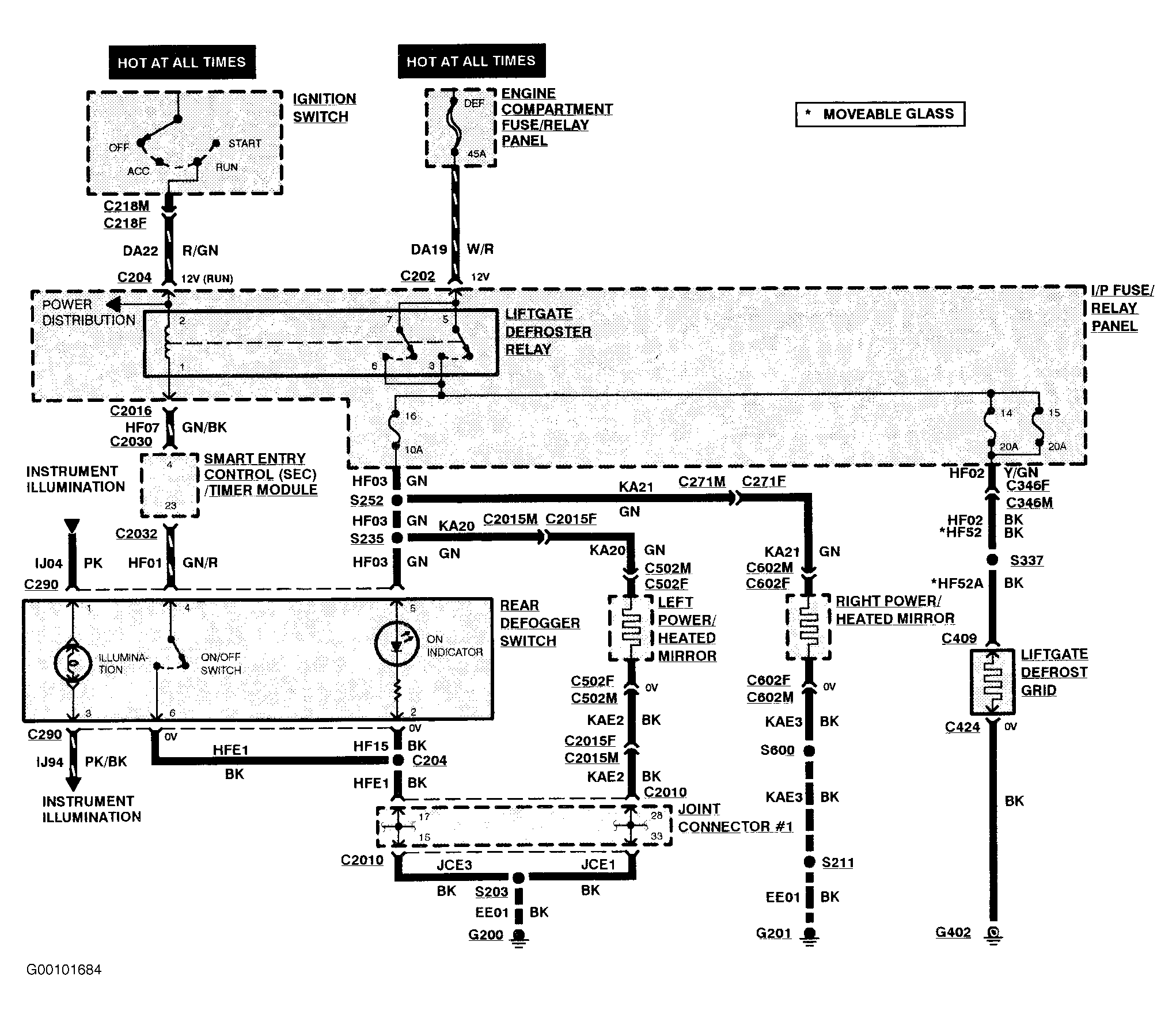

Fig 2: Villager Wiring Diagram (2 Of 2)

G00101684

Courtesy of FORD MOTOR CO.

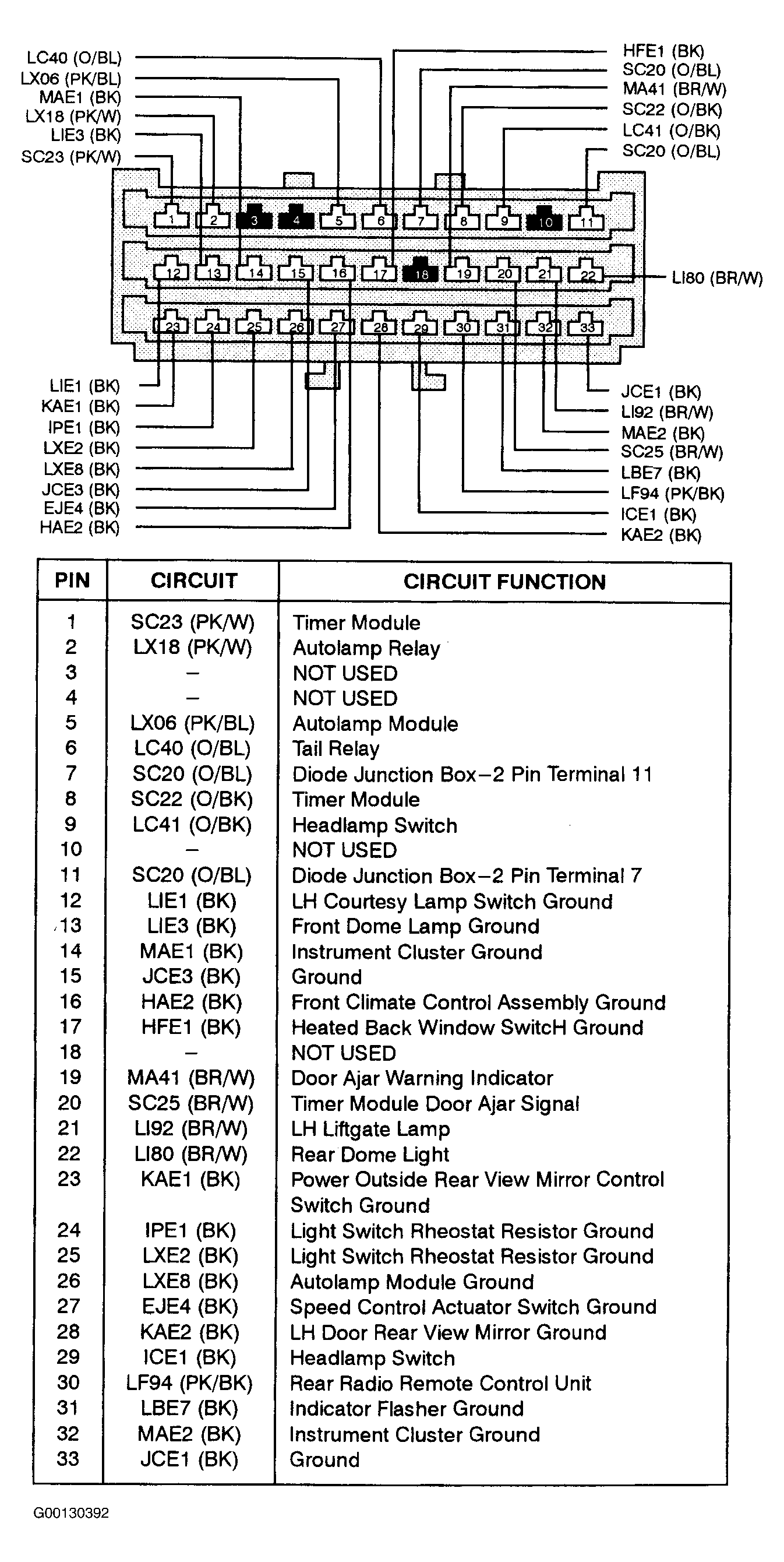

Fig 3: Joint Connector No. 1 Terminal Identification

G00130392

Courtesy of FORD MOTOR CO.
