Removal & Installation

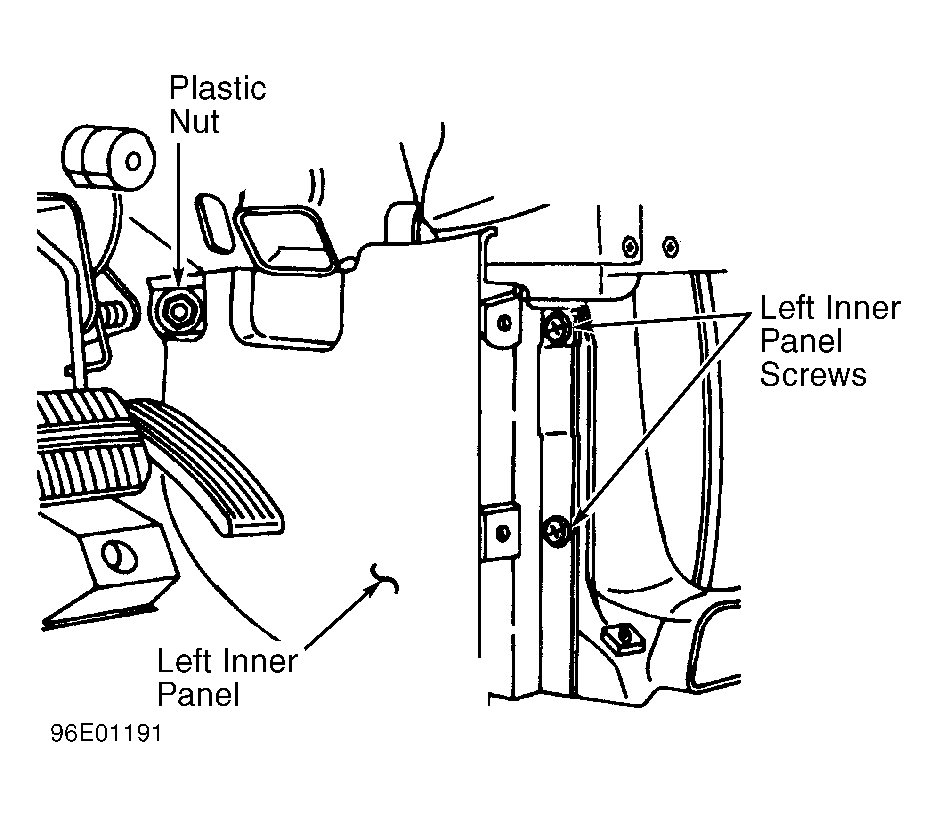

Disconnect negative battery cable. Remove left inner panel or CD changer cover (if equipped). See Fig 1 . Remove timer module wiring harness connector. Remove 3 mounting screws. Remove timer module. To install, reverse removal procedure.
