Central Junction Box

NOTE: Central junction box may also be referred to as passenger compartment fuse panel. Central junction box is located under driver's side of instrument panel.

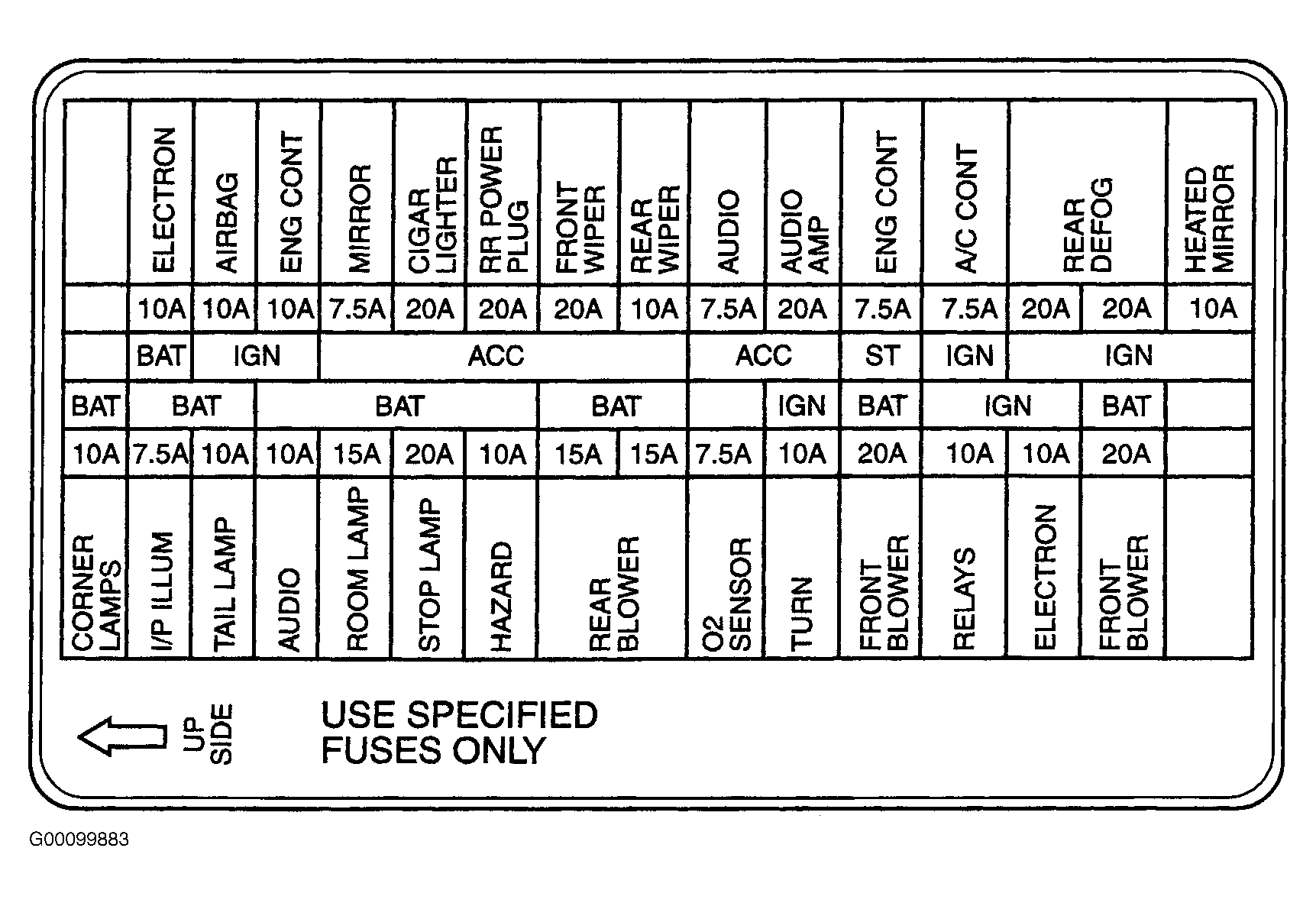

Fig 1: Identifying Central Junction Box Fuses

Courtesy of FORD MOTOR CO.

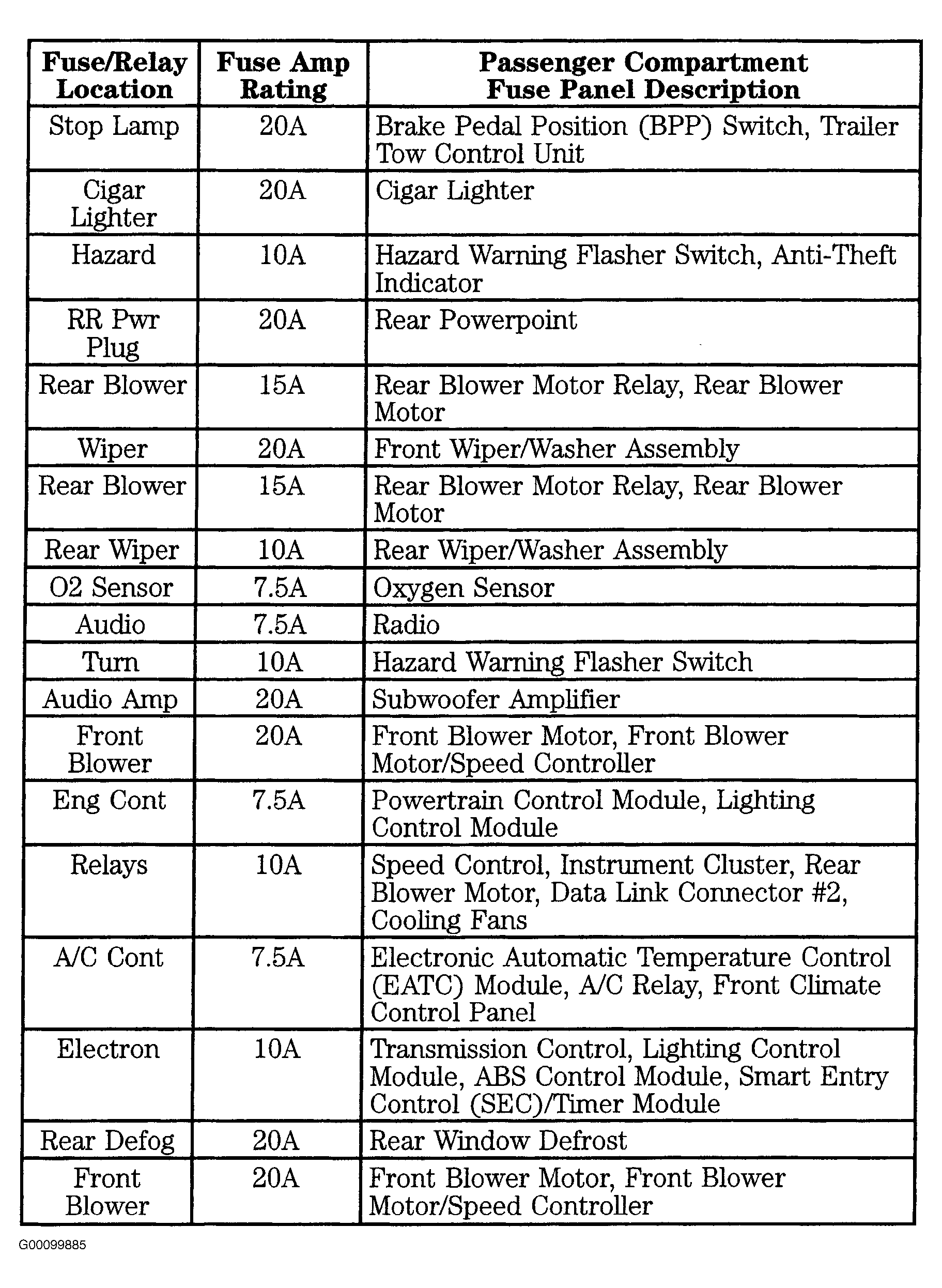

Fig 2: Central Junction Box Legend (1 Of 3)

Courtesy of FORD MOTOR CO.

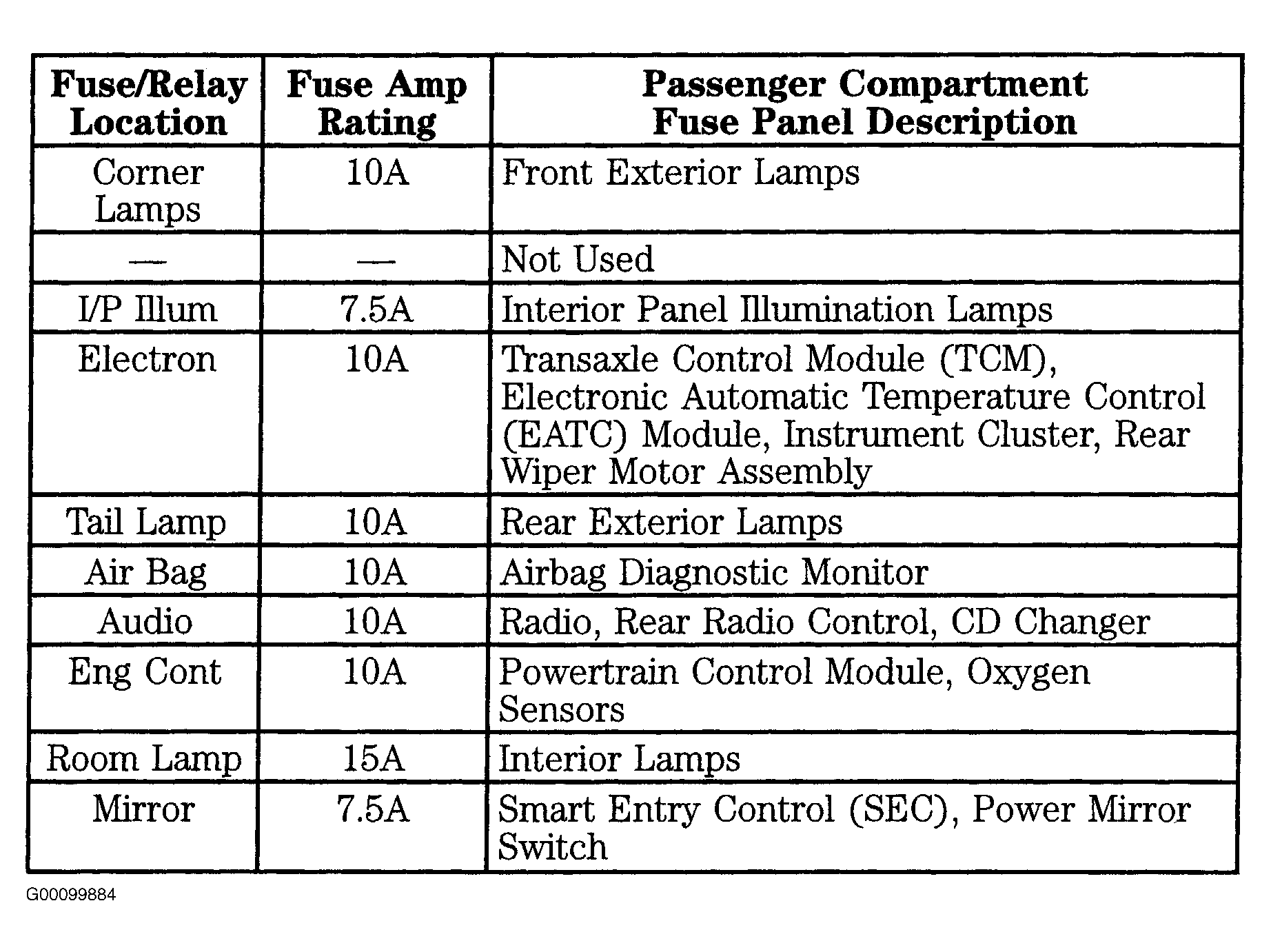

Fig 3: Central Junction Box Legend (2 Of 3)

Courtesy of FORD MOTOR CO.

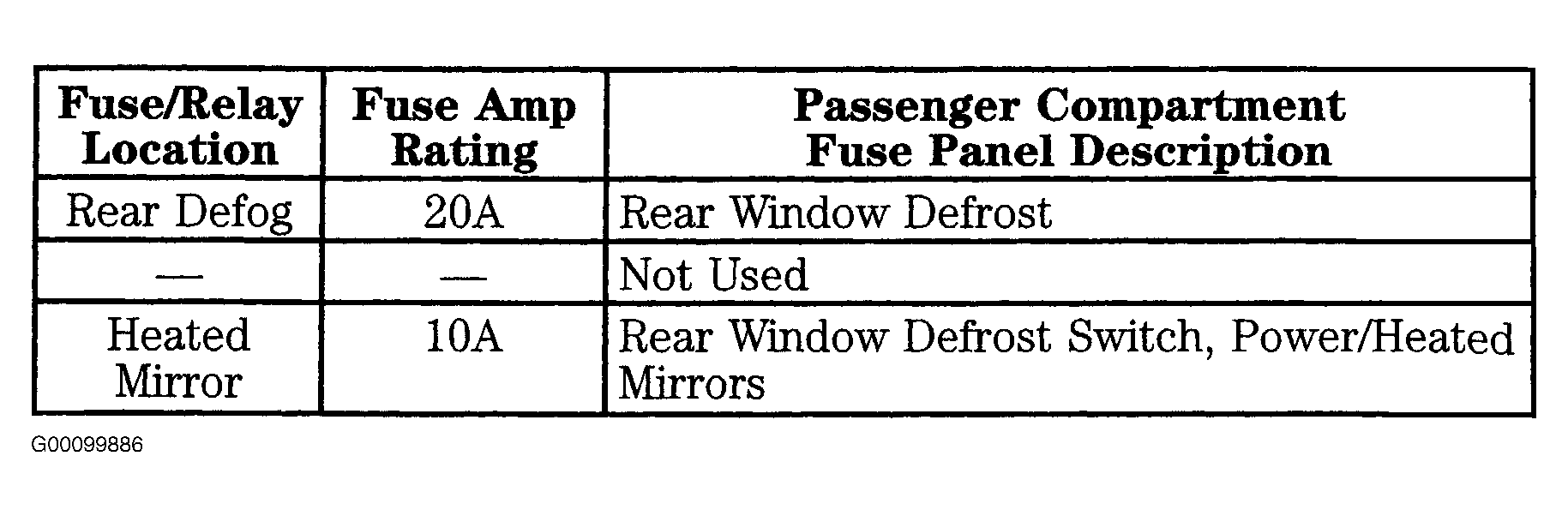

Fig 4: Central Junction Box Legend (3 Of 3)

Courtesy of FORD MOTOR CO.
