Engine Compartment Relay Box

Engine compartment relay box is located in driver's front corner of engine compartment. See Figure and Figure .

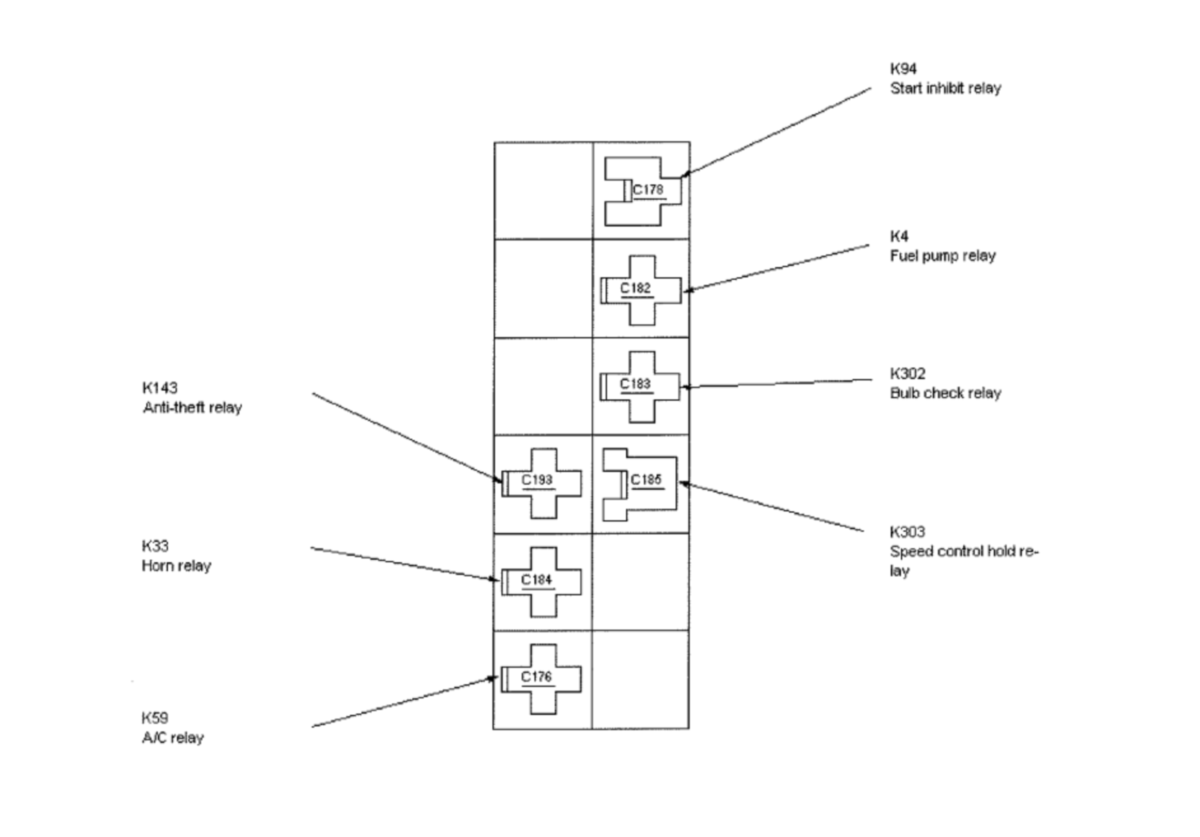

Fig 1: Identifying Engine Compartment Relay Box Components

Courtesy of FORD MOTOR CO.
