Light Switch

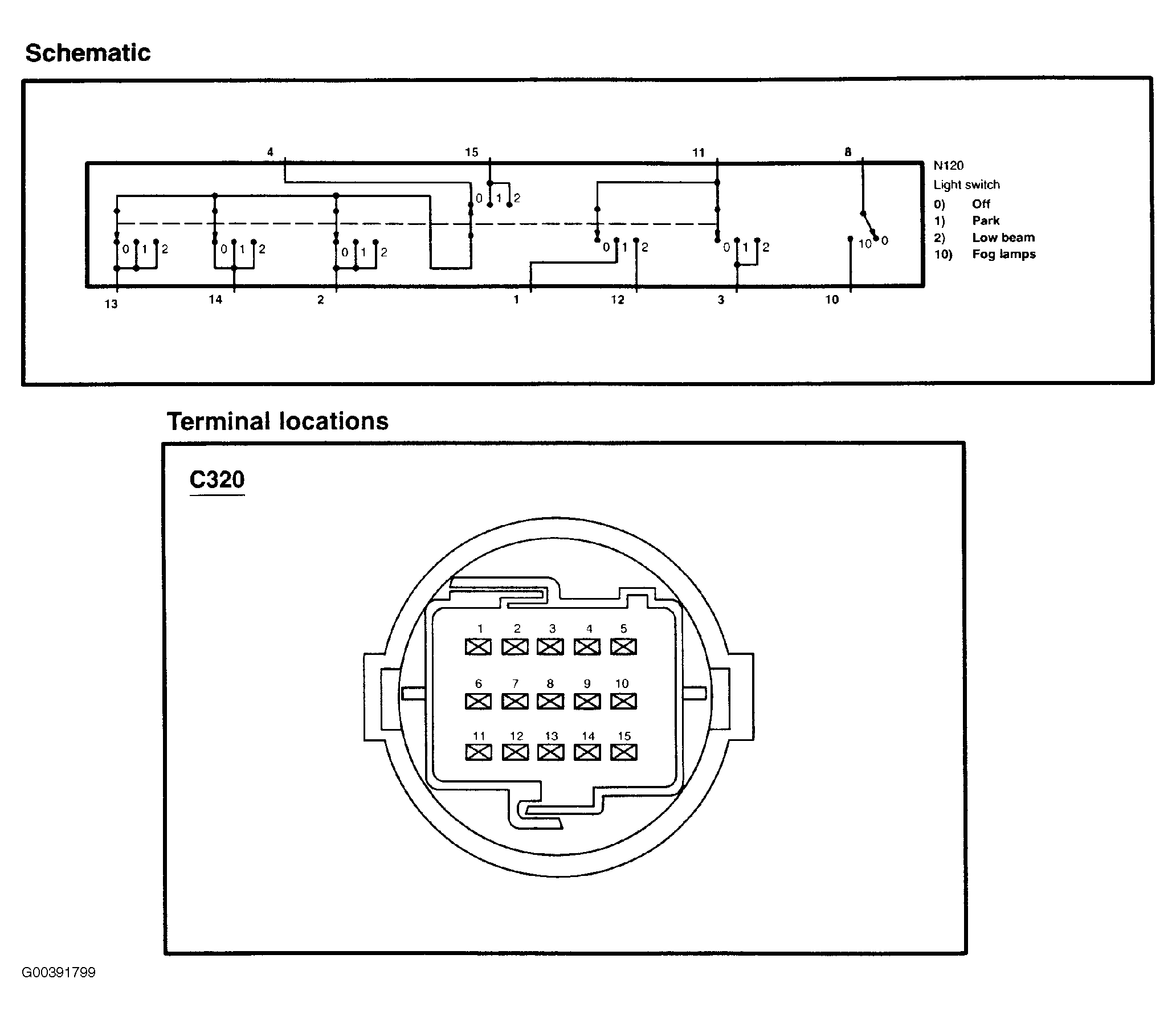

Fig 1: Testing Light Switch (1 Of 2)
G00391799Courtesy of FORD MOTOR CO.

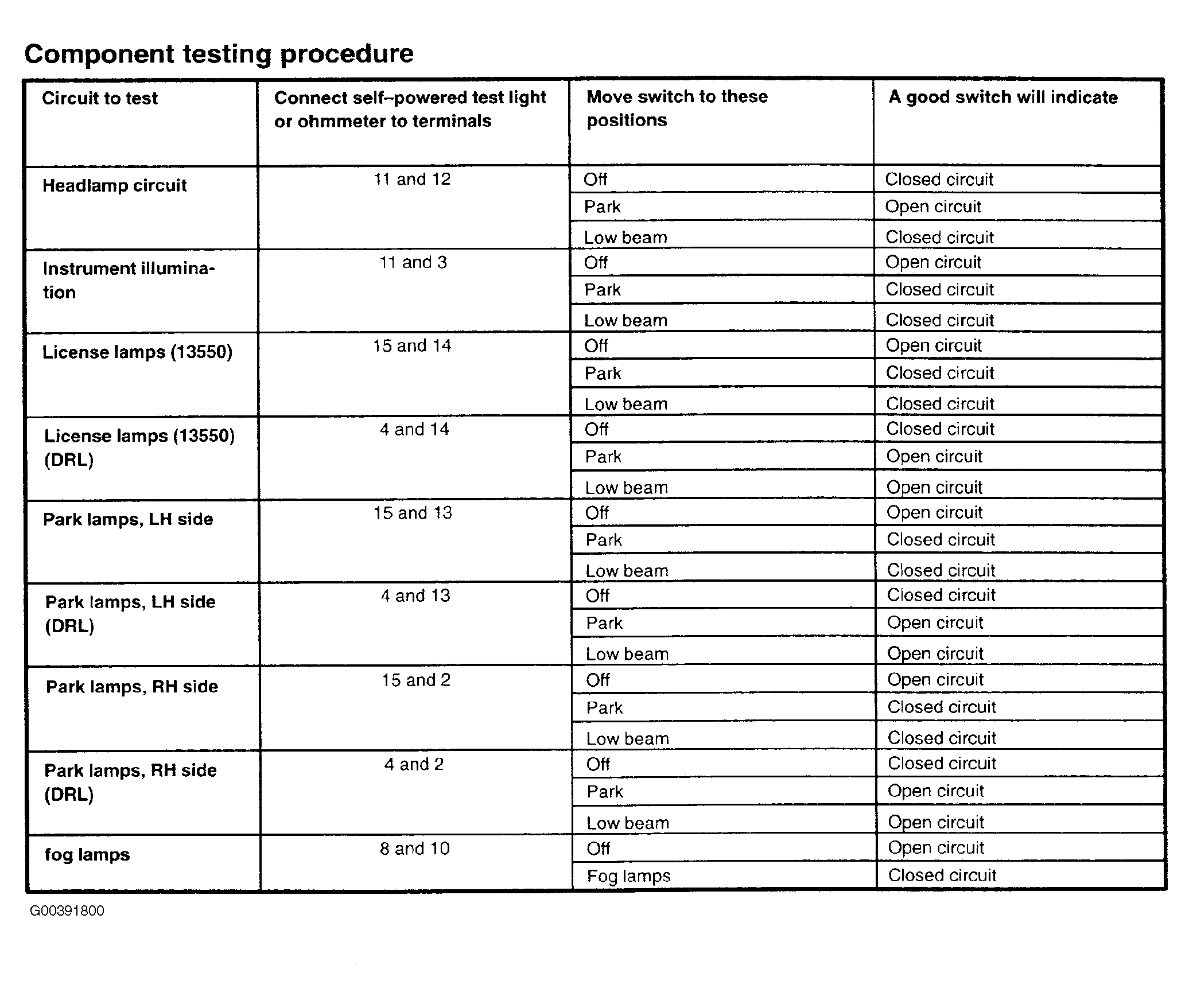

Fig 2: Testing Light Switch (2 Of 2)
G00391800Courtesy of FORD MOTOR CO.
