Power Window Switch

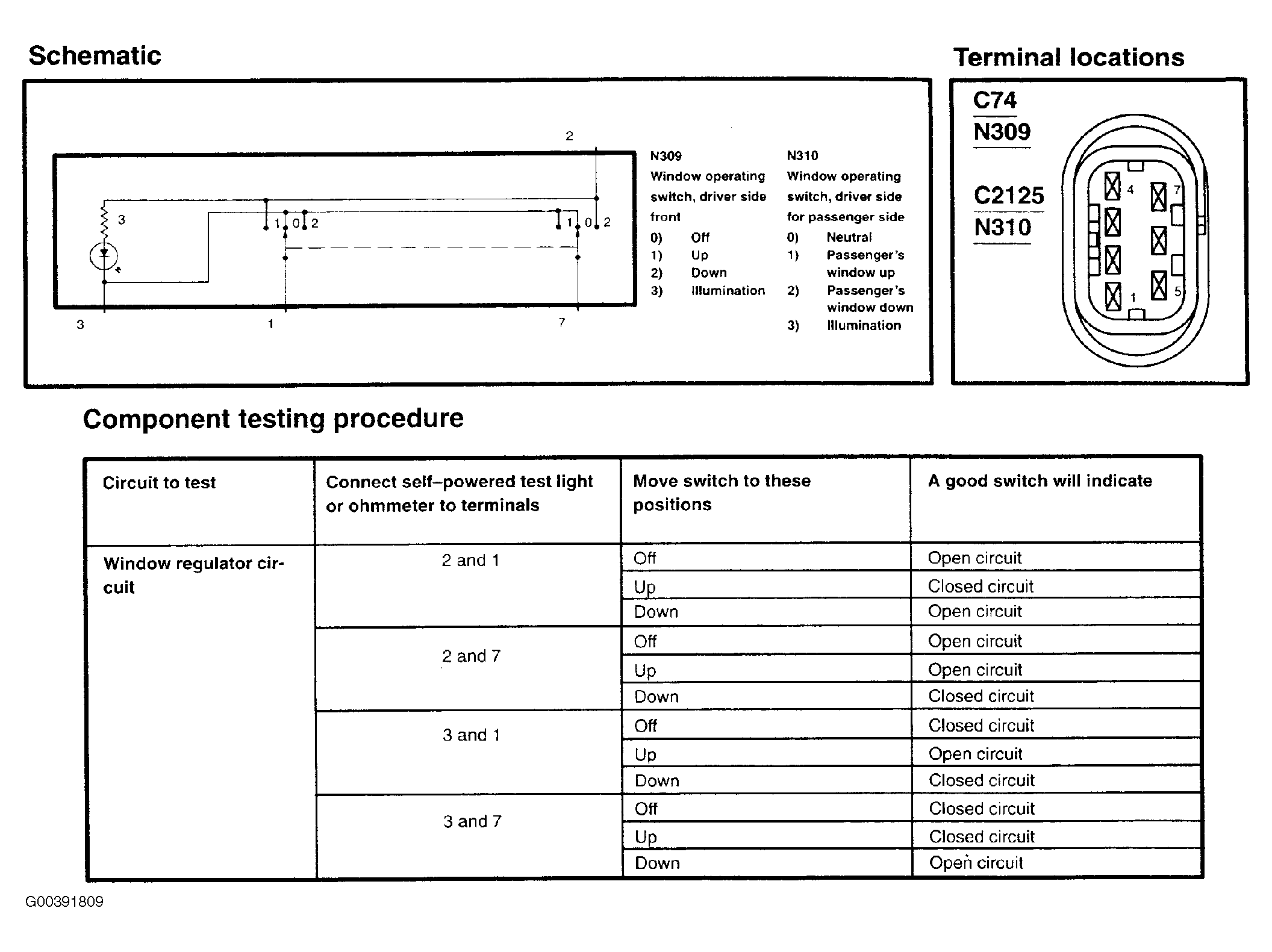

Fig 1: Testing Power Window Switch (Driver Side)
G00391809Courtesy of FORD MOTOR CO.

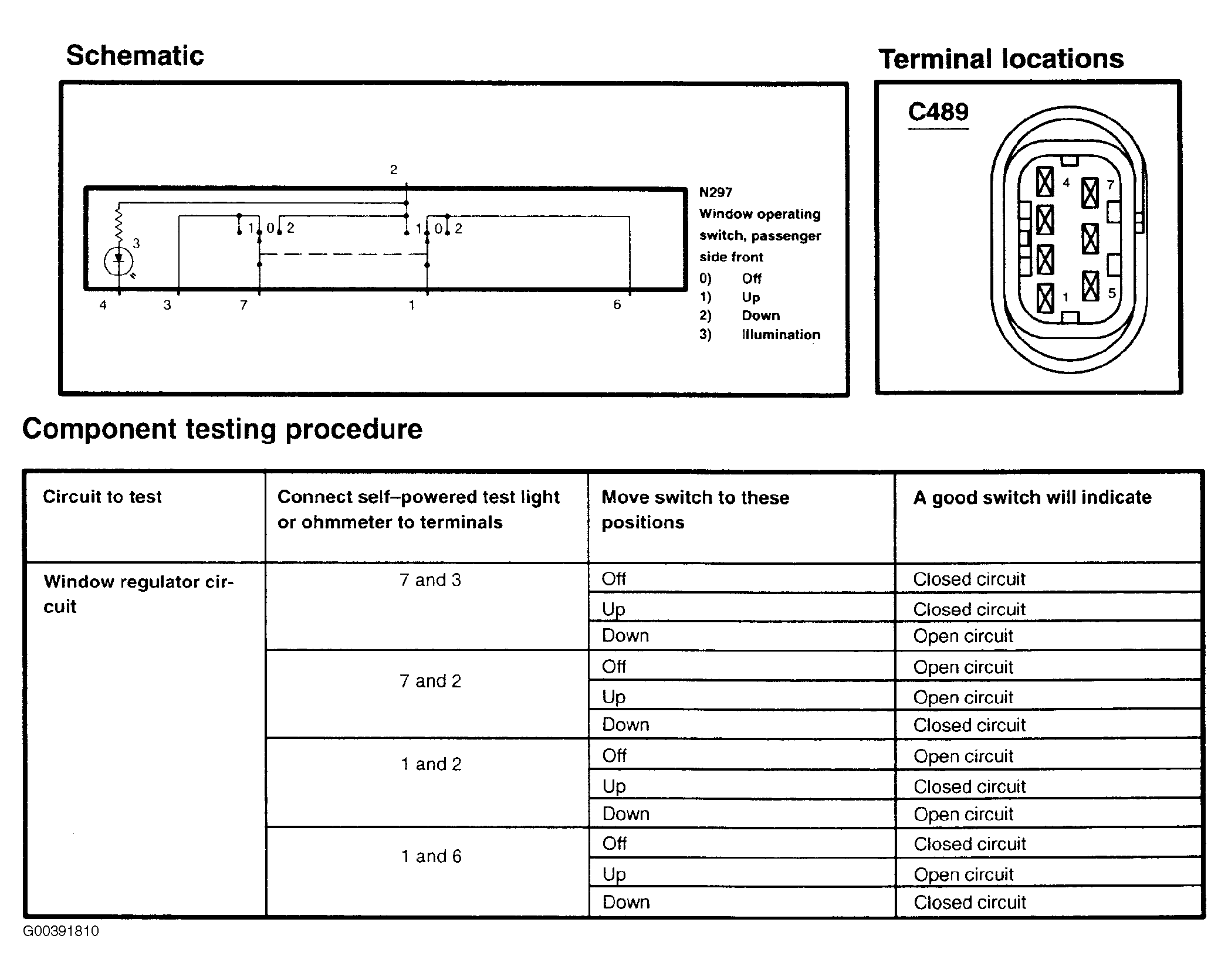

Fig 2: Testing Power Window Switch (Passenger Side)
G00391810Courtesy of FORD MOTOR CO.
