Component Tests: Testing: Relay

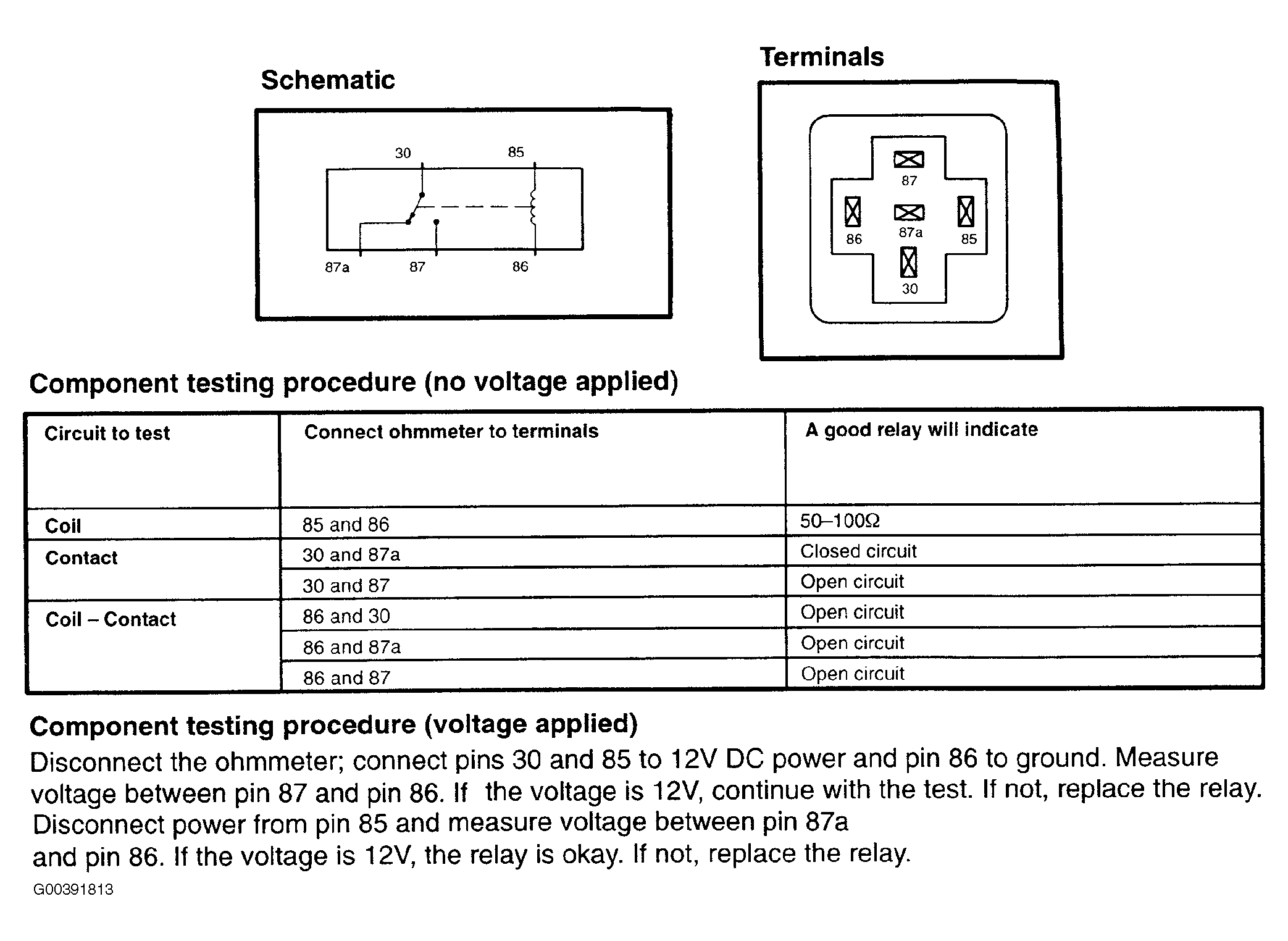

Fig 1: Testing Relay - Mini ISO
G00391813Courtesy of FORD MOTOR CO.

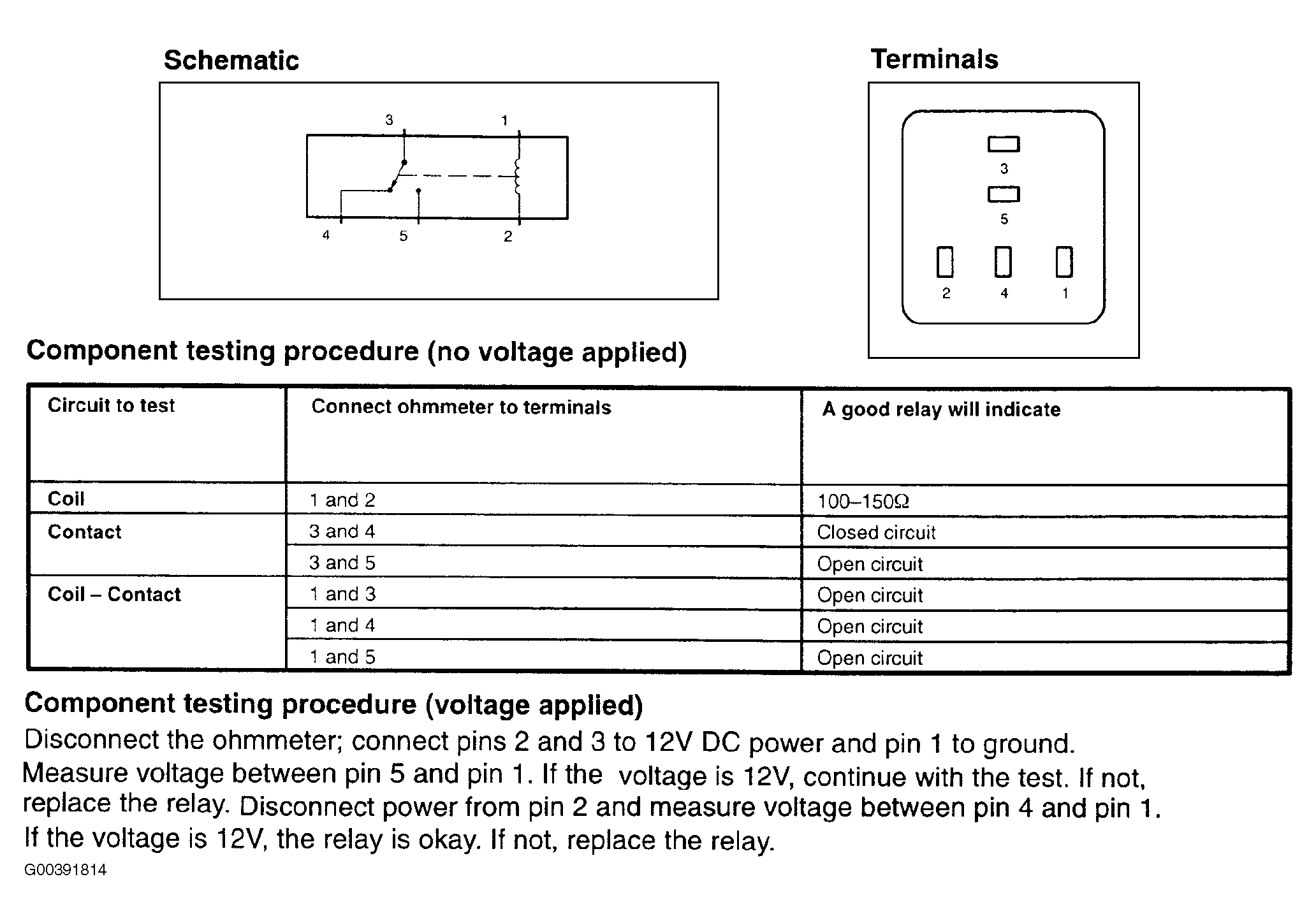

Fig 2: Testing Relay - Micro ISO
G00391814Courtesy of FORD MOTOR CO.
