Pinpoint Test M: The Traction Control Switch Indicator Is Inoperative

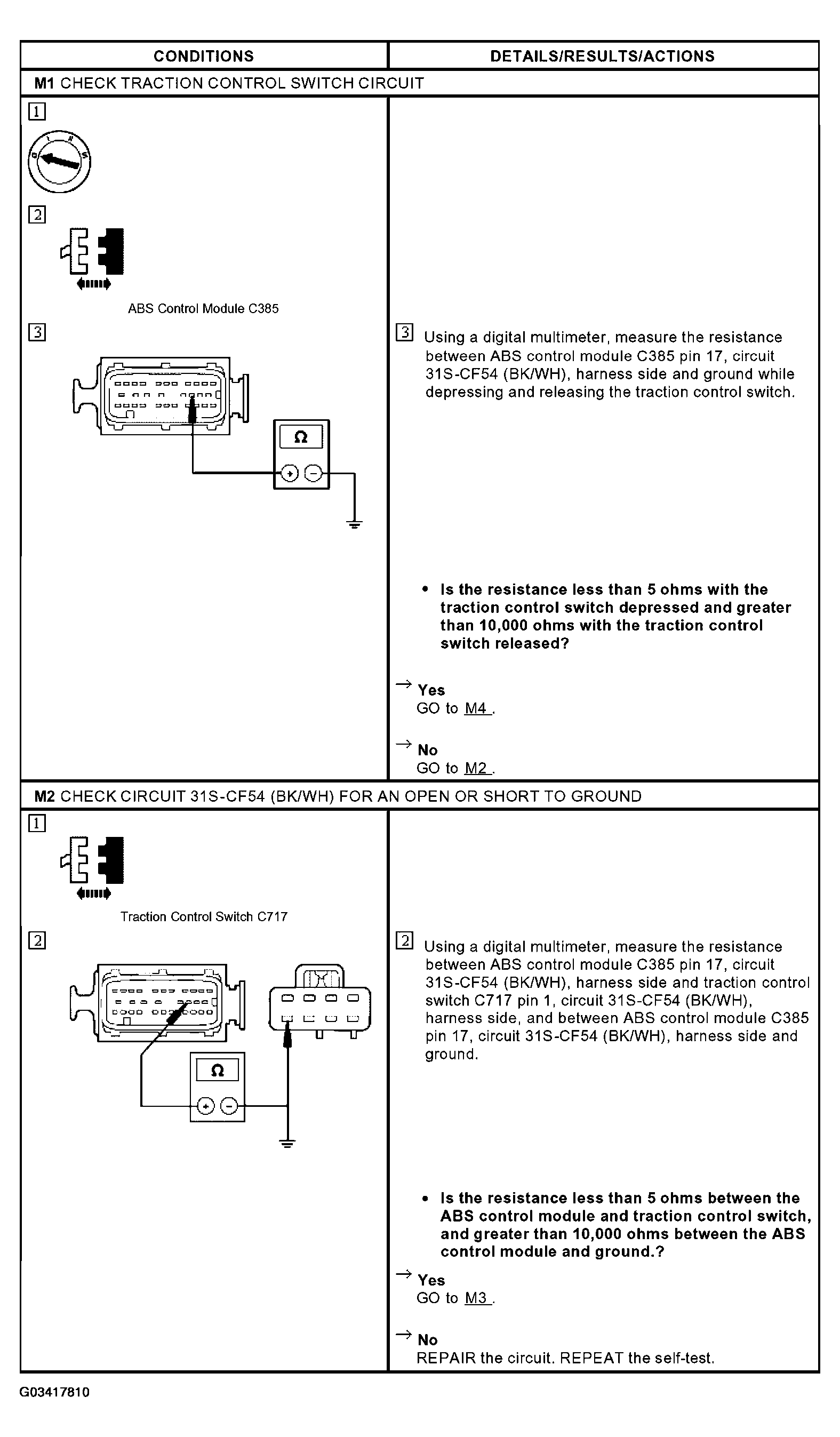

Fig 1: Pinpoint Test M: Traction Control Switch Indicator Is Inoperative (M1 & M2)
G03417810Courtesy of FORD MOTOR CO.

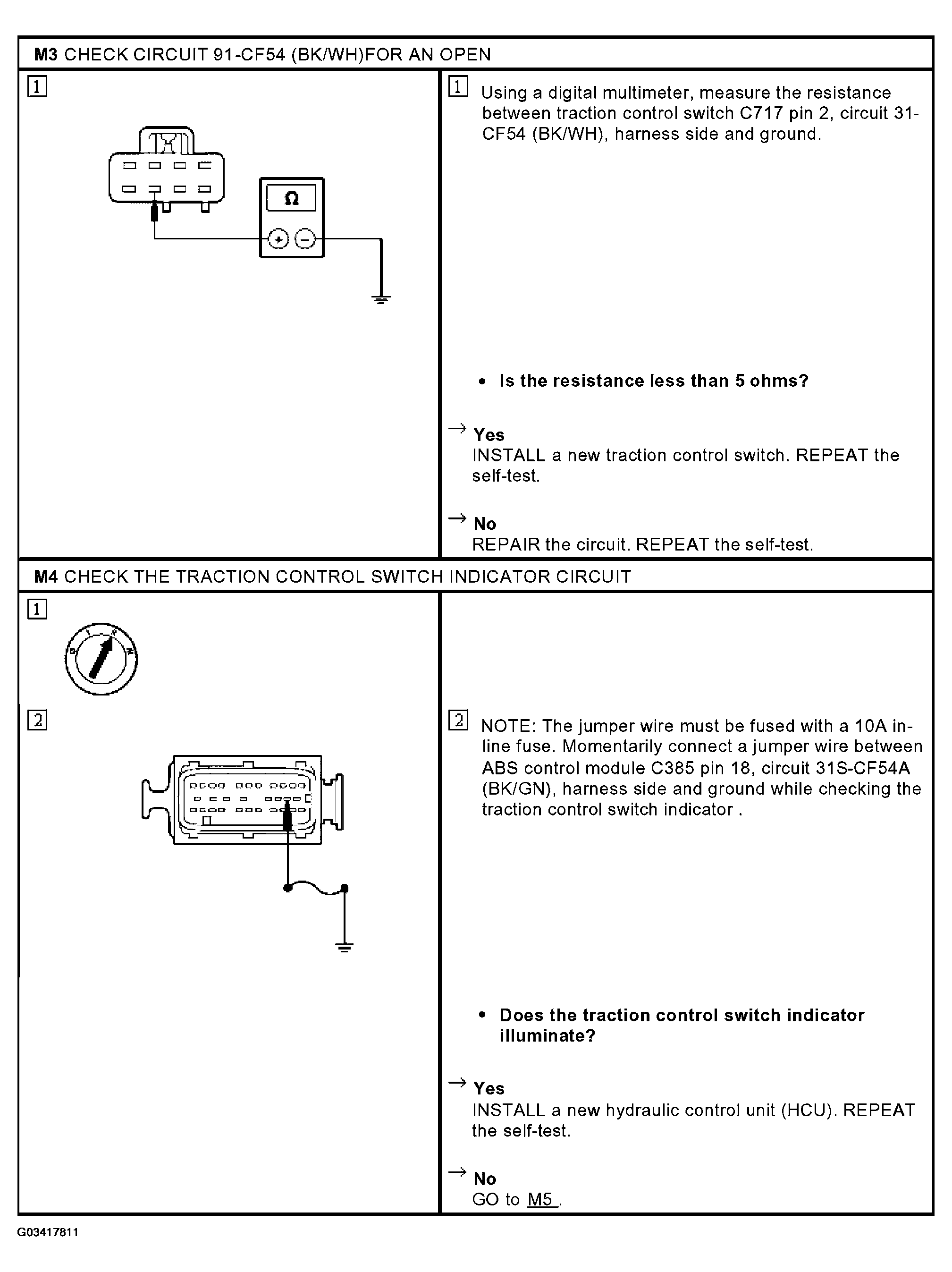

Fig 2: Pinpoint Test M: Traction Control Switch Indicator Is Inoperative (M3 & M4)
G03417811Courtesy of FORD MOTOR CO.

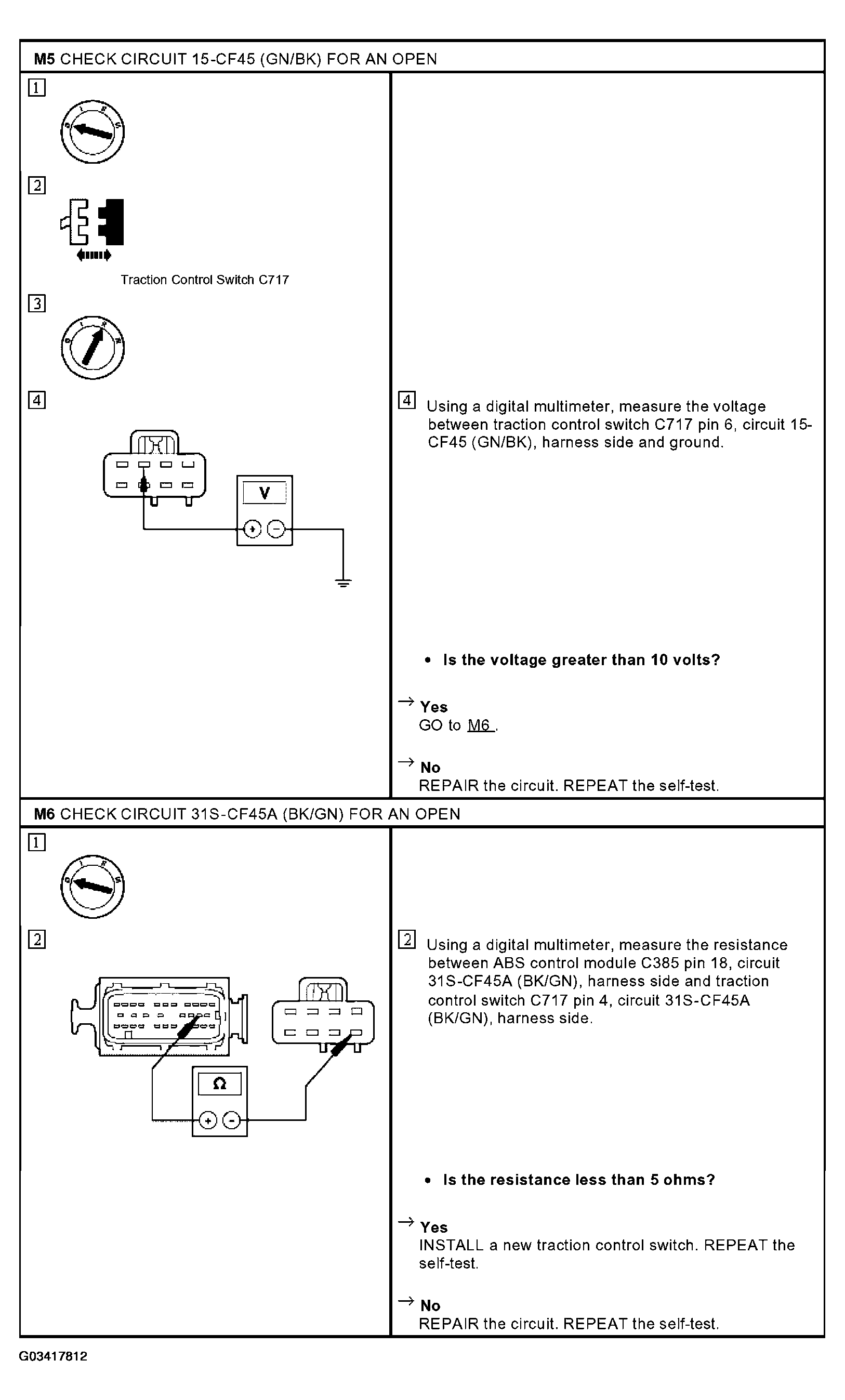

Fig 3: Pinpoint Test M: Traction Control Switch Indicator Is Inoperative (M5 & M6)
G03417812Courtesy of FORD MOTOR CO.
