Rear Wheel Speed Sensor: Removal

Loosen the wheel nuts.
Raise and support the vehicle.
Remove the wheel.
Remove the wheel sensor.

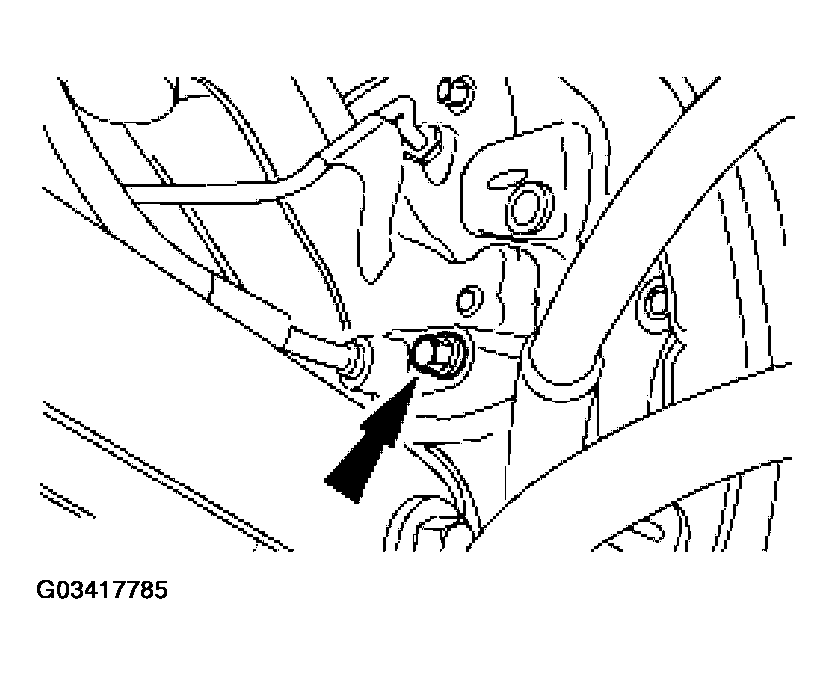

Fig 1: Removing Wheel Sensor
Courtesy of FORD MOTOR CO.
Disconnect the wheel sensor wiring from the support brackets and clips.

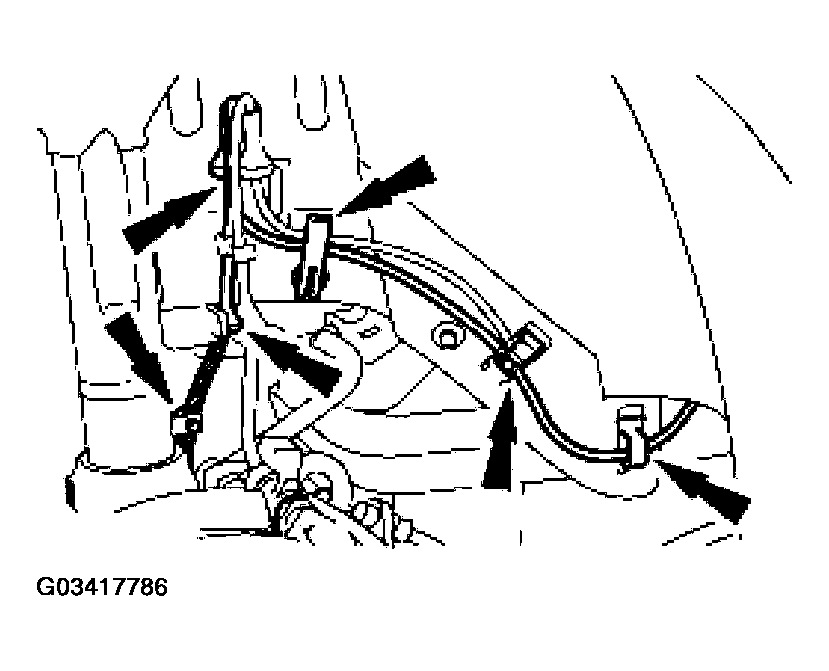

Fig 2: Disconnecting Wheel Sensor Wiring
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Raise the rear seat cushion.
1. Push the cushion towards the backrest.
2. Pull the cushion up.

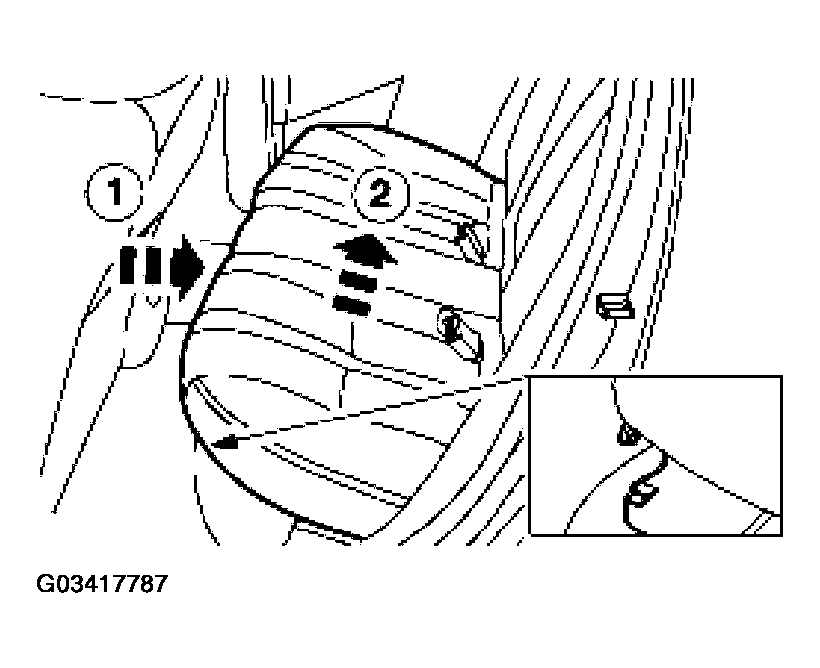

  Fig 3: Raising Rear Seat Cushion
  Courtesy of FORD MOTOR CO.
Remove the screw.
- Push the trim to one side.

  Fig 4: Removing Screw
  Courtesy of FORD MOTOR CO.
Disconnect the wheel sensor electrical connector.
- Pull the cable through the grommet.

  Fig 5: Disconnecting Wheel Sensor Electrical Connector
  Courtesy of FORD MOTOR CO.
