Pinpoint Test D: The Transaxle Control Switch Is Not Operating Properly

WARNING: This page is about a different variant/trim than selected.

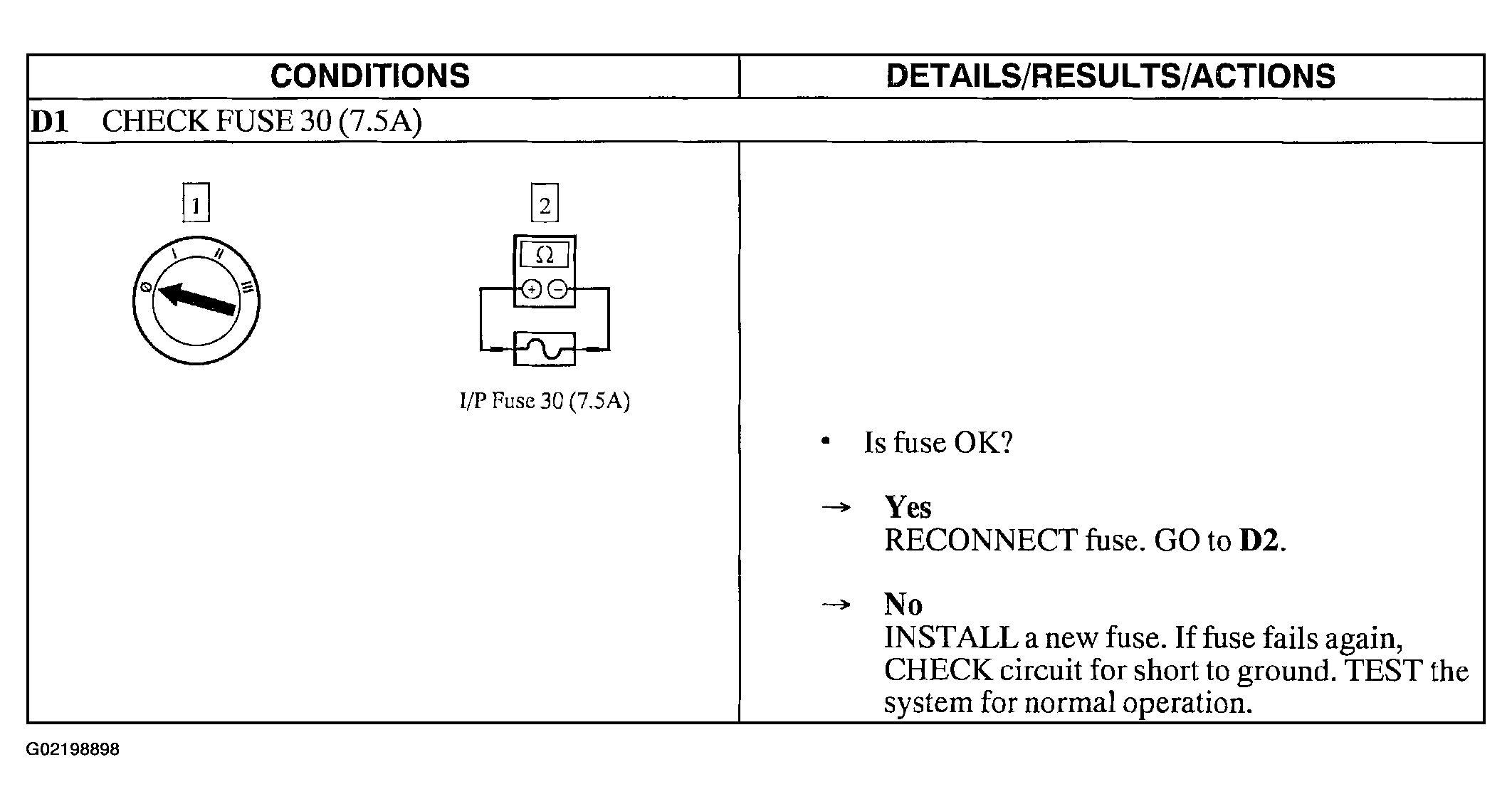

Fig 1: Pinpoint Test D: Transaxle Control Switch Is Not Operating Properly (D1)

Courtesy of FORD MOTOR CO.

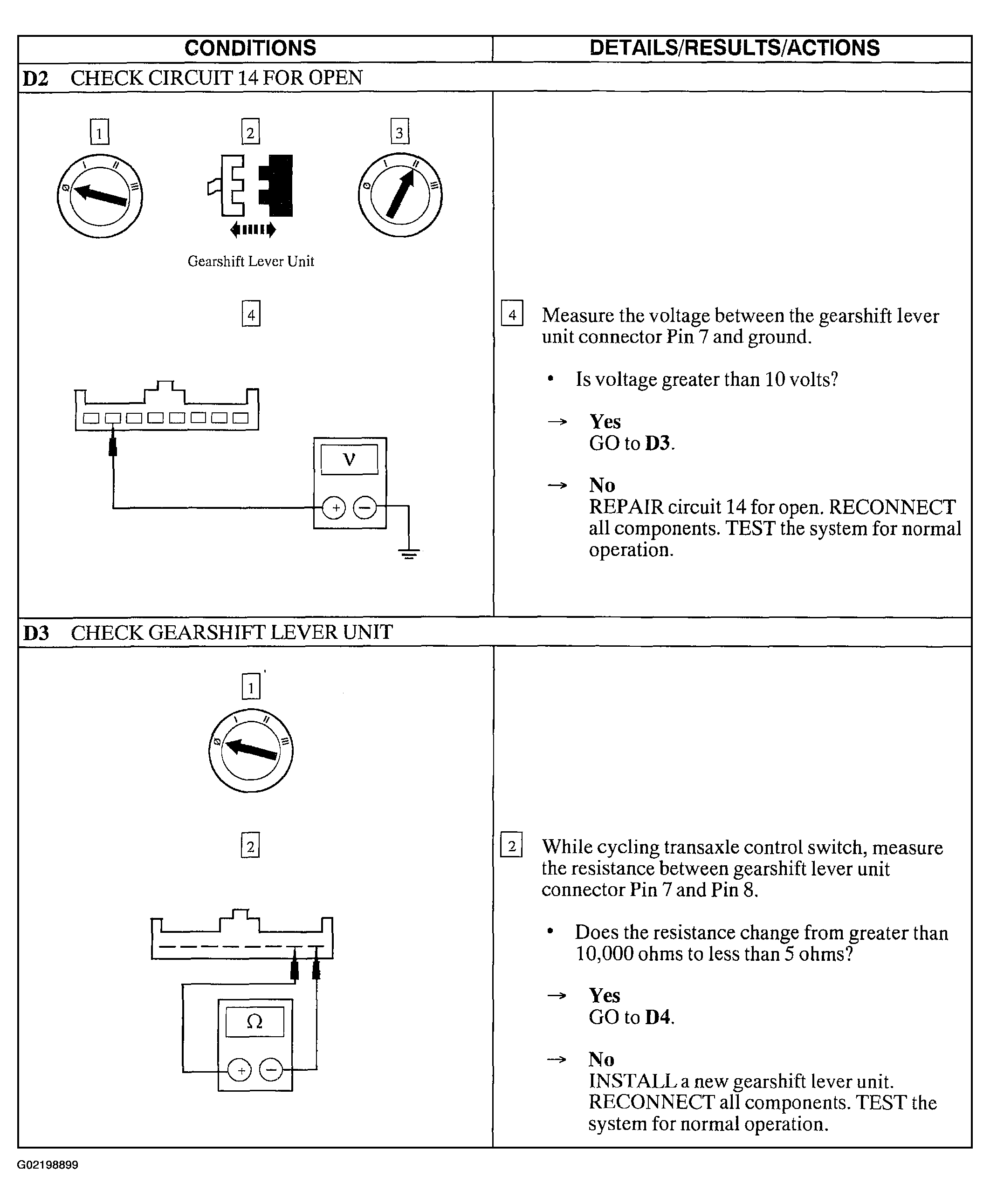

Fig 2: Pinpoint Test D: Transaxle Control Switch Is Not Operating Properly (D2 & D3)

Courtesy of FORD MOTOR CO.

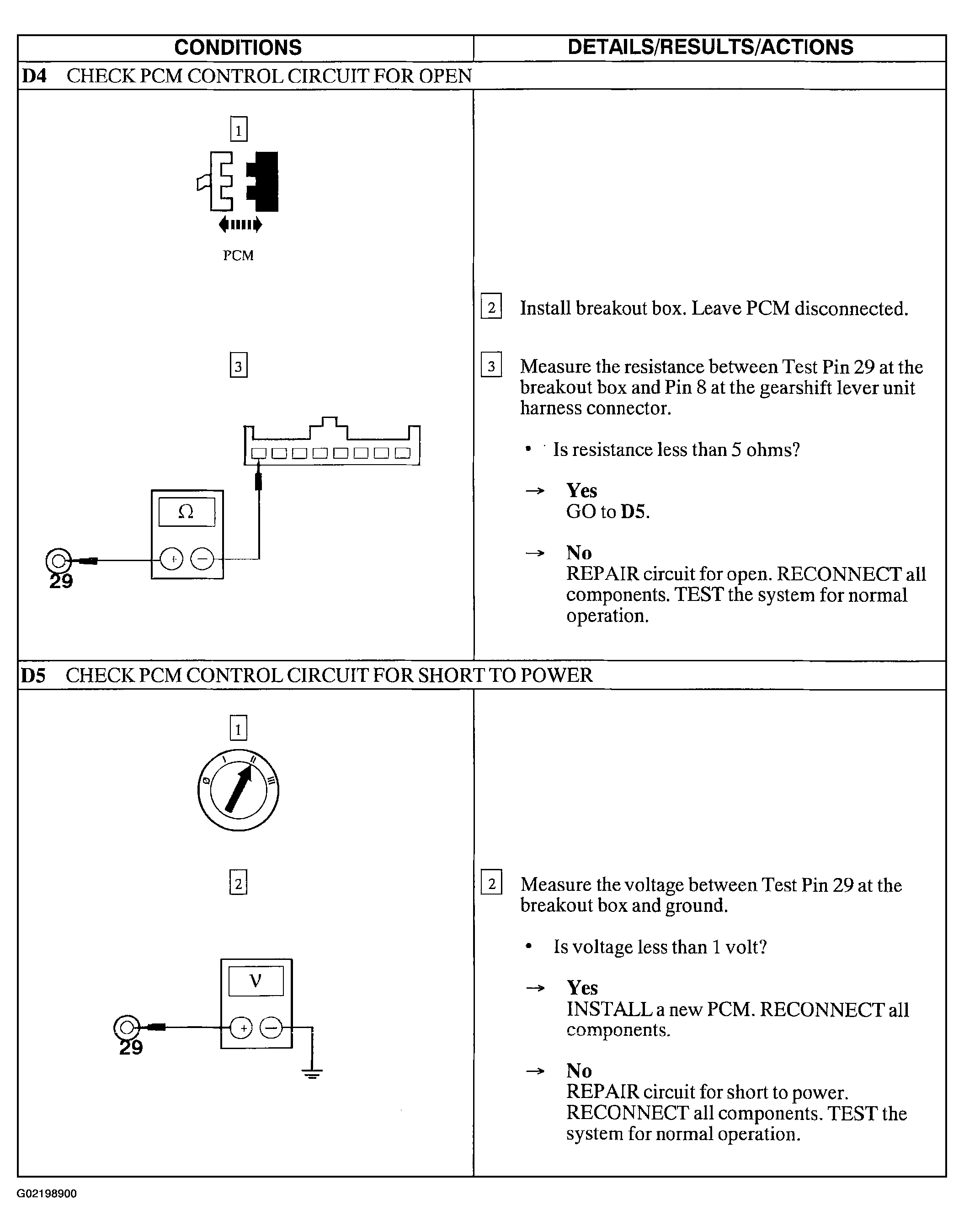

Fig 3: Pinpoint Test D: Transaxle Control Switch Is Not Operating Properly (D4 & D5)

Courtesy of FORD MOTOR CO.
