MULTIFUNCTION Switch

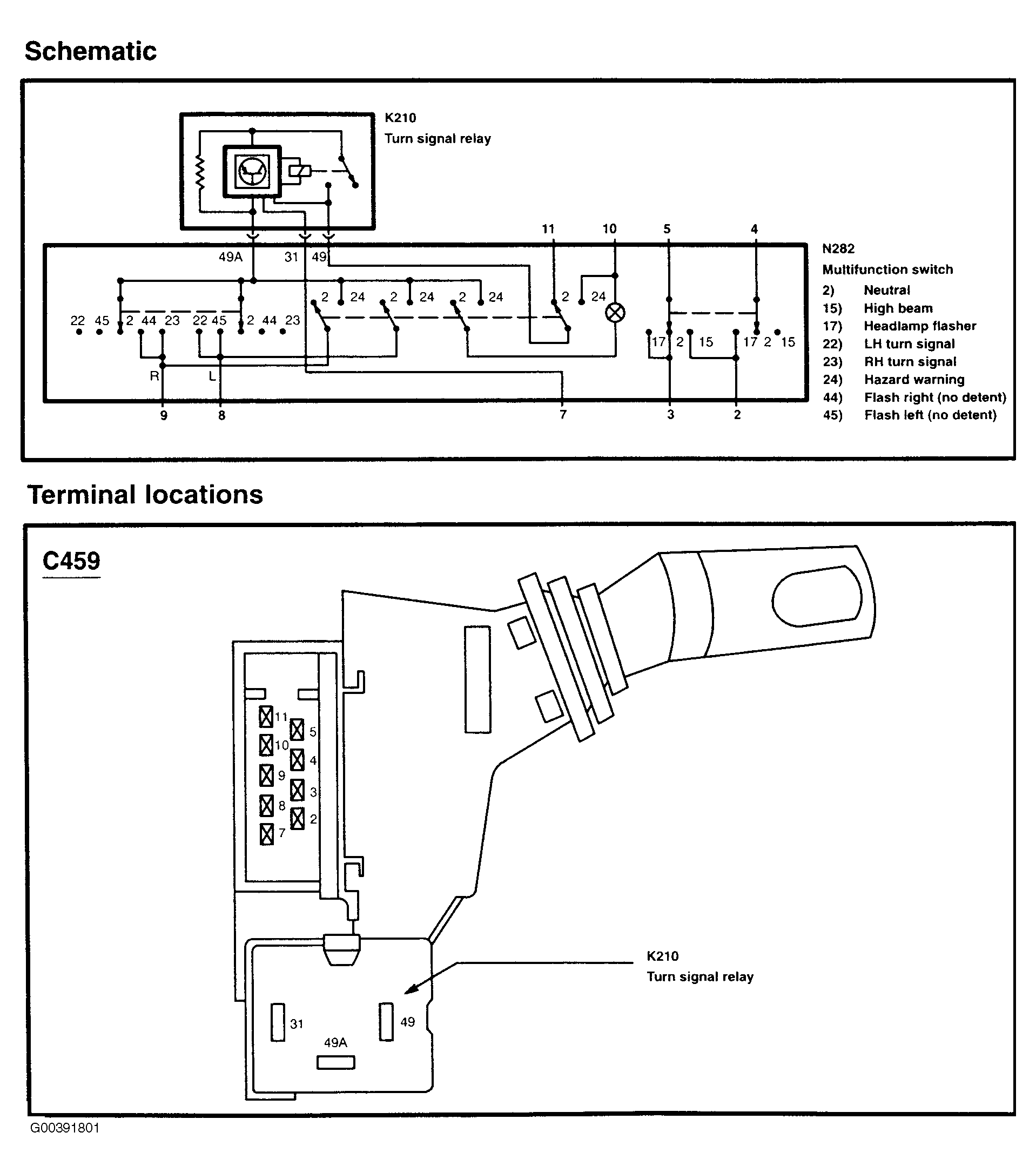

Fig 1: Testing Multifunction Switch (1 Of 2)
G00391801Courtesy of FORD MOTOR CO.

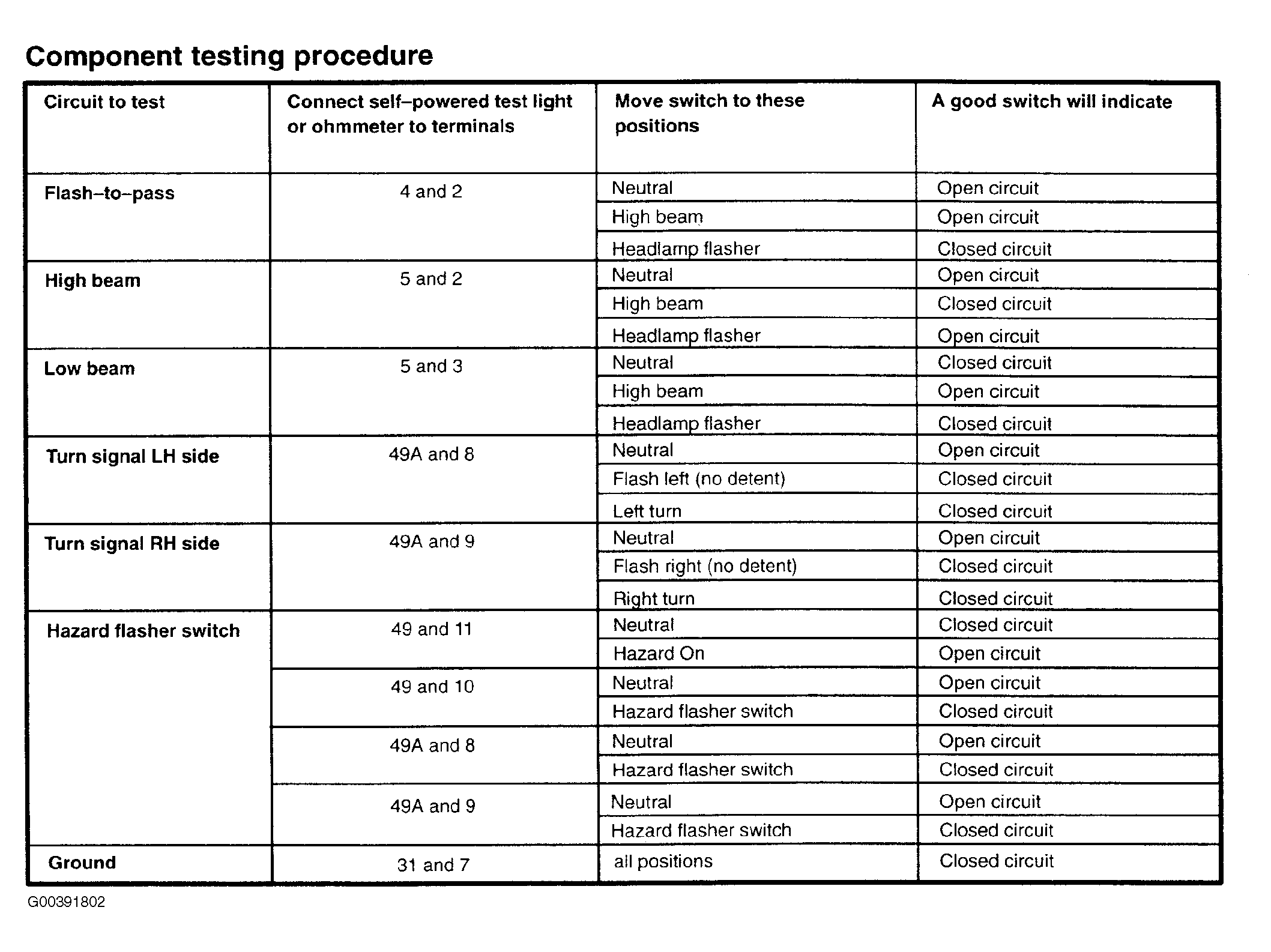

Fig 2: Testing Multifunction Switch (2 Of 2)
G00391802Courtesy of FORD MOTOR CO.
