Piston Diameter

General Equipment- Micrometer

NOTE: Mark piston in case a piston has to be again installed.

Using a Micrometer measure the piston in two directions.
- Measure the piston diameter at the height of the piston pin bore, but offset by 90 degrees.

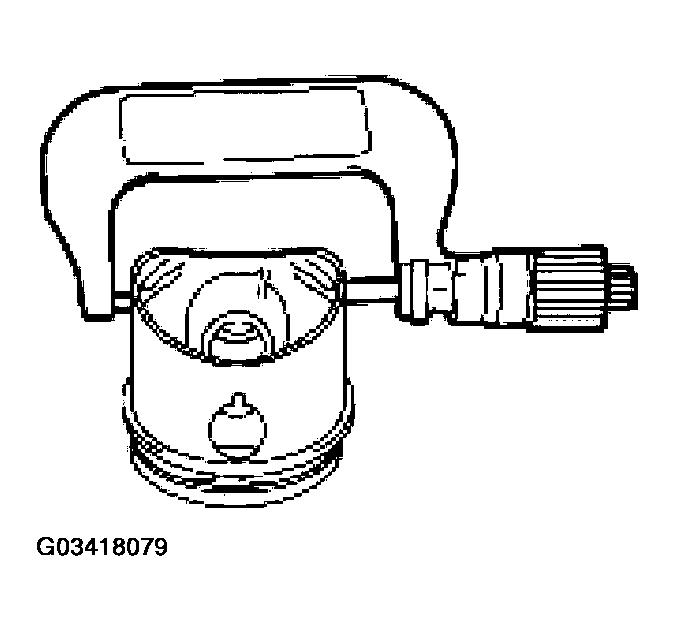

  Fig 1: Measuring Piston Diameter Using Micrometer
  Courtesy of FORD MOTOR CO.
