Disassembled Views

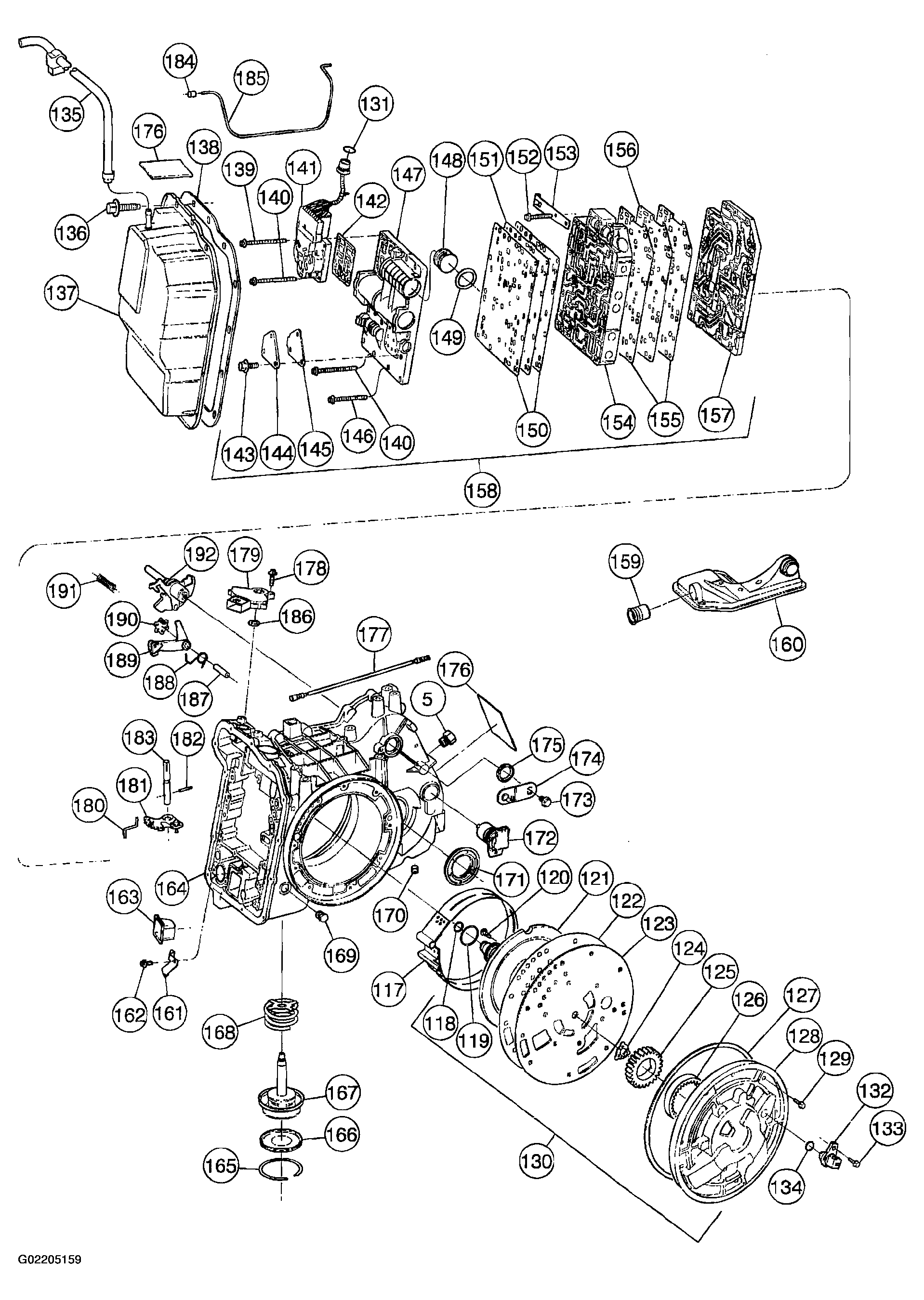

Fig 1: Exploded View Of Transaxle. Transmission-Automatic Components (1 Of 3)

Courtesy of FORD MOTOR CO.

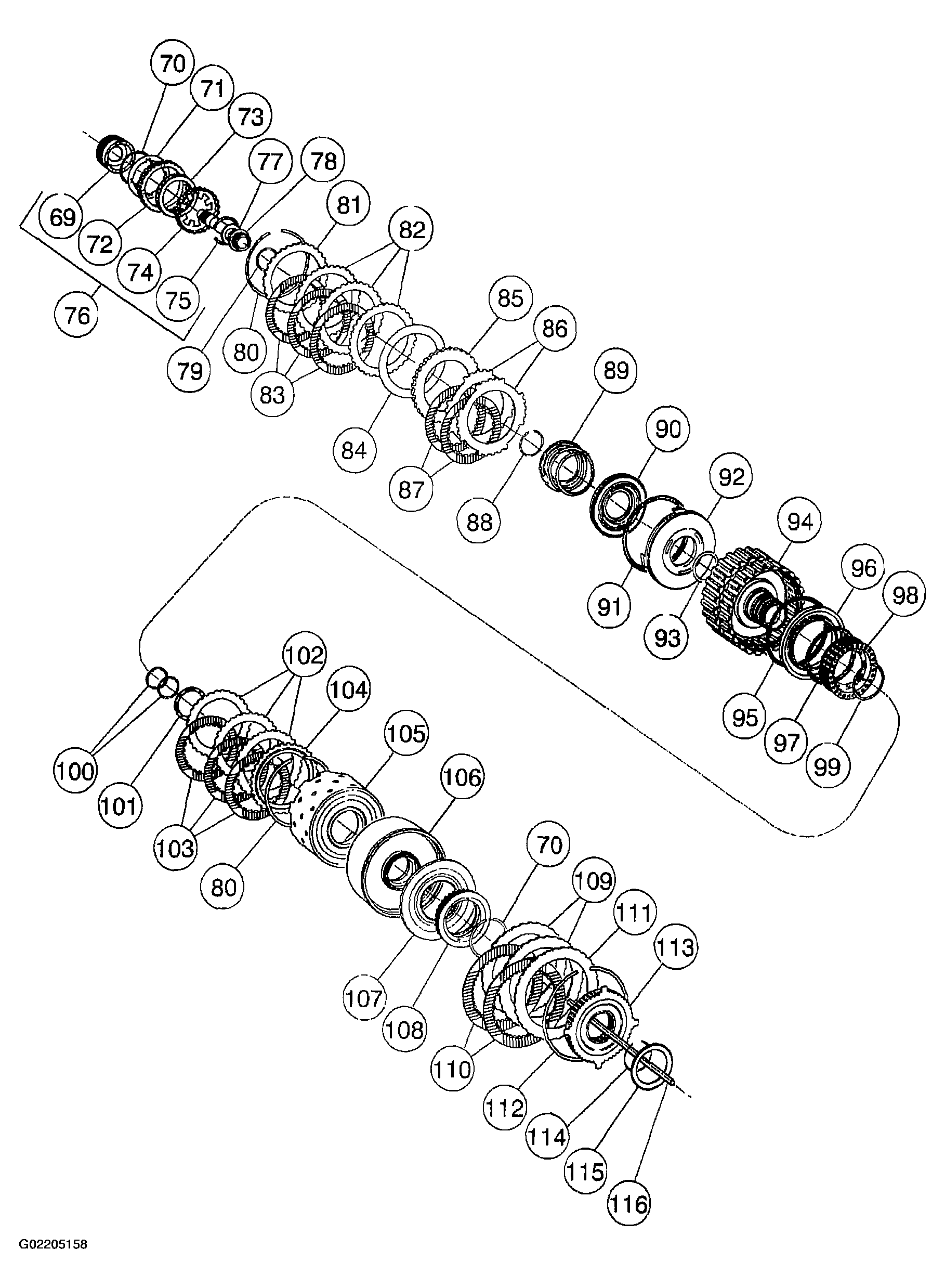

Fig 2: Exploded View Of Transaxle. Transmission-Automatic Components (2 Of 3)

Courtesy of FORD MOTOR CO.

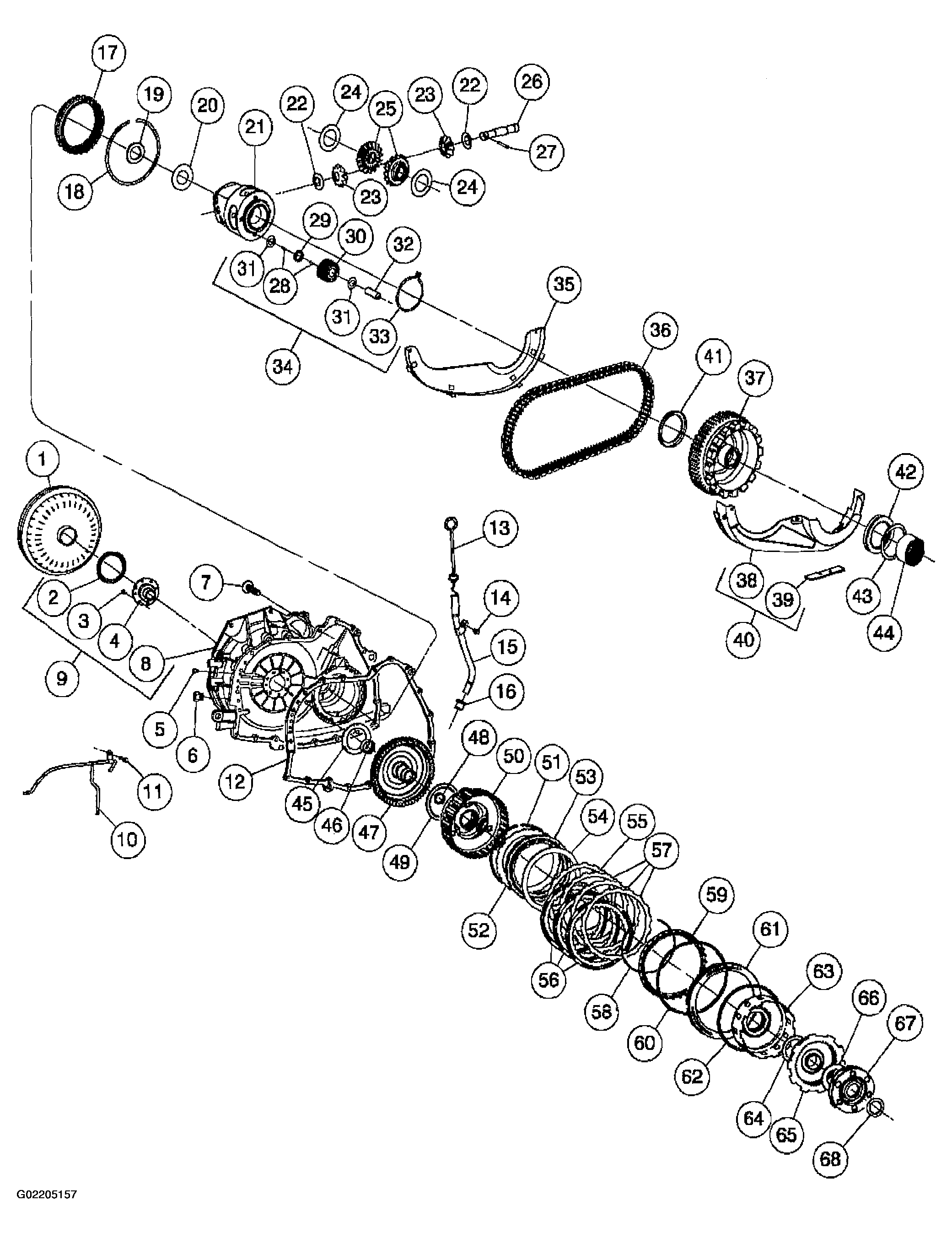

Fig 3: Exploded View Of Transaxle. Transmission-Automatic Components (3 Of 3)

Courtesy of FORD MOTOR CO.

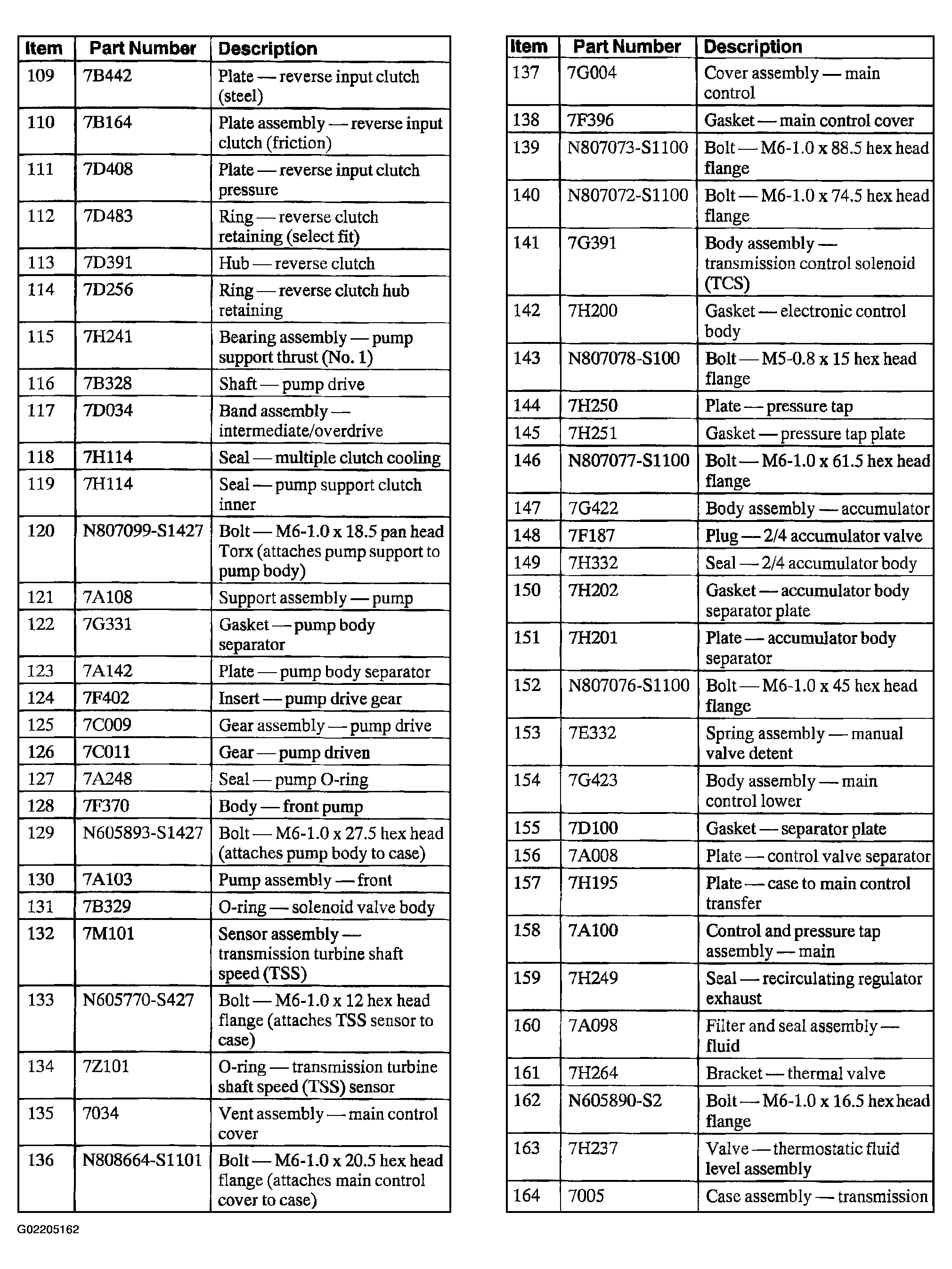

Fig 4: Parts Description Chart (1 Of 4)

Courtesy of FORD MOTOR CO.

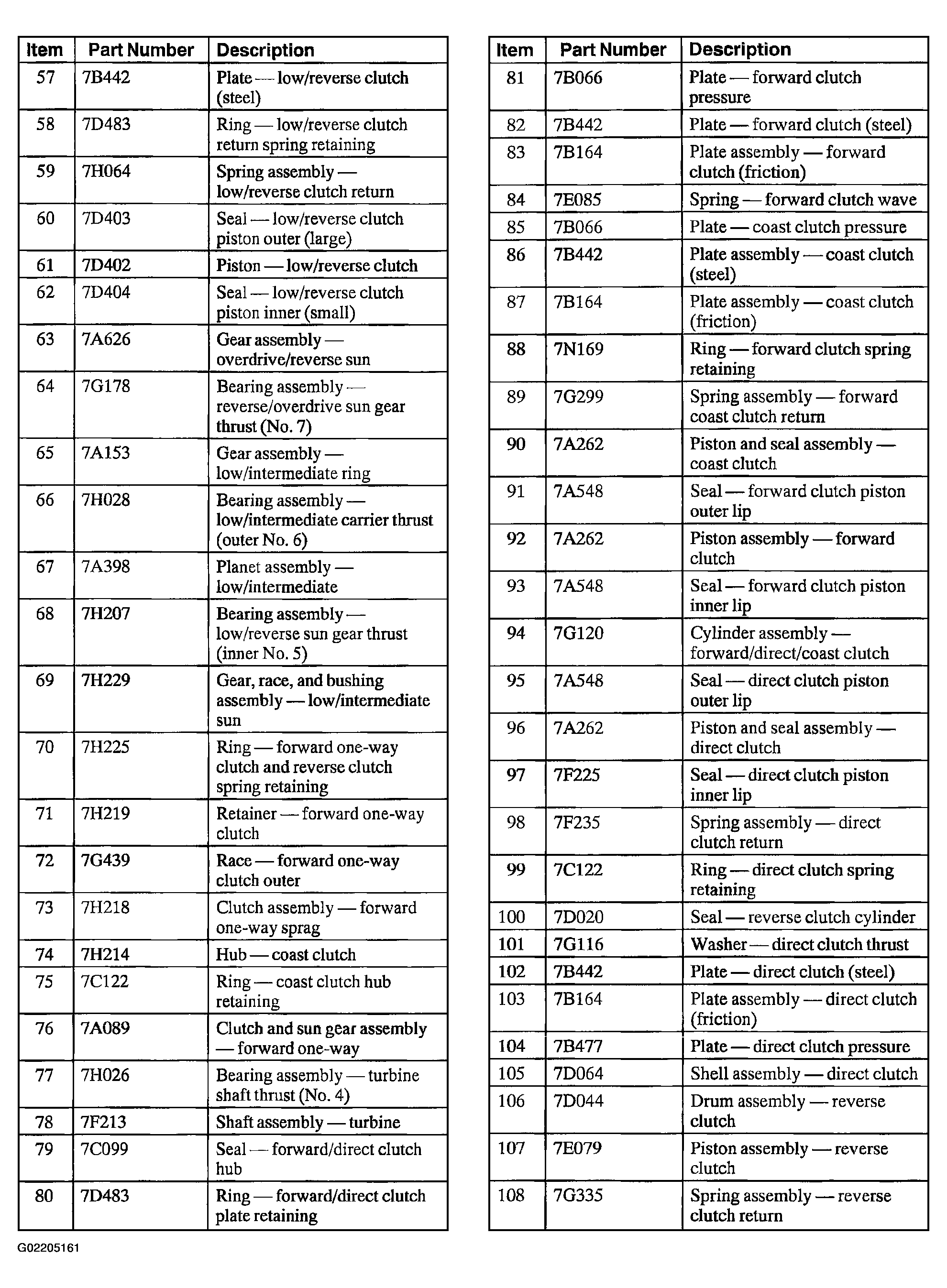

Fig 5: Parts Description Chart (2 Of 4)

Courtesy of FORD MOTOR CO.

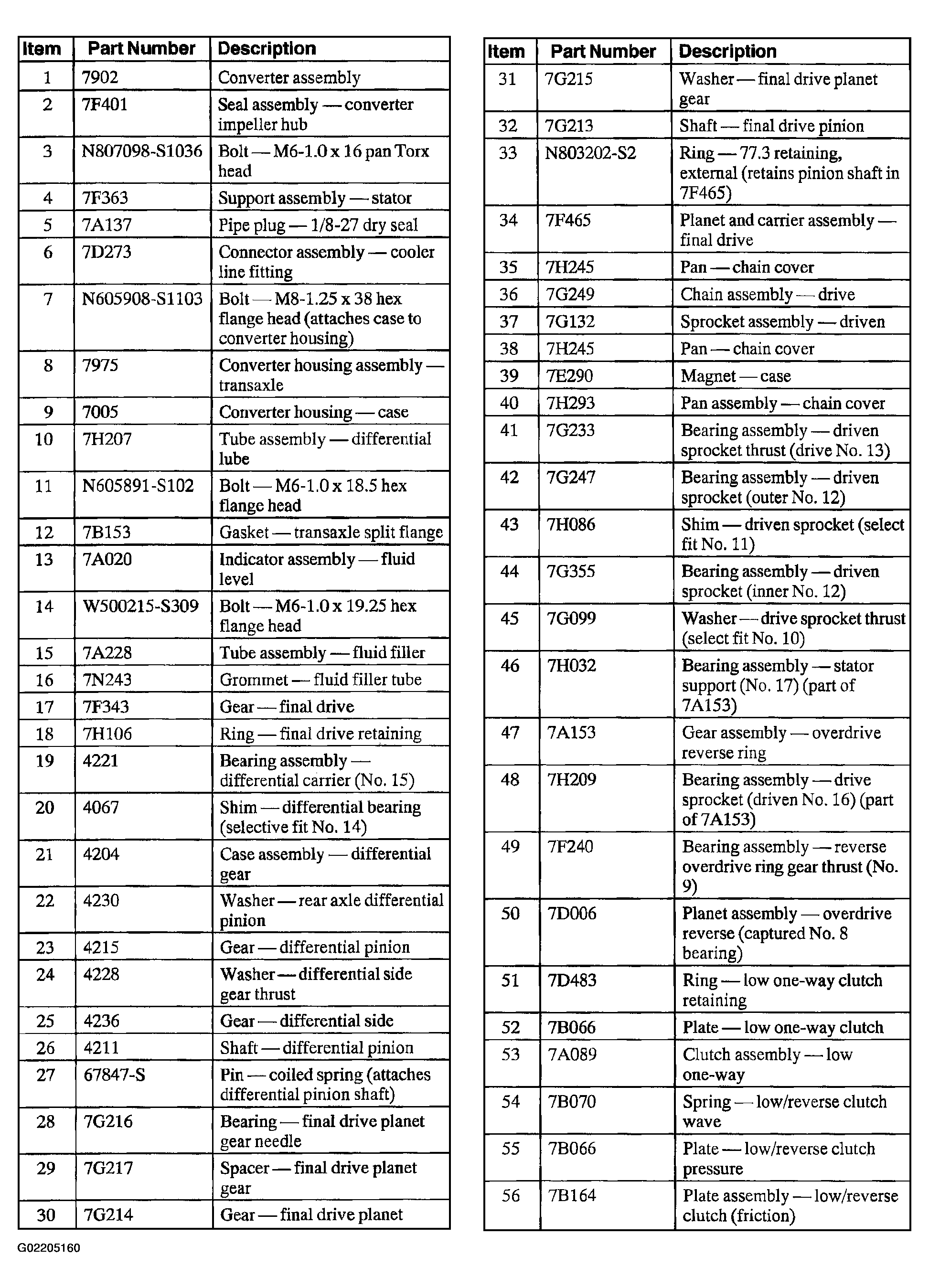

Fig 6: Parts Description Chart (3 Of 4)

Courtesy of FORD MOTOR CO.

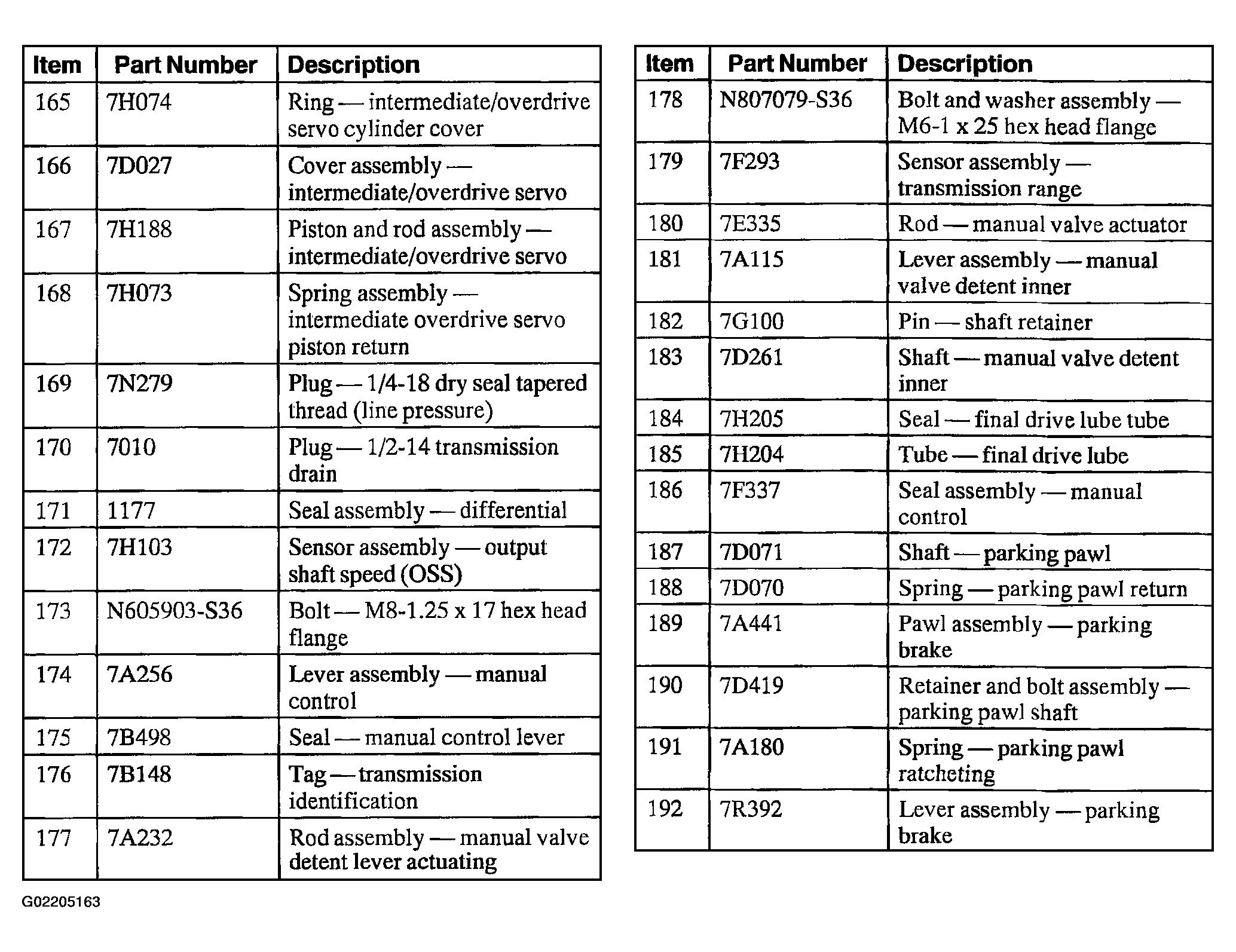

Fig 7: Parts Description Chart (4 Of 4)

Courtesy of FORD MOTOR CO.
