Hydraulic System: Notes

The hydraulic system uses transmission fluid to cool, lubricate, and provide hydraulic pressure to the hydraulic circuits within the transaxle.

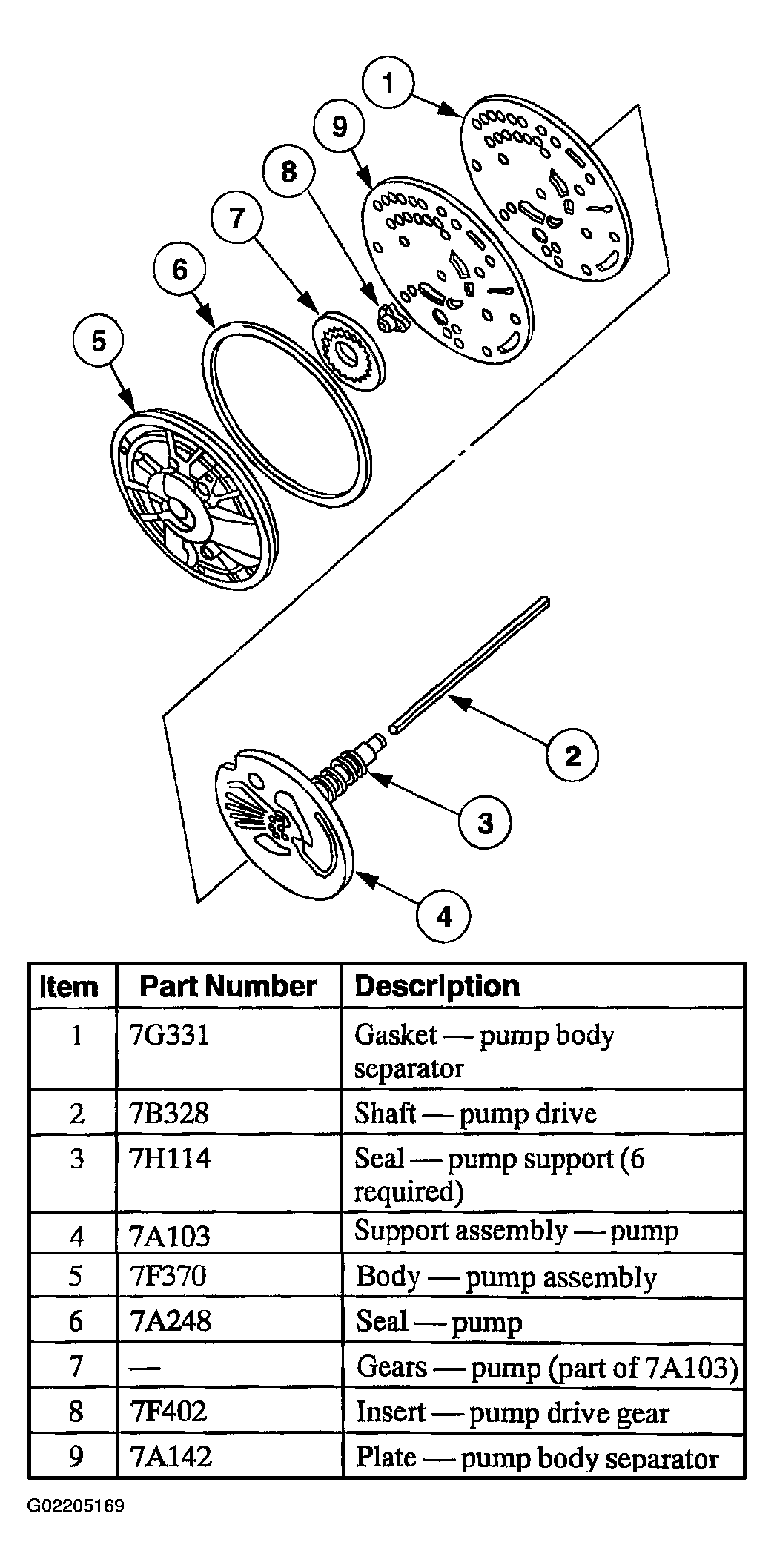

Fig 1: Identifying Fluid Pump Assembly Components
G02205169Courtesy of FORD MOTOR CO.
