Low/Reverse Piston: Assembly

  1. Install the low/reverse clutch piston outer seal on the low/reverse clutch piston.

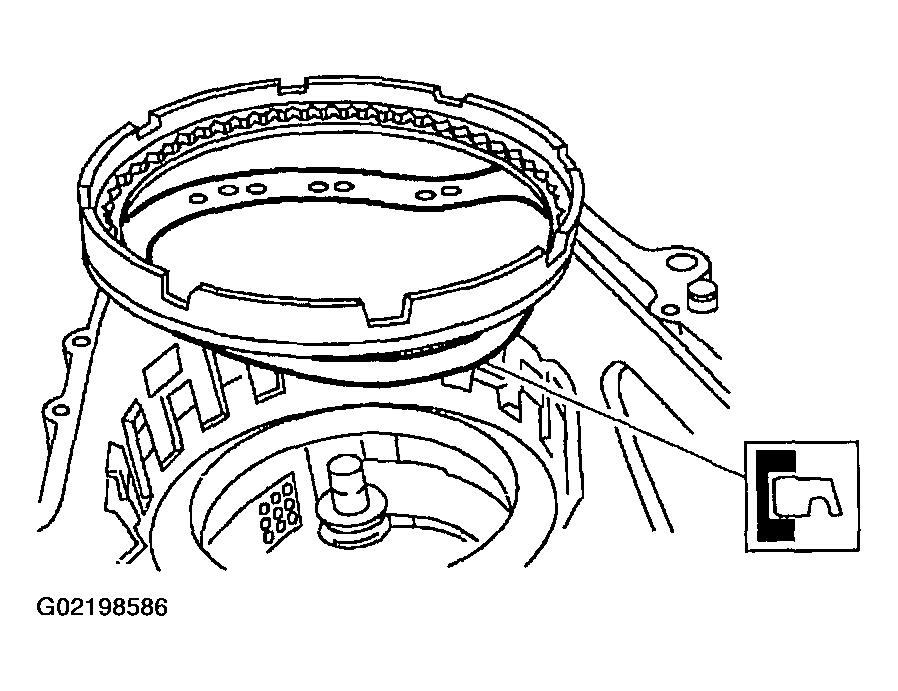

    Fig 1: Installing Low/Reverse Clutch Piston Outer Seal On Low/Reverse Clutch Piston
    G02198586Courtesy of FORD MOTOR CO.
  2. Install the low/reverse clutch piston inner seal on the low/reverse clutch piston.
    Fig 2: Installing Low/Reverse Clutch Piston Inner Seal On Low/Reverse Clutch Piston
    G02198587Courtesy of FORD MOTOR CO.
