Differential Fluid Seals: Installation

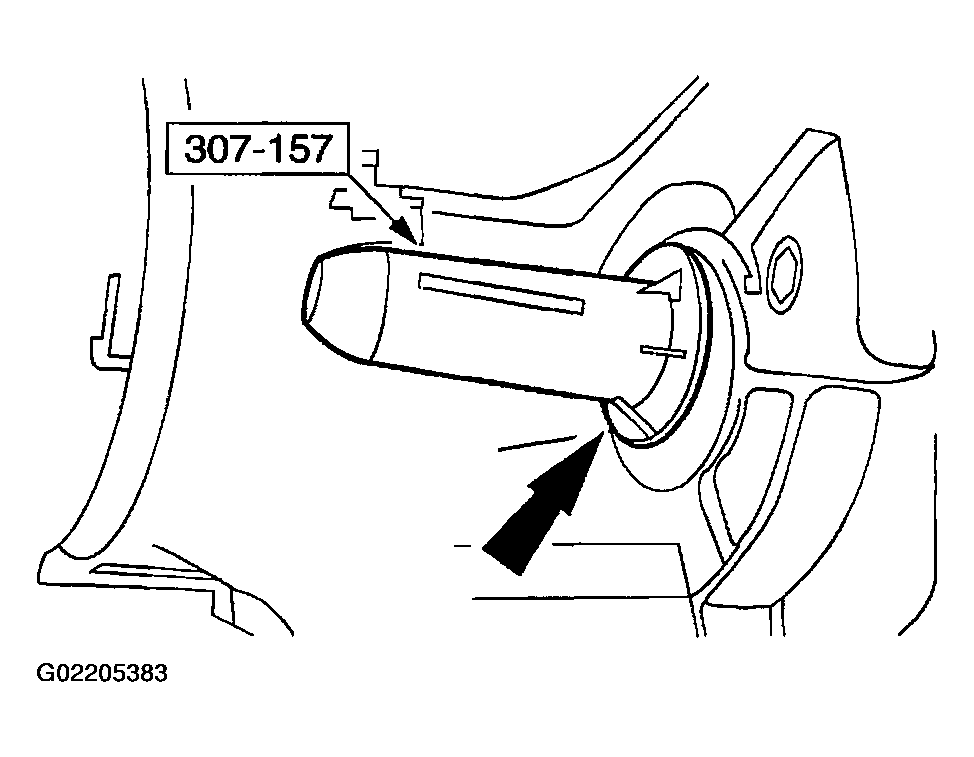

Using the special tool, install the differential seal.

Fig 1: Installing Differential Seal Using Special Tool
Courtesy of FORD MOTOR CO.
Install LH/RH halfshafts. Refer to AXLE SHAFTS .
Install the transaxle drain plug.

Fig 2: Installing Transaxle Drain Plug
Courtesy of FORD MOTOR CO.
Remove the drain pan and lower the vehicle.
Add automatic transmission fluid.

Fig 3: Identifying Automatic Transmission Fluid Dipstick
Courtesy of FORD MOTOR CO.
Start the engine and move the transaxle range selector lever through all gear positions. Refill as necessary.

Fig 4: Identifying Transaxle Range Selector Lever
Courtesy of FORD MOTOR CO.
Allow the transmission fluid to reach operating temperature and fill as necessary.
Test drive the vehicle.
