Output Shaft Speed (OSS) Sensor: Installation

NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.

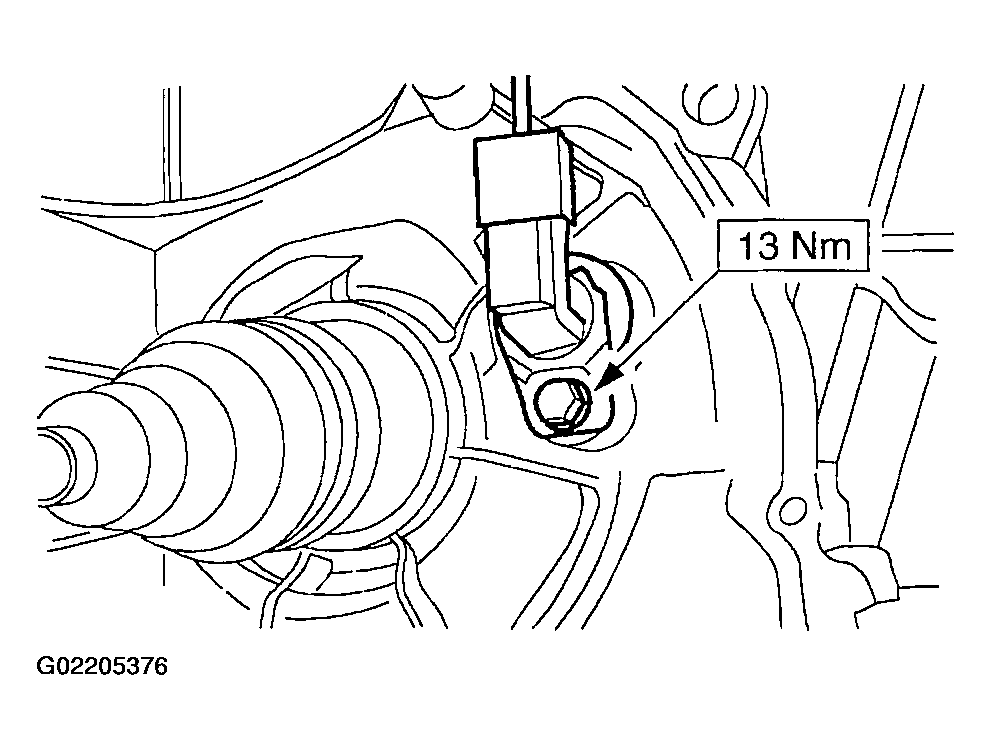

Install the OSS sensor.
- Connect the OSS sensor electrical connector.

  Fig 1: Connecting OSS Sensor Electrical Connector
  Courtesy of FORD MOTOR CO.
Lower vehicle.
Check the transmission fluid level, add automatic transmission fluid.

Fig 2: Checking Transmission Fluid Level
Courtesy of FORD MOTOR CO.
Start the engine and move the transaxle range selector lever through all gear positions.

Fig 3: Identifying Transaxle Range Selector Lever
Courtesy of FORD MOTOR CO.
