Reference: Clutch/Band Application Chart

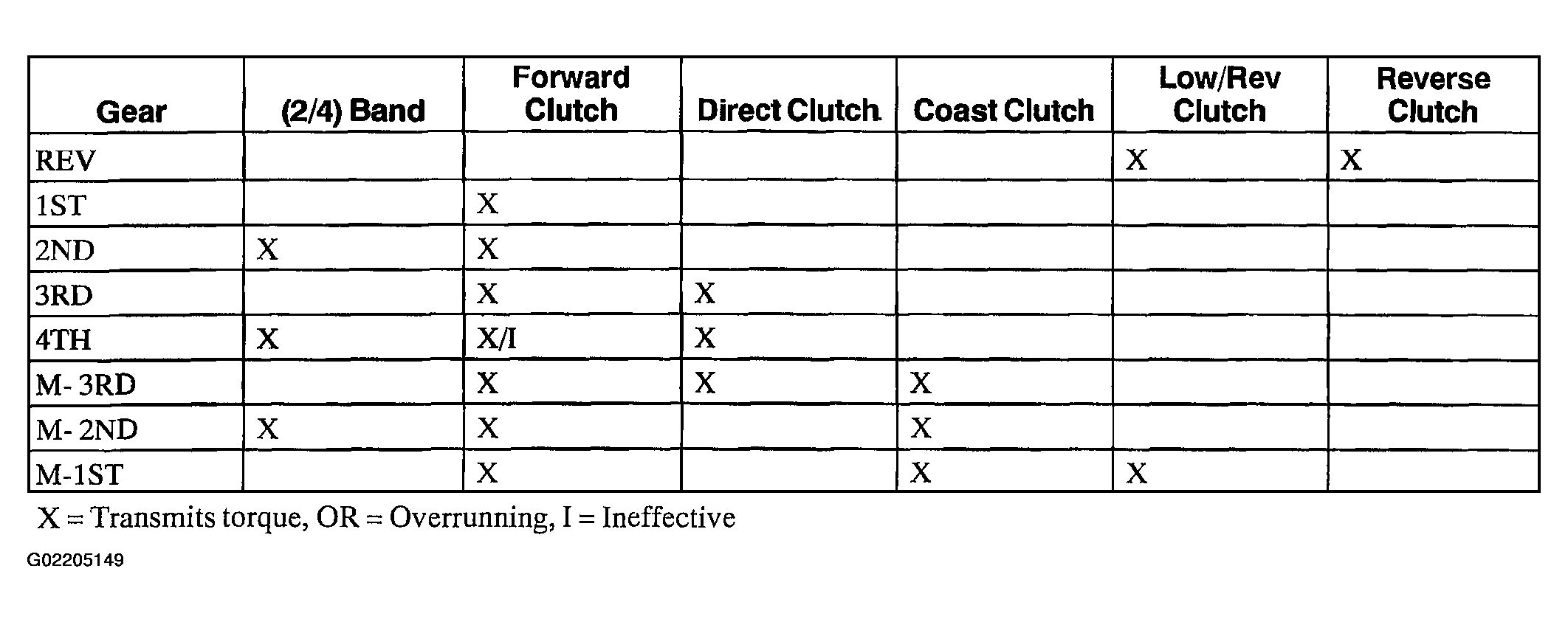

Fig 1: Clutch/Band Application Chart (1 Of 2)
G02205149Courtesy of FORD MOTOR CO.

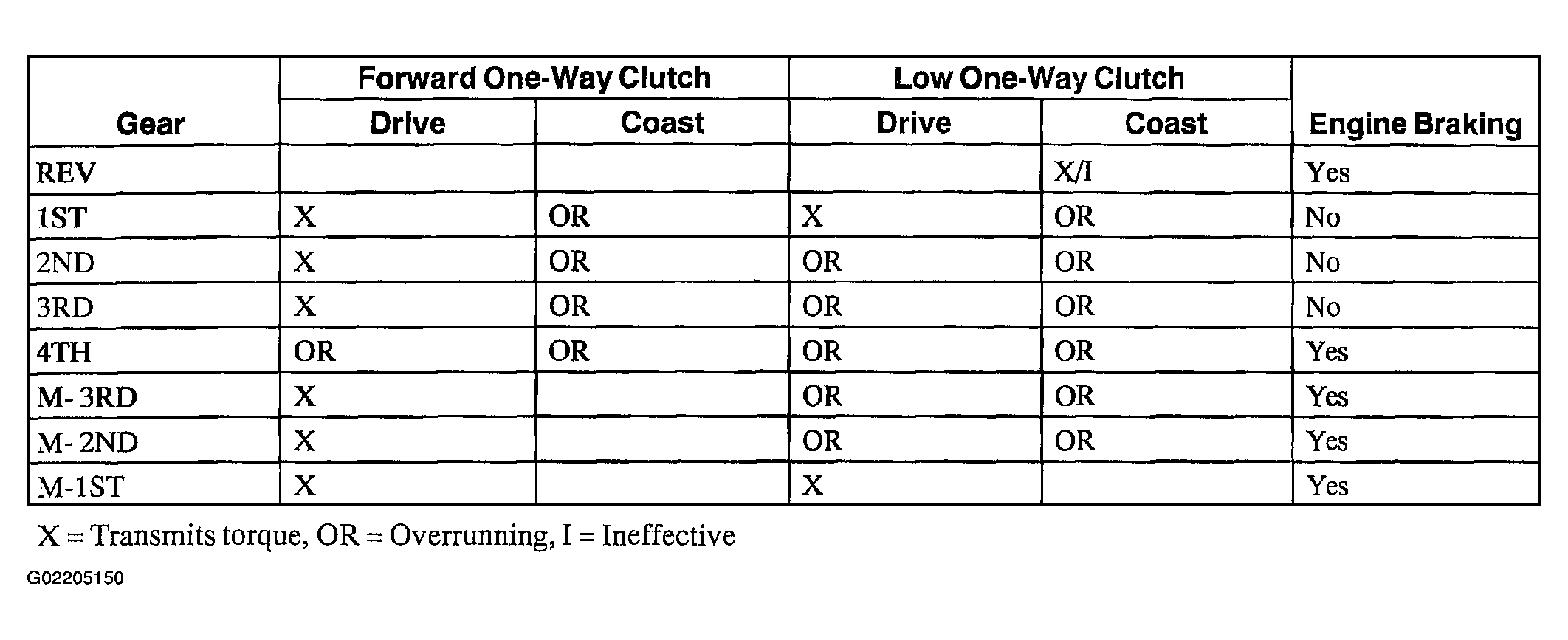

Fig 2: Clutch/Band Application Chart (2 Of 2)
G02205150Courtesy of FORD MOTOR CO.
