Power Mirror Switch
Power Mirror Switch

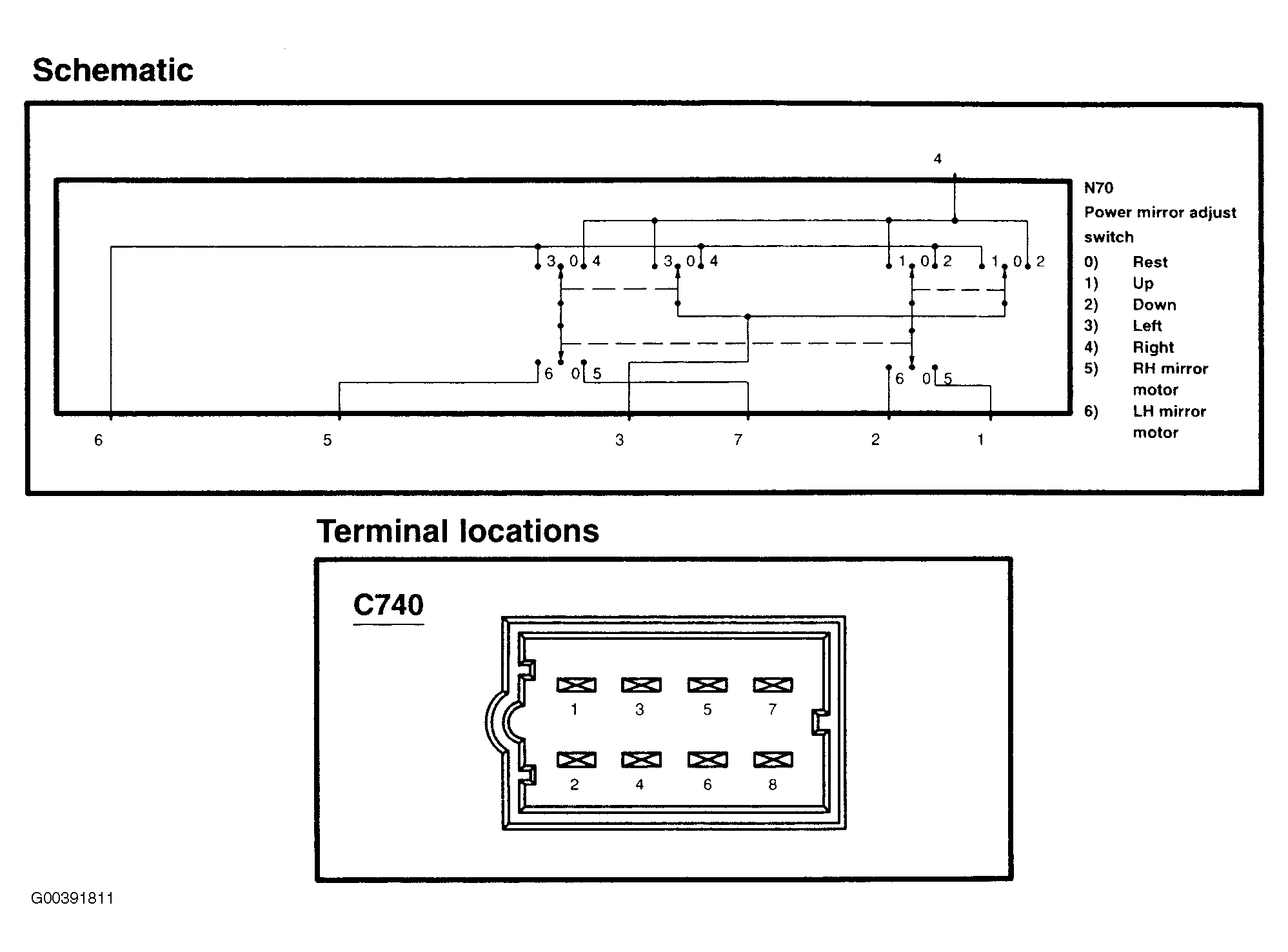

Fig 1: Testing Power Mirror Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

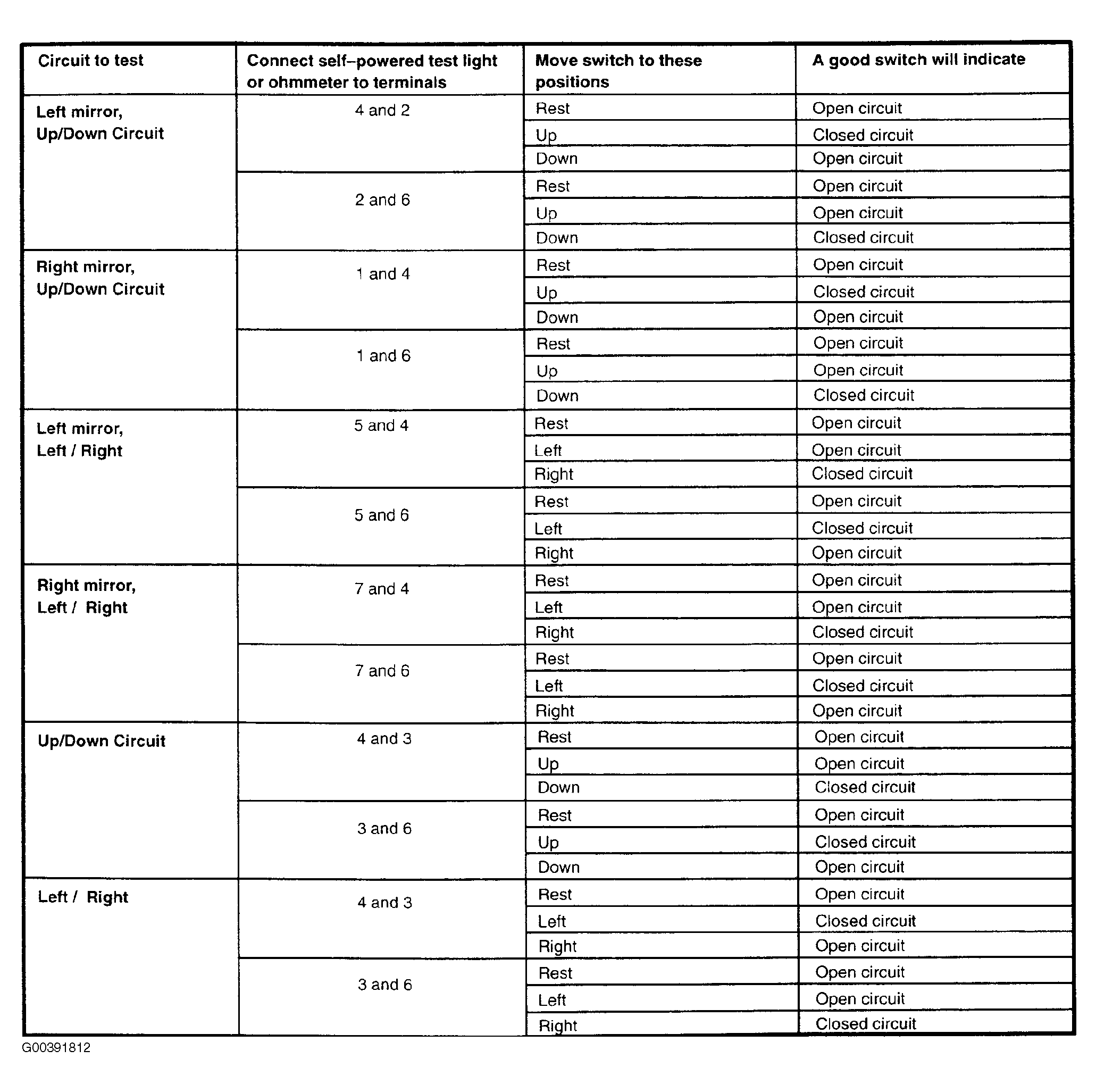

Fig 2: Testing Power Mirror Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
