Power Seat Switch

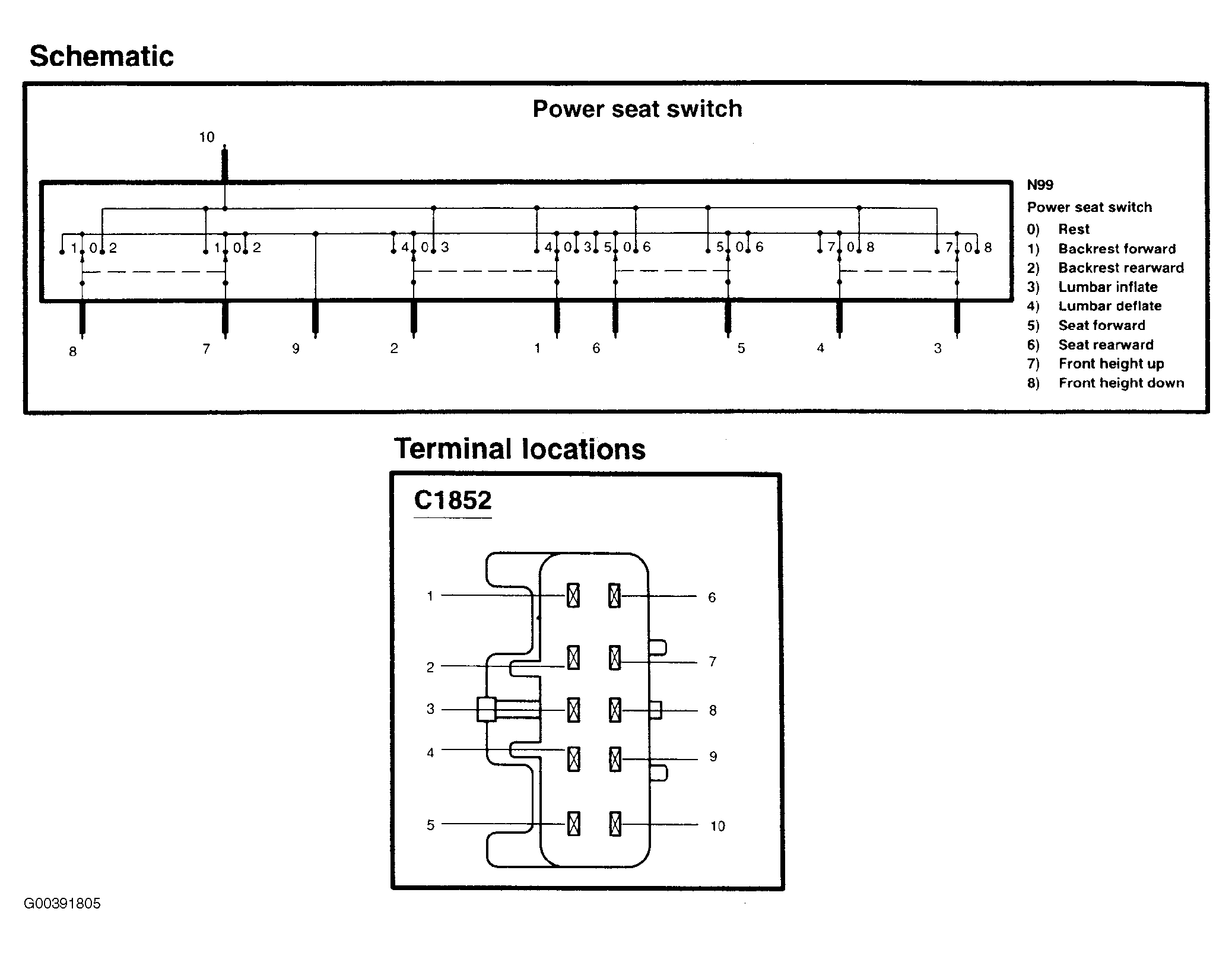

Fig 1: Testing Power Seat Switch - 8-Way Power Seat (1 Of 2)
G00391805Courtesy of FORD MOTOR CO.

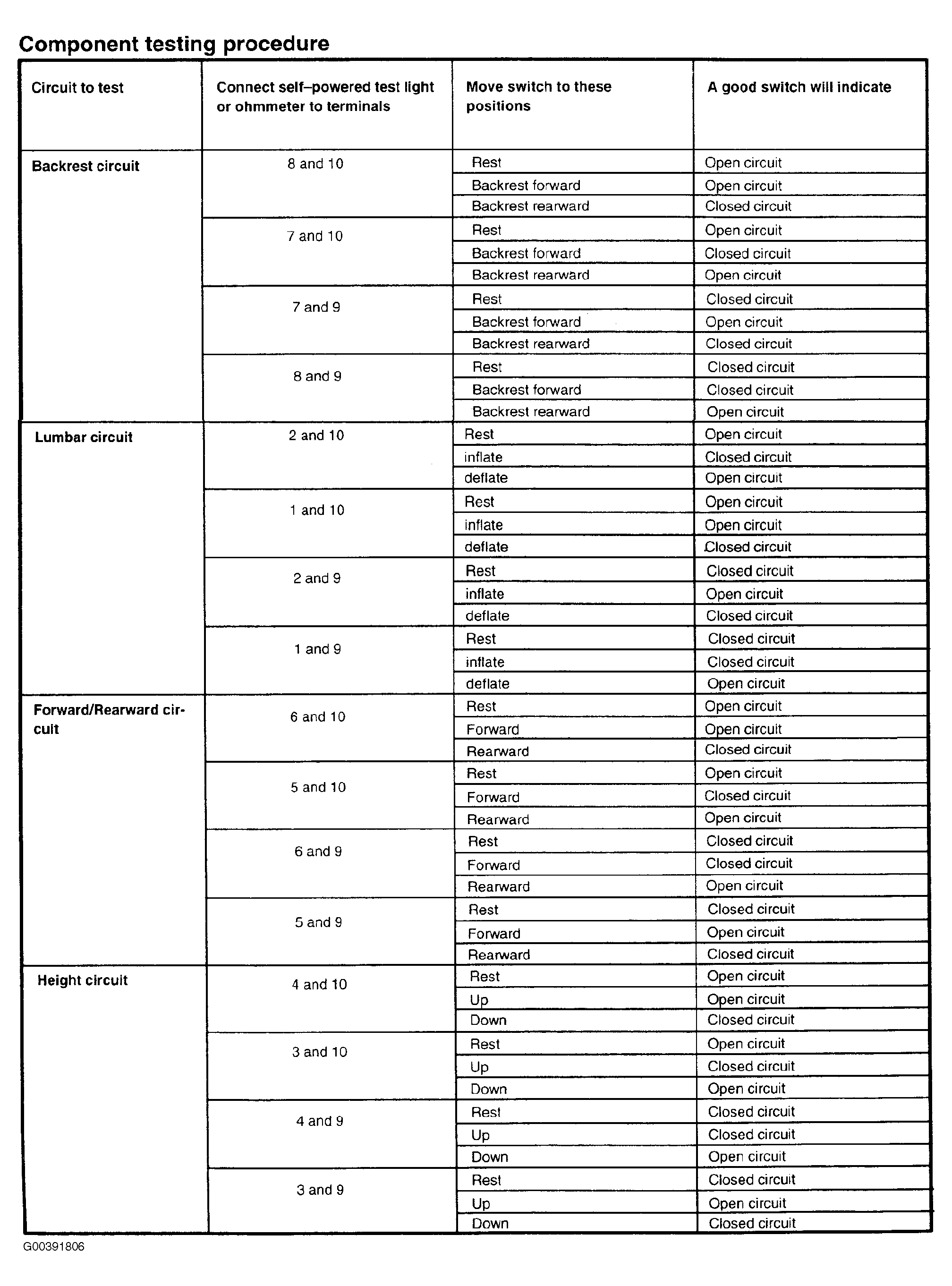

Fig 2: Testing Power Seat Switch - 8-Way Power Seat (2 Of 2)
G00391806Courtesy of FORD MOTOR CO.

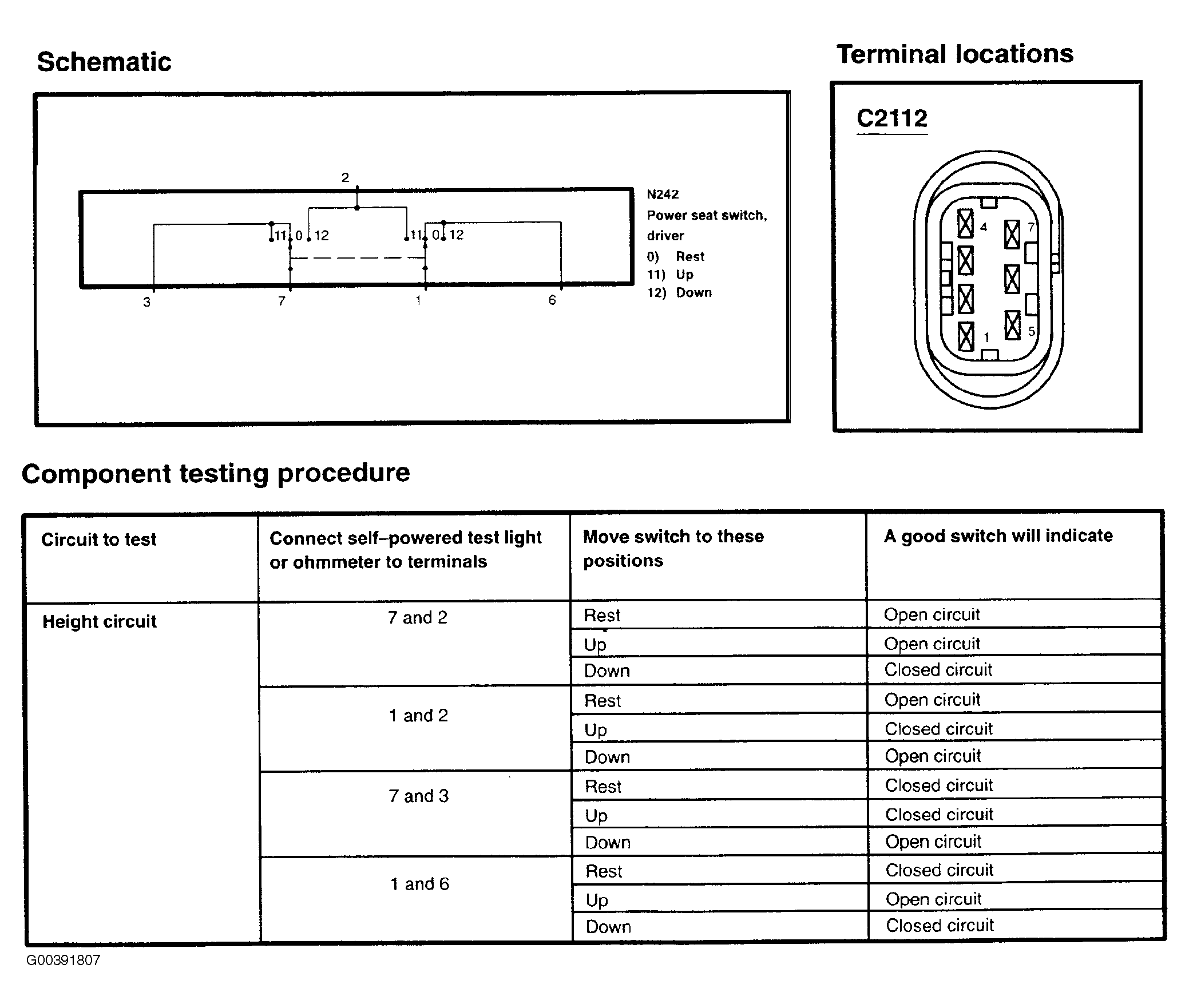

Fig 3: Testing Power Seat Switch - Seat Height Adjust Only
G00391807Courtesy of FORD MOTOR CO.
