Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

  1. Assemble the synchronizer.
    1. Compression spring.
    2. Blocker bar.
    3. Detent ball.
    4. Synchronizer outer ring.

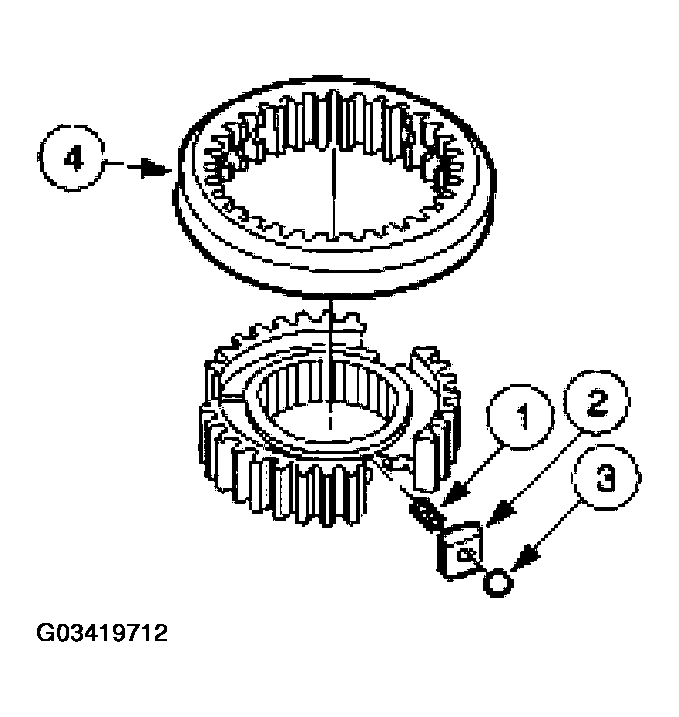

      Fig 1: Assembling Synchronizer Components
      G03419712Courtesy of FORD MOTOR CO.
