1-2 Accumulator: Installation

  1. Install the 1-2 accumulator.
    1. Install the 1-2 accumulator upper spring.
    2. Install the accumulator piston.
    3. Install the 1-2 accumulator lower spring.
    4. Install the cover and seal assembly.

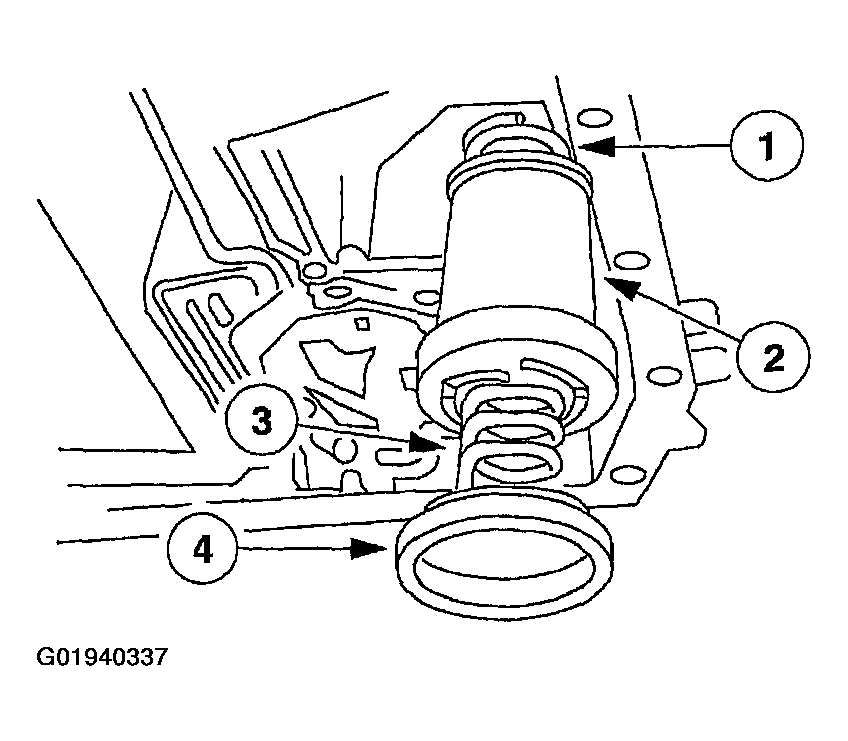

    Fig 1: Identifying 1-2 Accumulator Cover, Lower 1-2 Accumulator Spring, Accumulator Piston & Upper 1-2 Accumulator Spring
    G01940337Courtesy of FORD MOTOR CO.
  2. Compress the accumulator and install the accumulator piston retaining ring.
    Fig 2: Identifying Accumulator Piston Retaining Ring
    G01940338Courtesy of FORD MOTOR CO.
