Symptom Chart

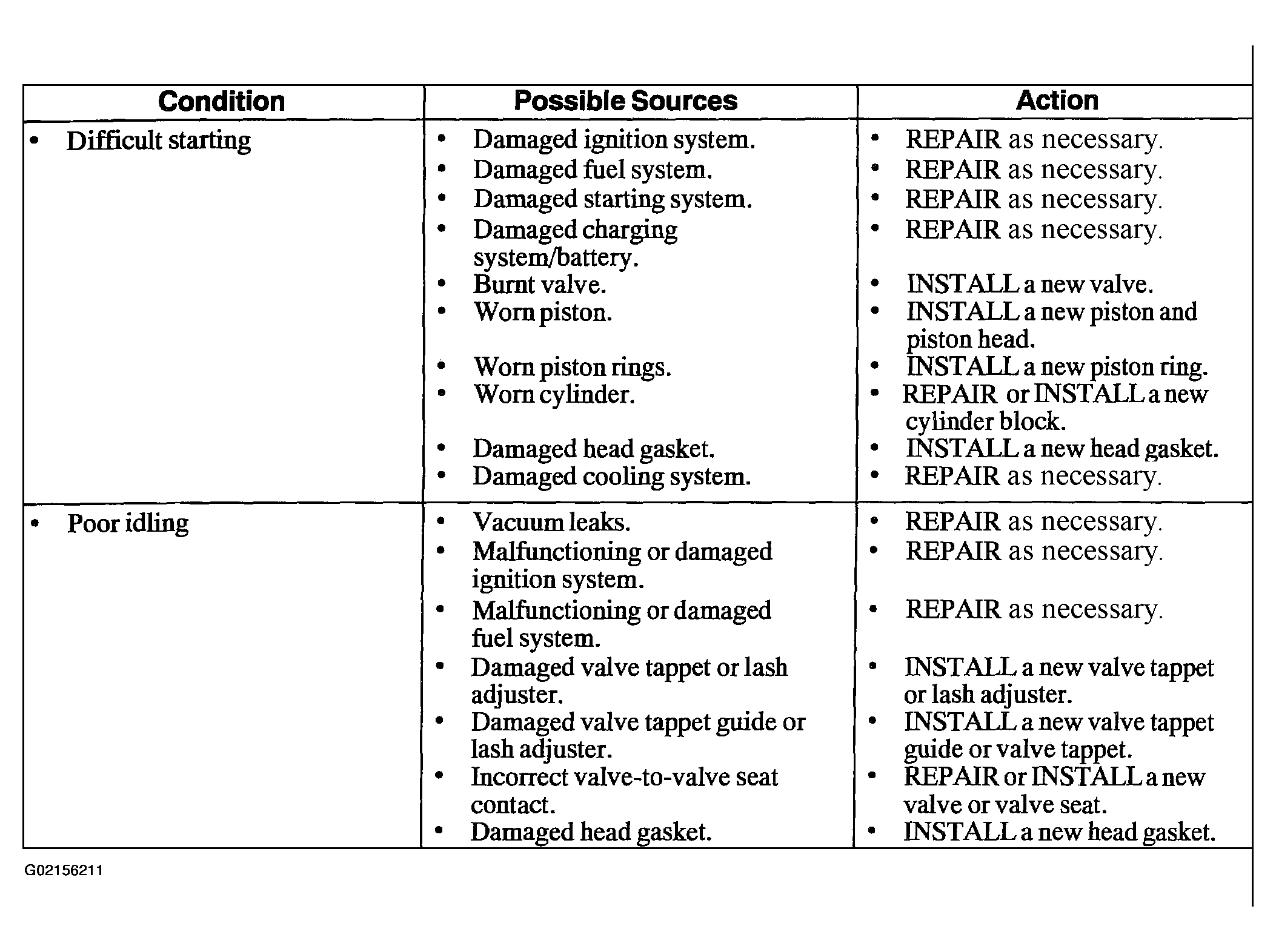

Fig 1: Symptom Chart (1 Of 4)
G02156211Courtesy of FORD MOTOR CO.

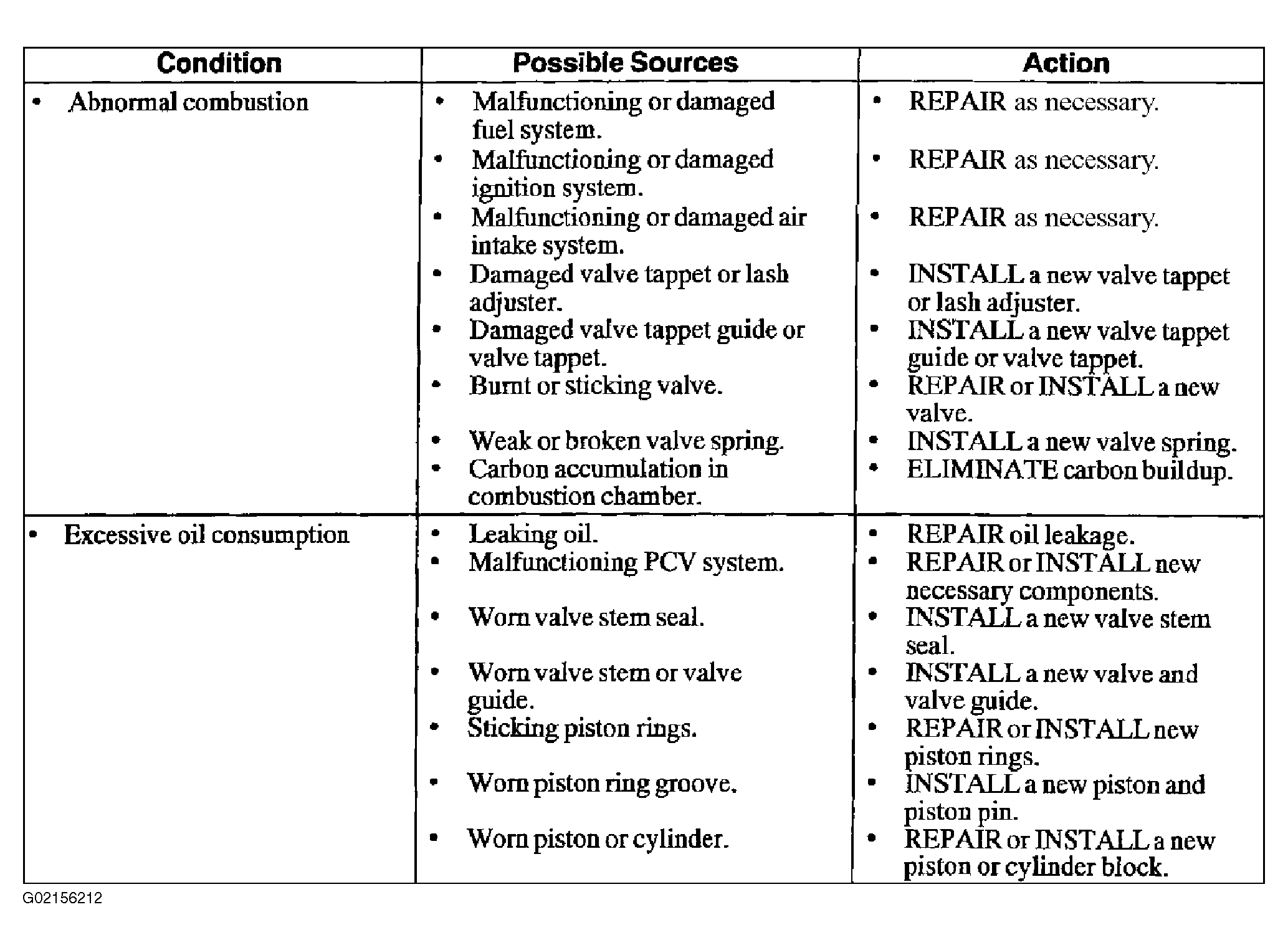

Fig 2: Symptom Chart (2 Of 4)
G02156212Courtesy of FORD MOTOR CO.

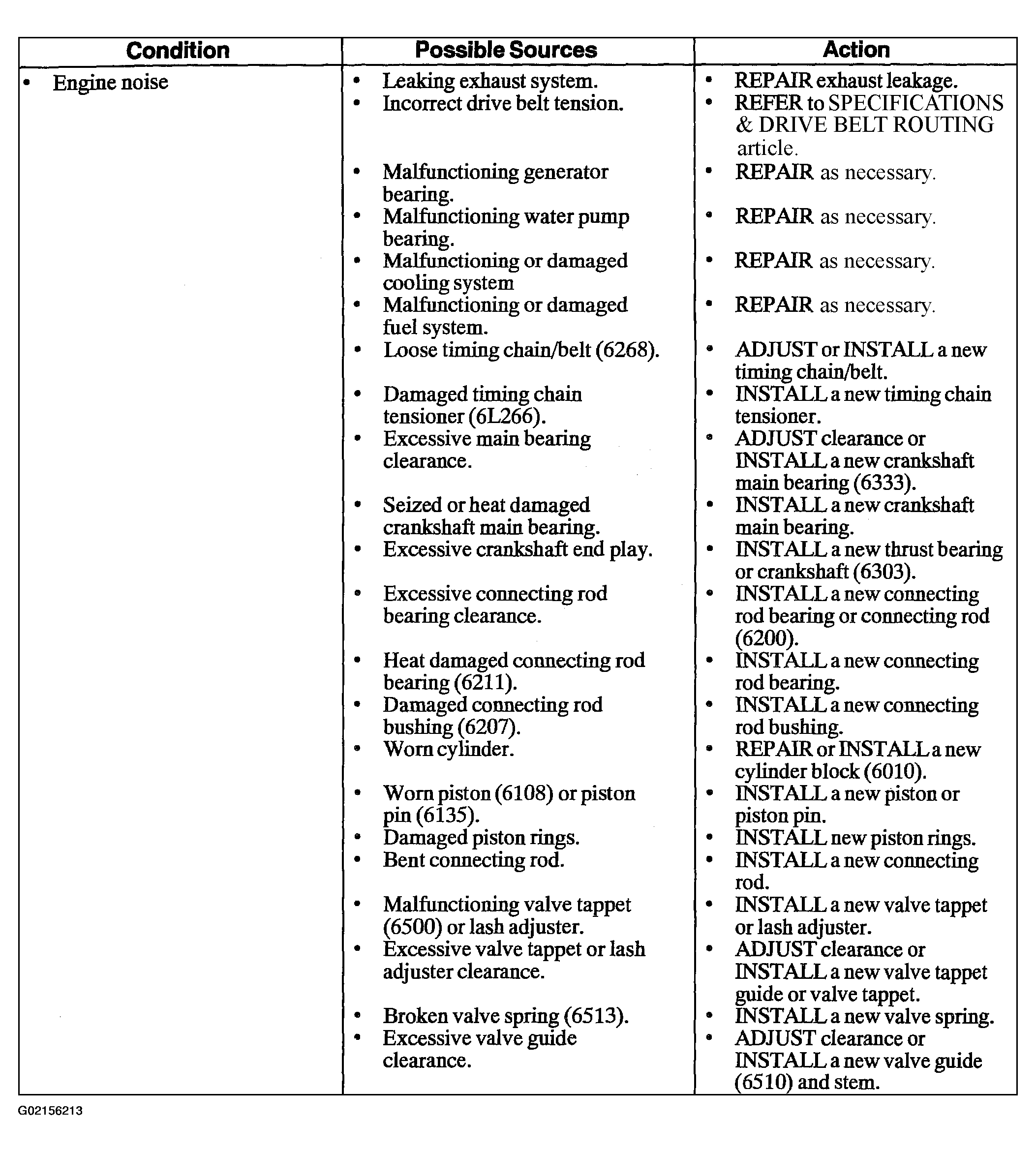

Fig 3: Symptom Chart (3 Of 4)
G02156213Courtesy of FORD MOTOR CO.

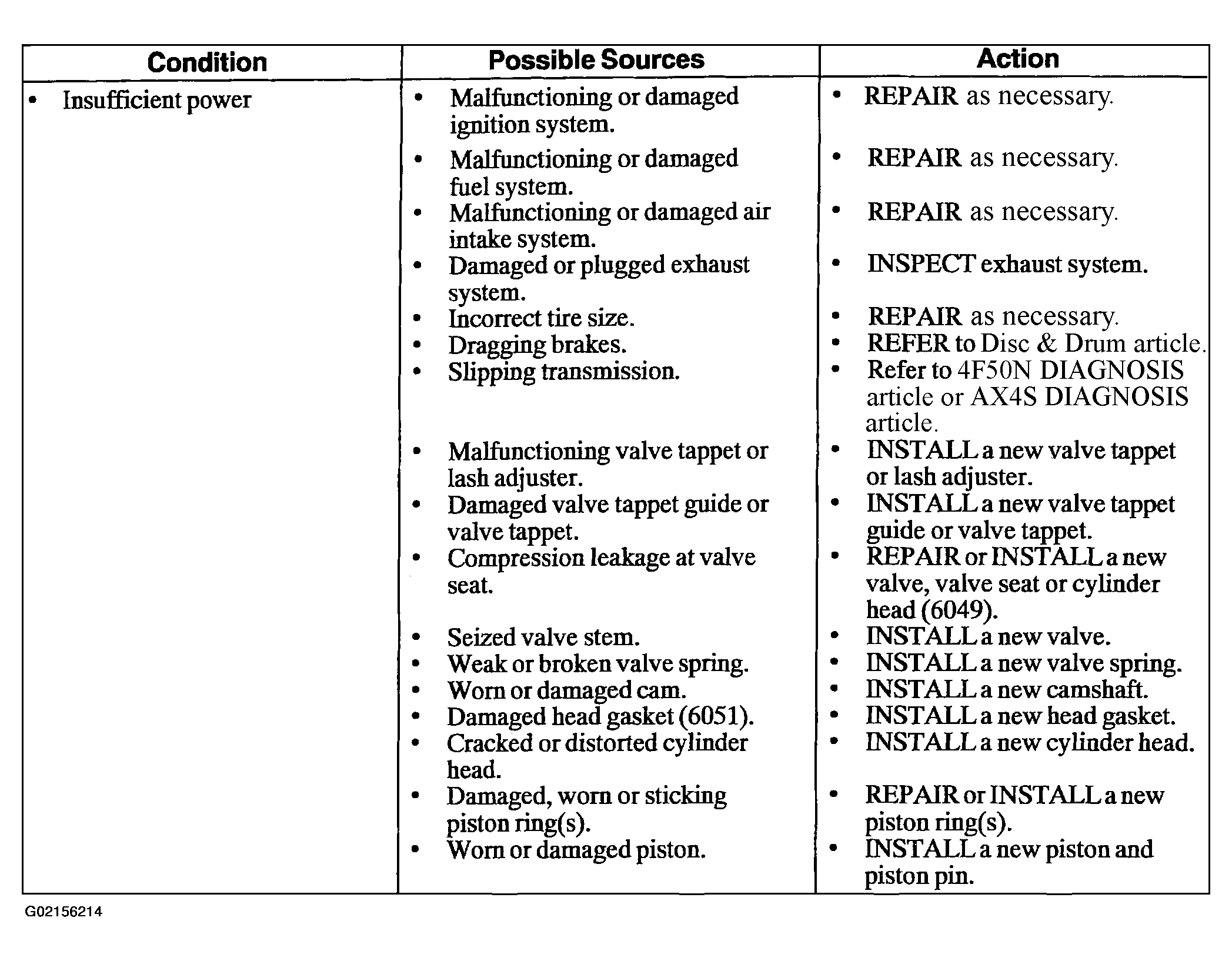

Fig 4: Symptom Chart (4 Of 4)
G02156214Courtesy of FORD MOTOR CO.
