Ignition Switch

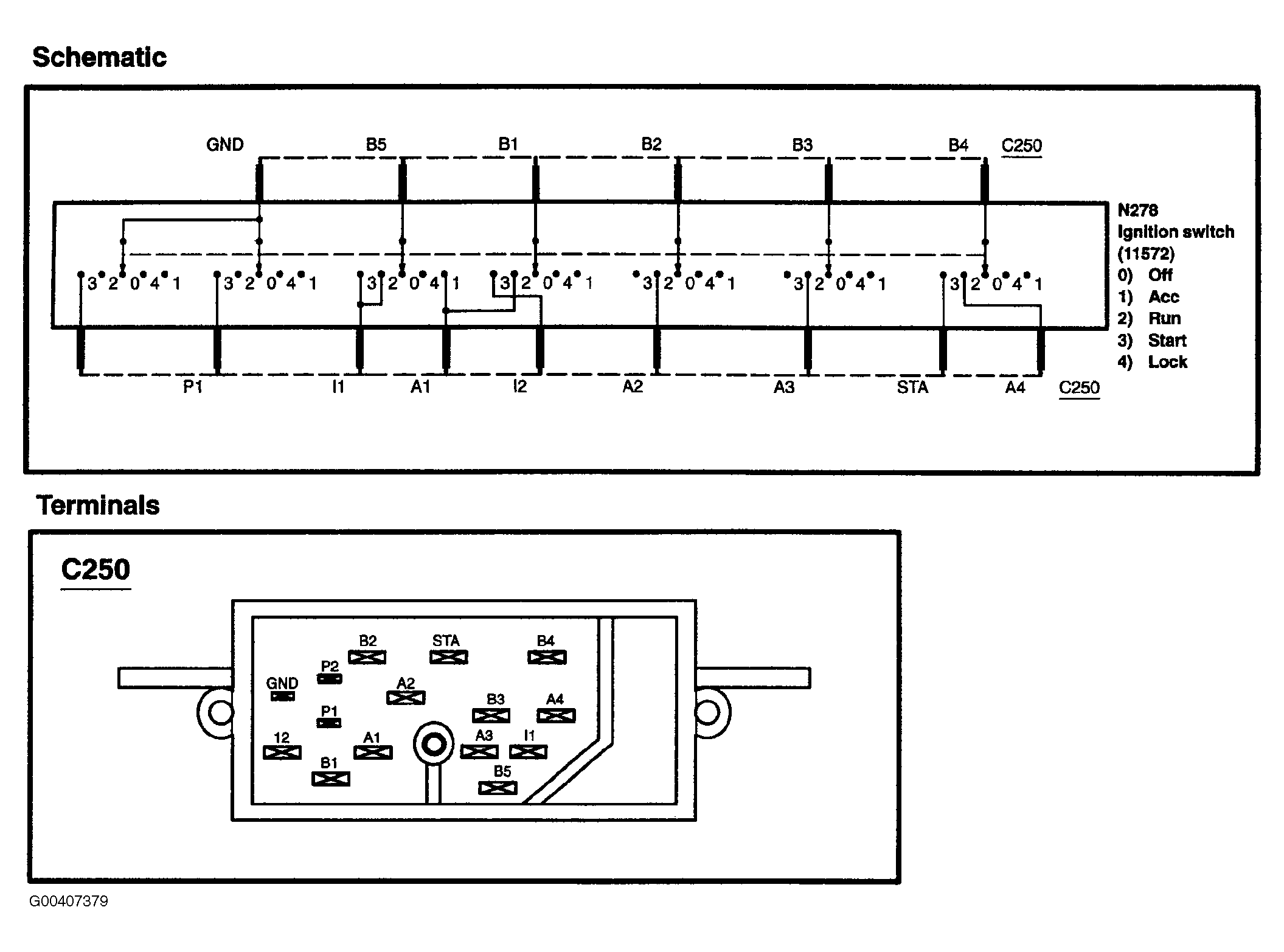

Fig 1: Testing Ignition Switch (1 Of 2)
G00407379Courtesy of FORD MOTOR CO.

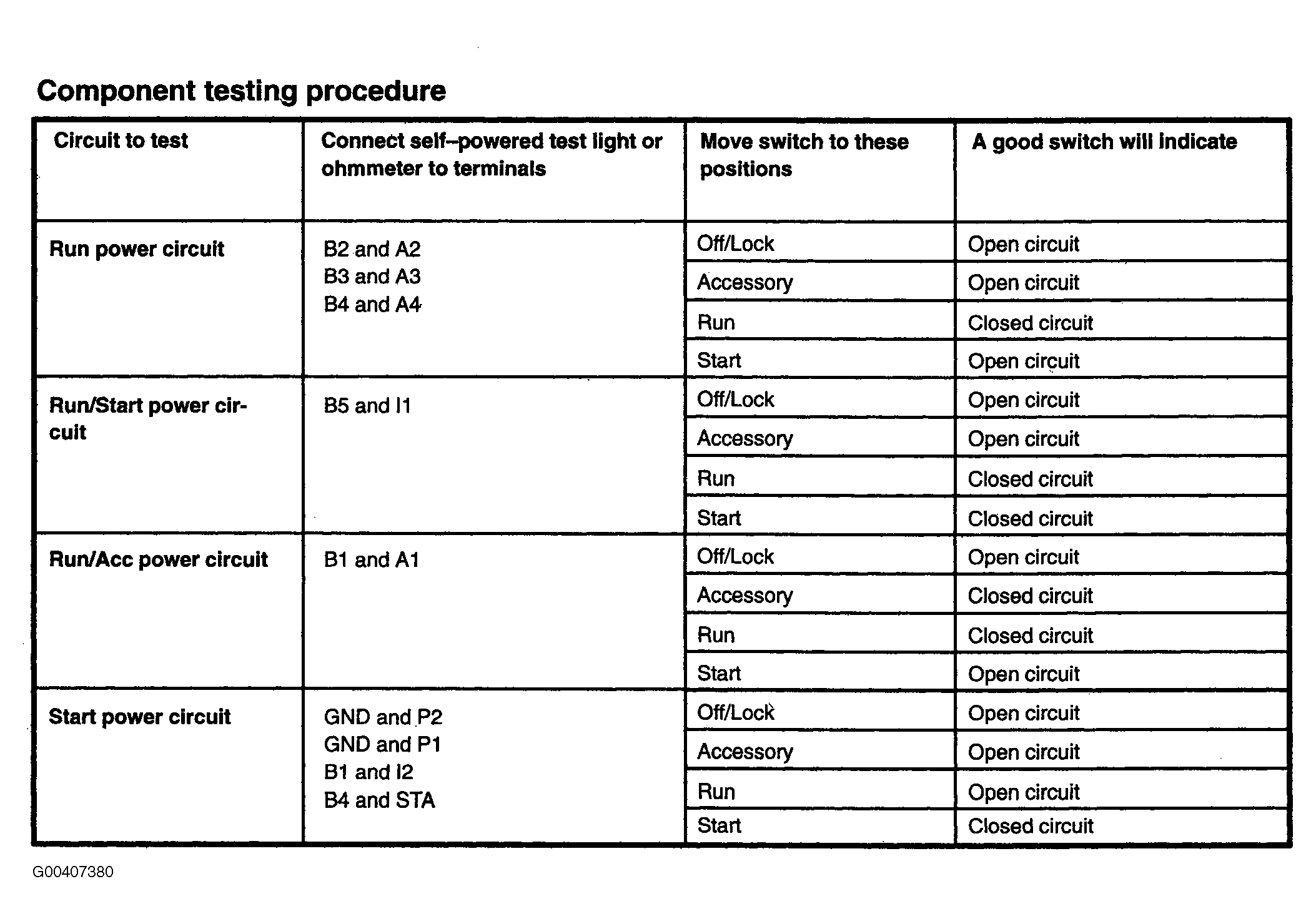

Fig 2: Testing Ignition Switch (2 Of 2)
G00407380Courtesy of FORD MOTOR CO.
