MULTIFUNCTION Switch
›
Wiper/Washer Portion
Wiper/Washer Portion

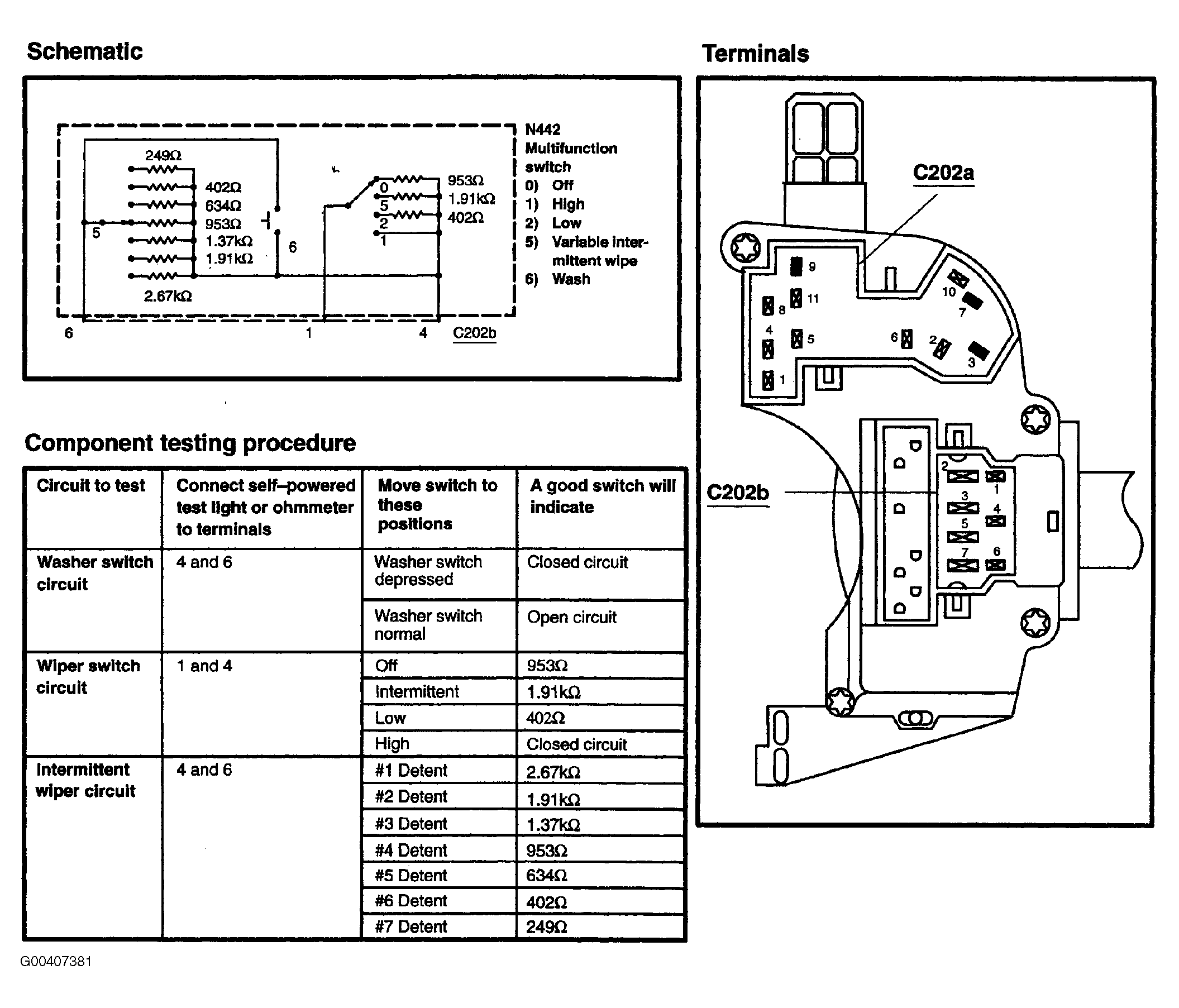

Fig 1: Testing Multifunction Switch (Wiper/Washer Portion)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
