Component Testing: Relays

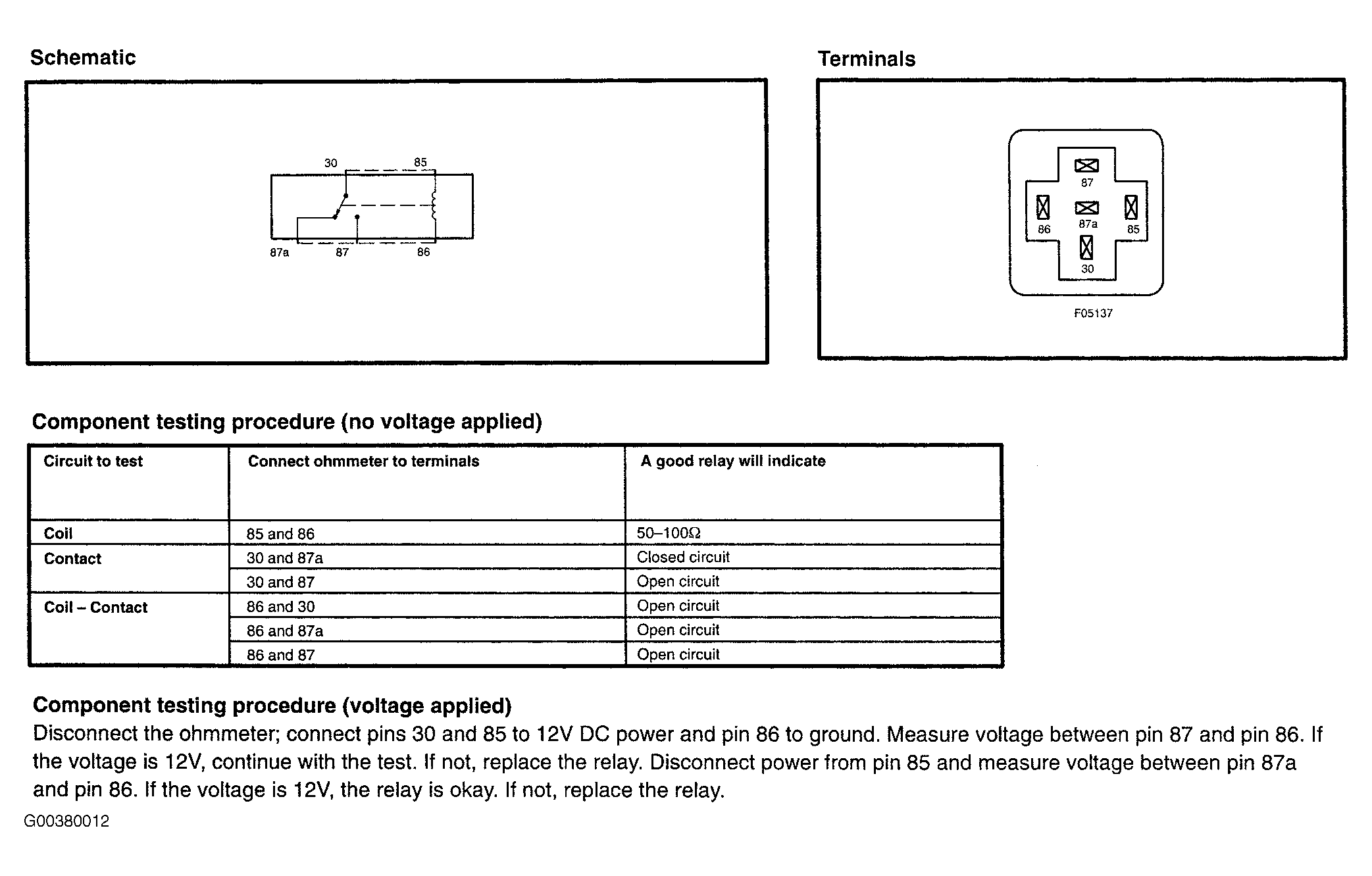

Fig 1: Testing Relay - Mini ISO
G00380012Courtesy of FORD MOTOR CO.

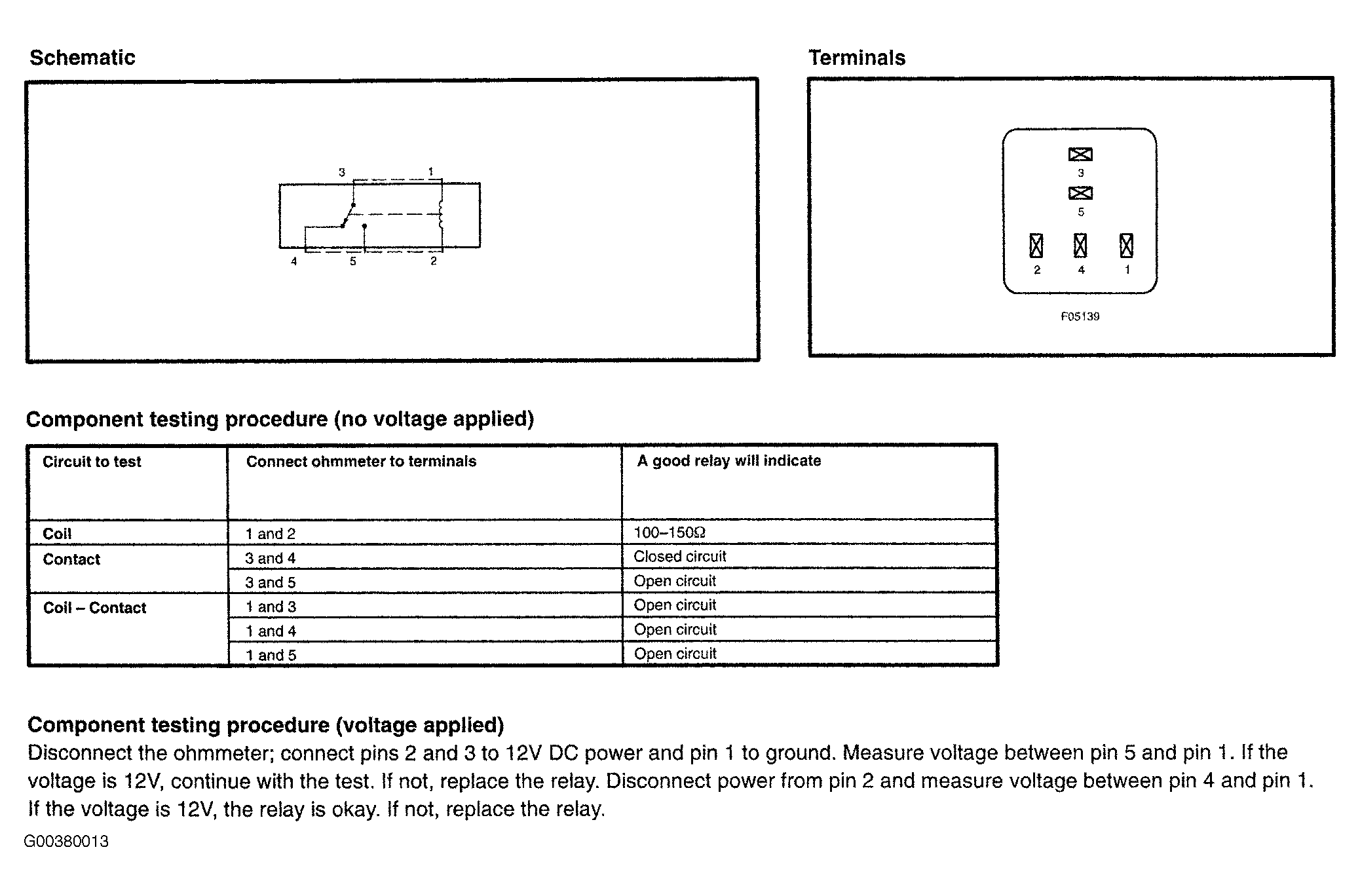

Fig 2: Testing Relay - Micro ISO
G00380013Courtesy of FORD MOTOR CO.
