Seat Adjust Switch

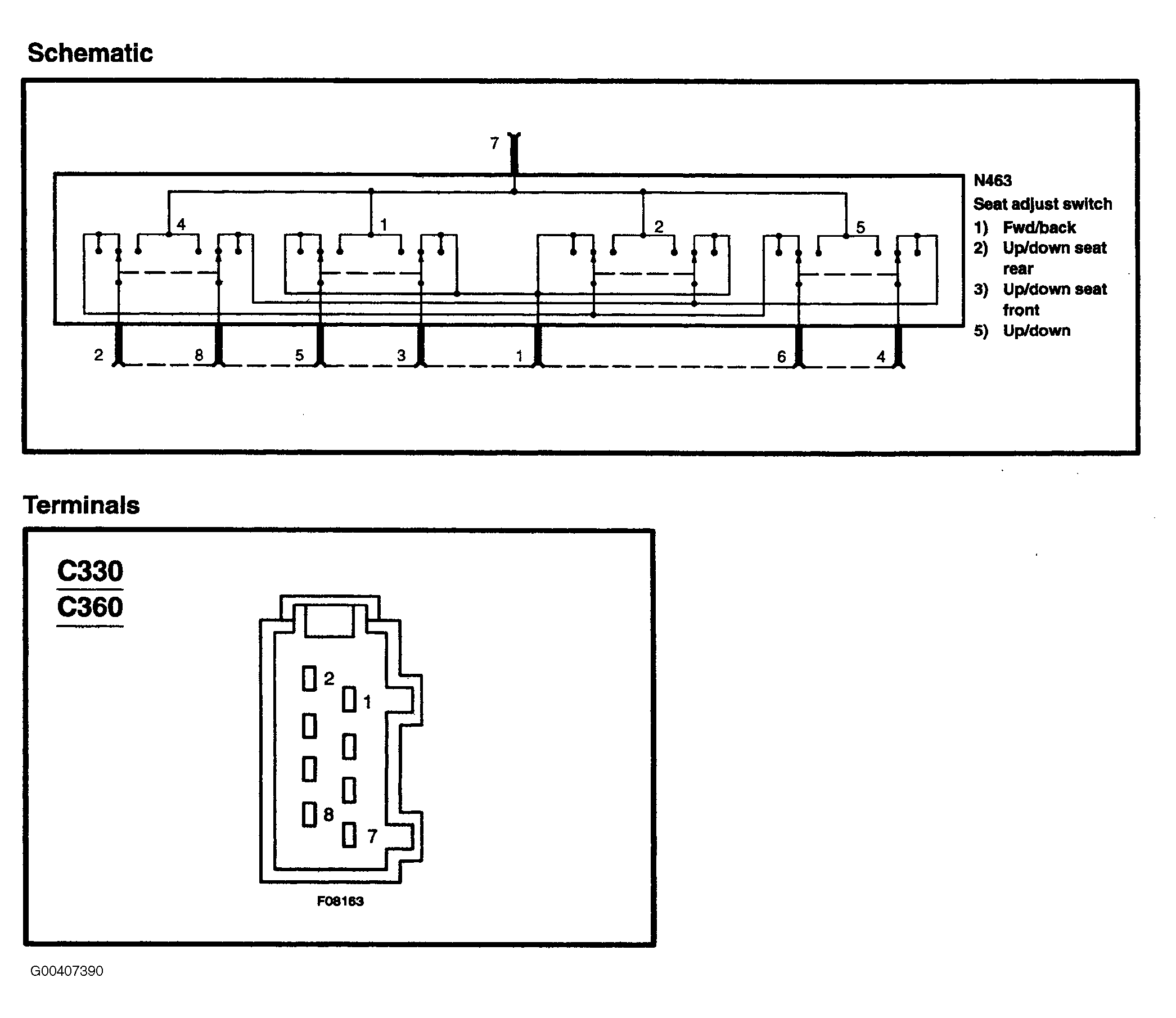

Fig 1: Testing Seat Adjust Switch (1 Of 2)
G00407390Courtesy of FORD MOTOR CO.

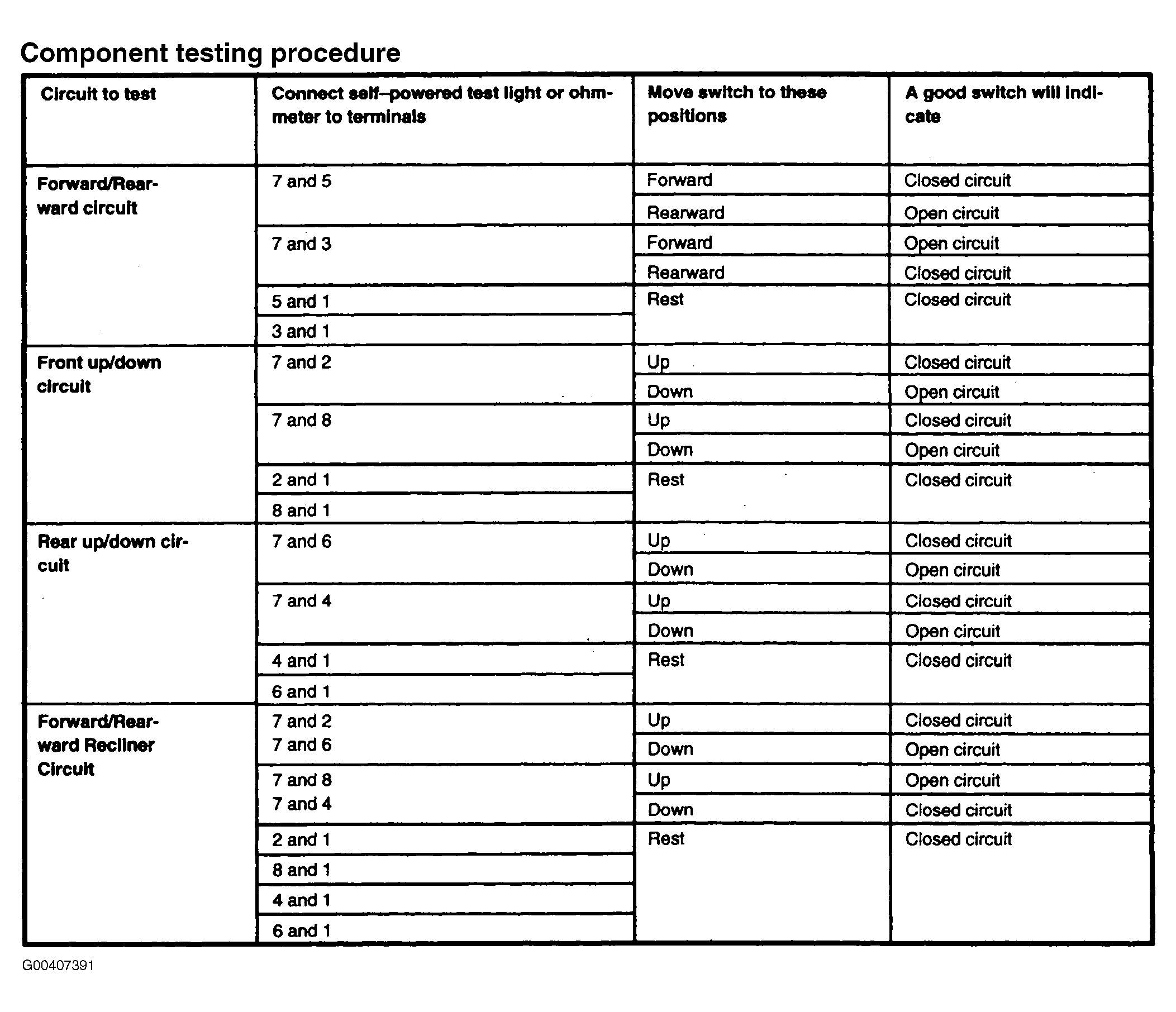

Fig 2: Testing Seat Adjust Switch (2 Of 2)
G00407391Courtesy of FORD MOTOR CO.
