Pinpoint Test L: The Traction Control Is Inoperative
Pinpoint Test L: The Traction Control Is Inoperative

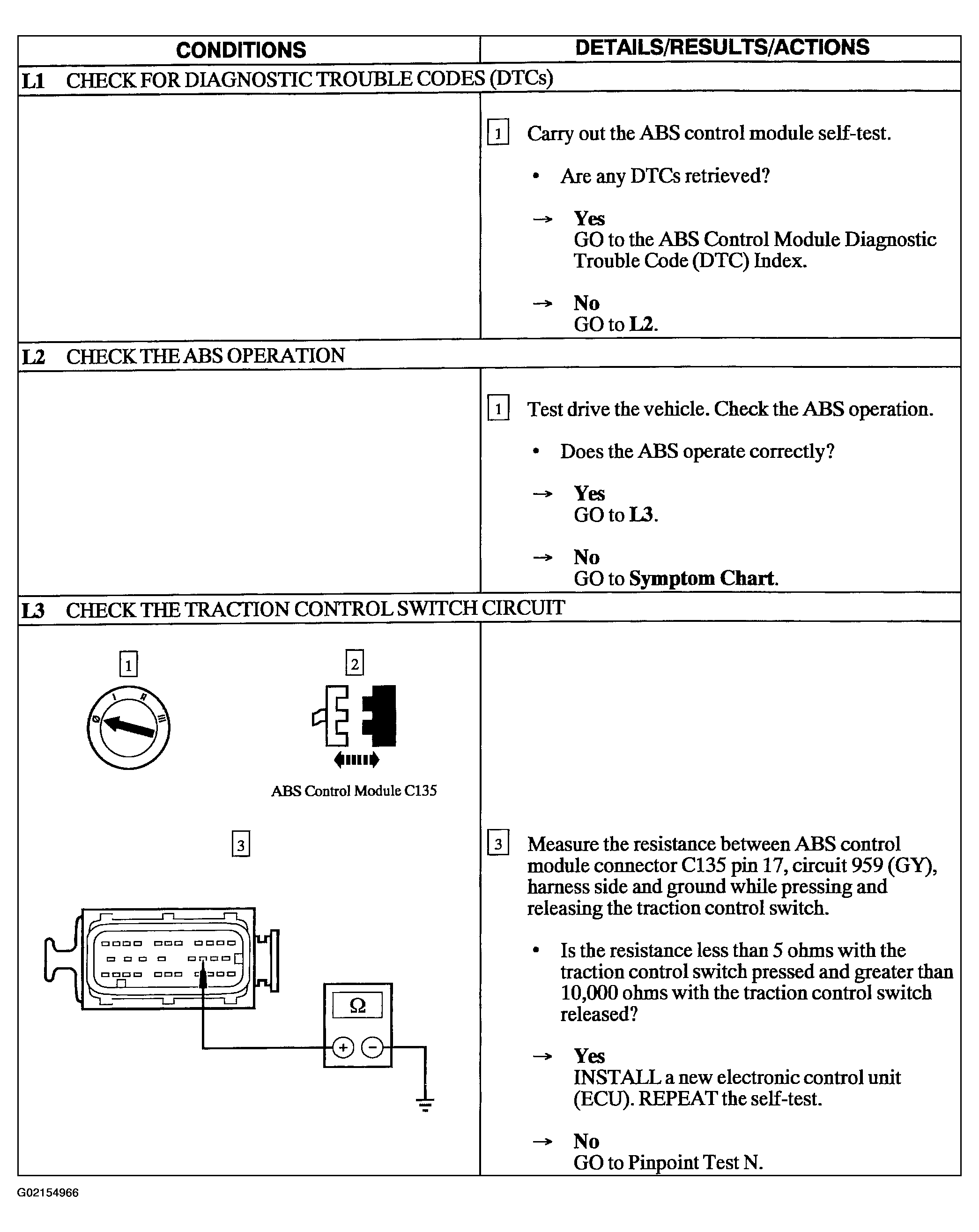

Fig 1: Pinpoint Test L: The Traction Control Is Inoperative (Steps L1-L3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
