Pinpoint Test N: The Traction Control Cannot Be Disabled

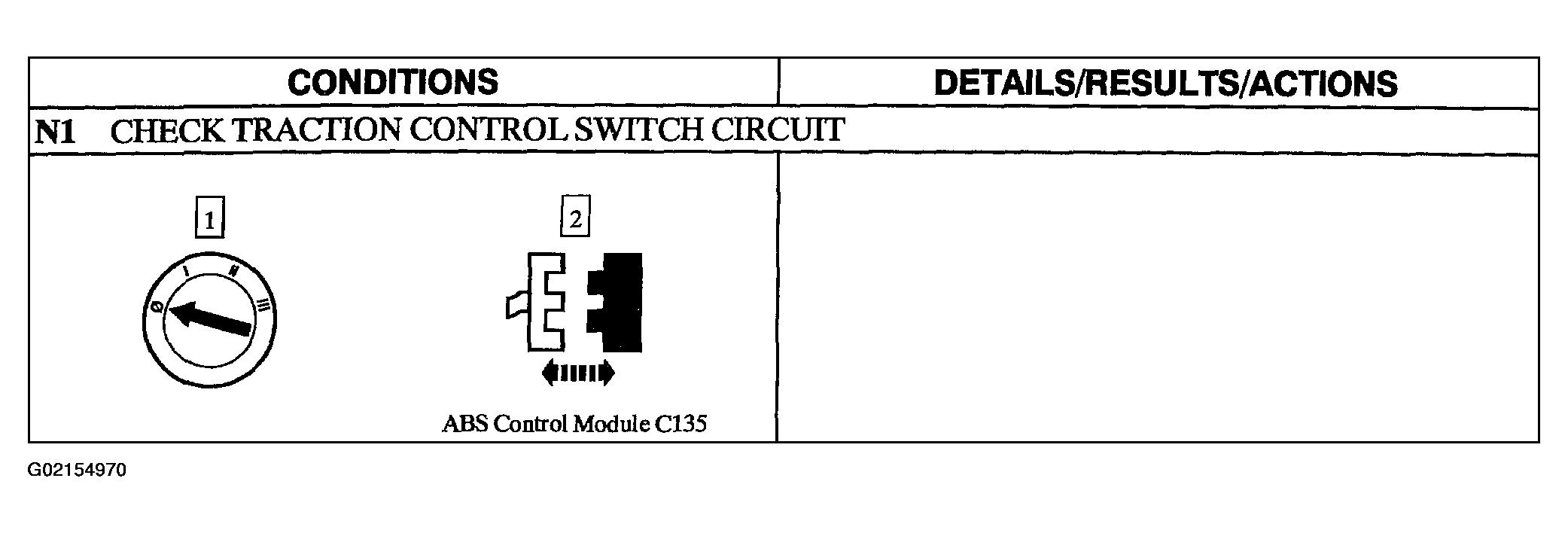

Fig 1: Pinpoint Test N: The Traction Control Cannot Be Disabled (Step N1)

Courtesy of FORD MOTOR CO.

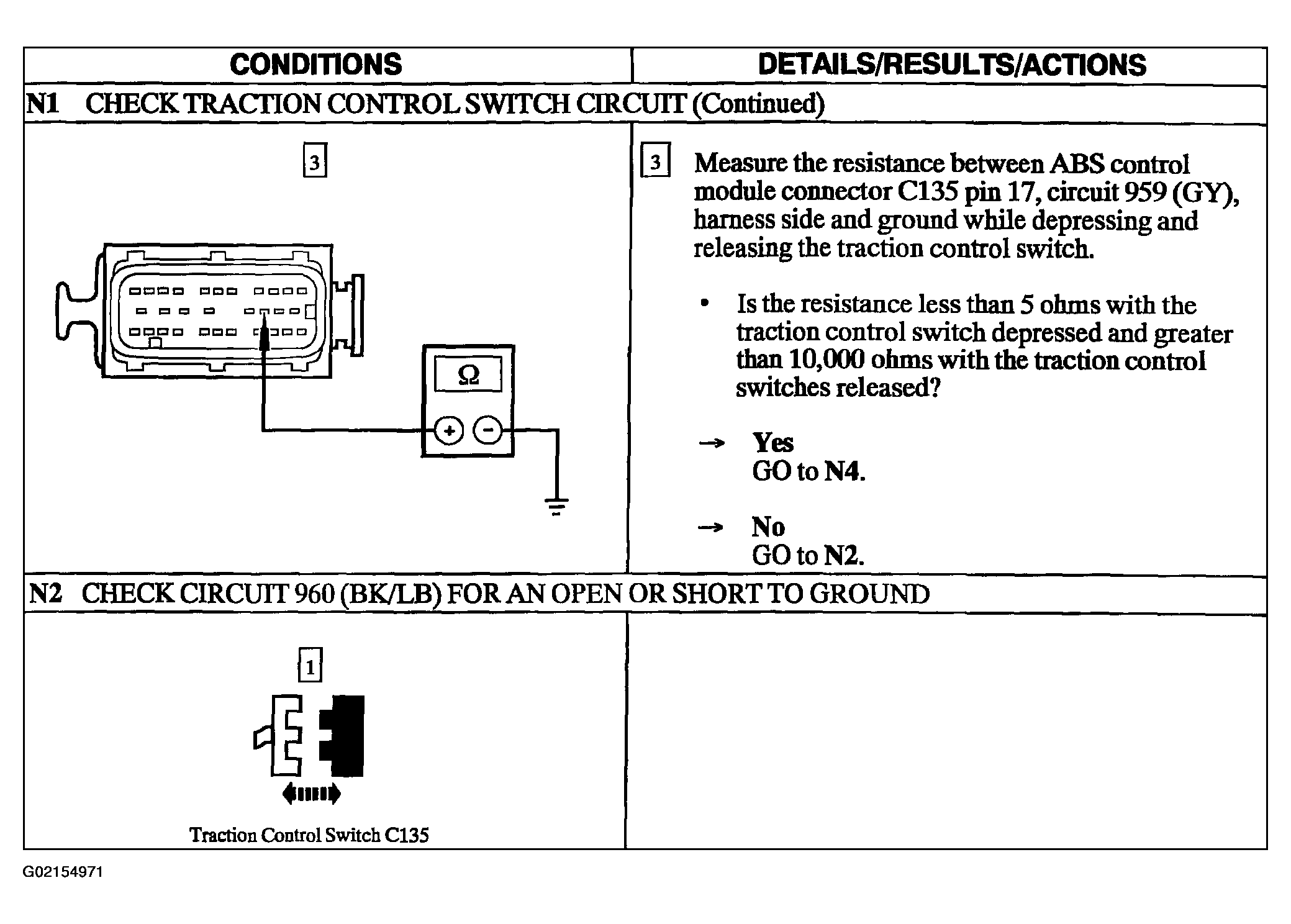

Fig 2: Pinpoint Test N: The Traction Control Cannot Be Disabled (Step N1 Cont. & N2)

Courtesy of FORD MOTOR CO.

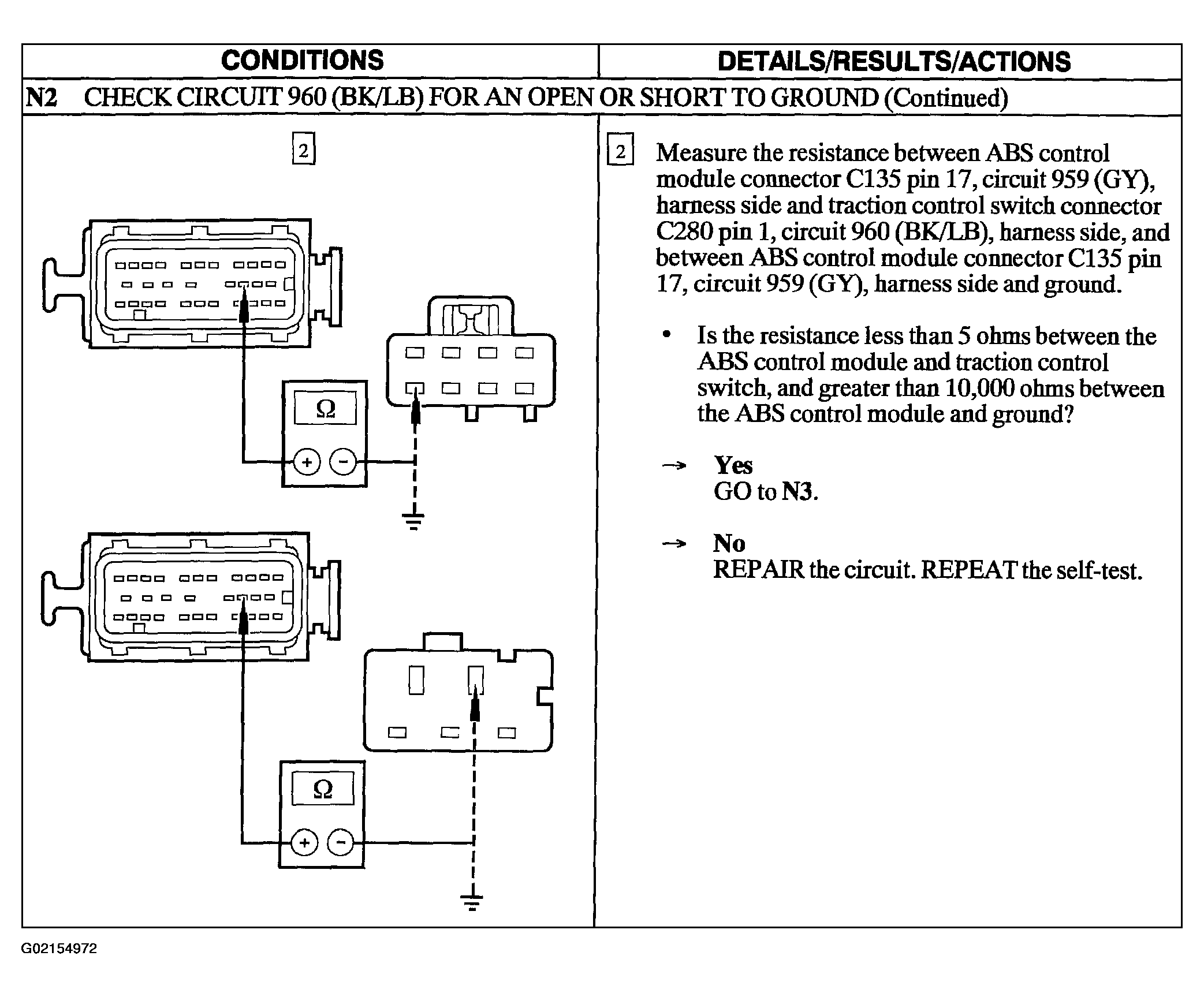

Fig 3: Pinpoint Test N: The Traction Control Cannot Be Disabled (Step N2 Cont.)

Courtesy of FORD MOTOR CO.

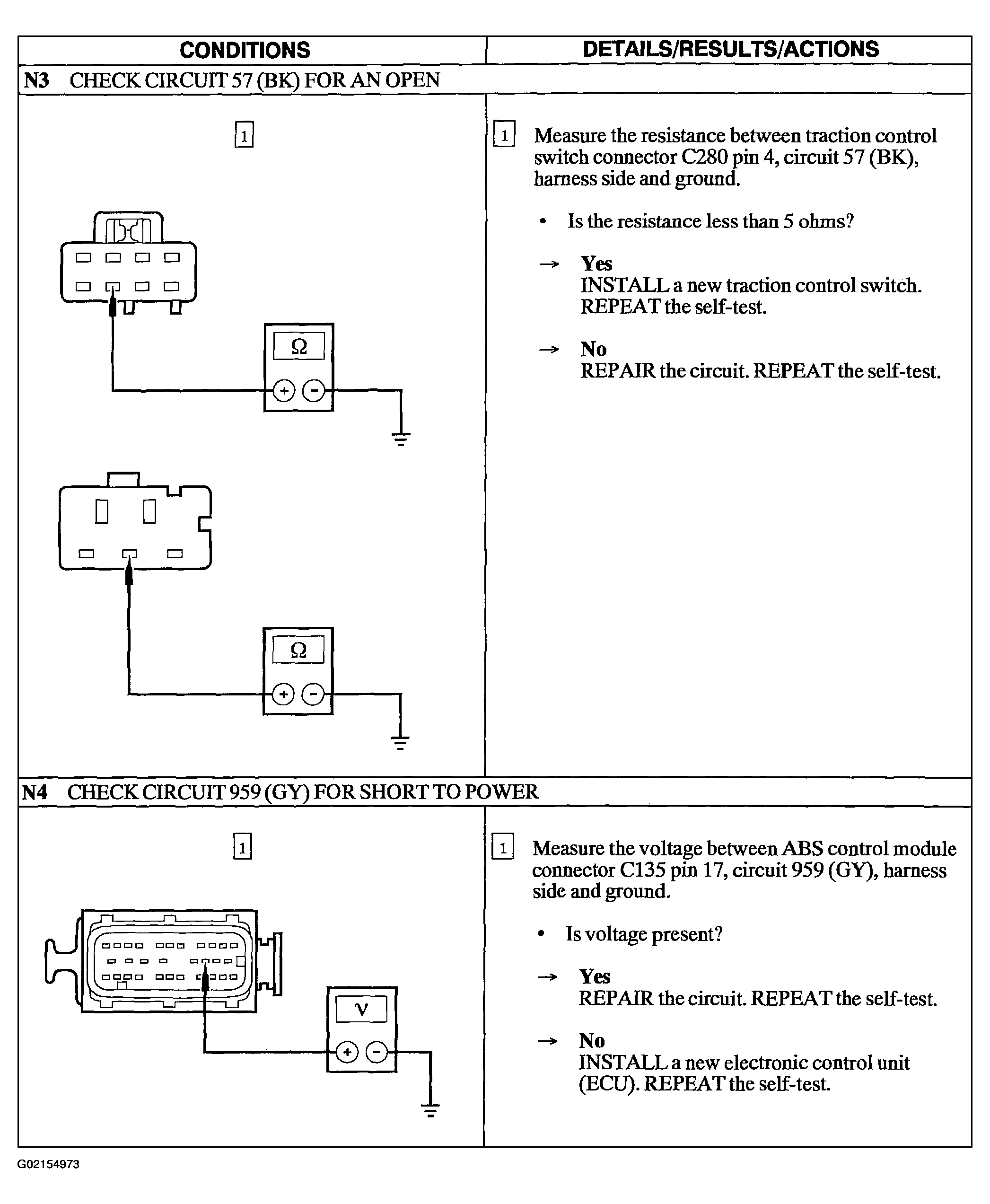

Fig 4: Pinpoint Test N: The Traction Control Cannot Be Disabled (Step N3 & N4)

Courtesy of FORD MOTOR CO.
