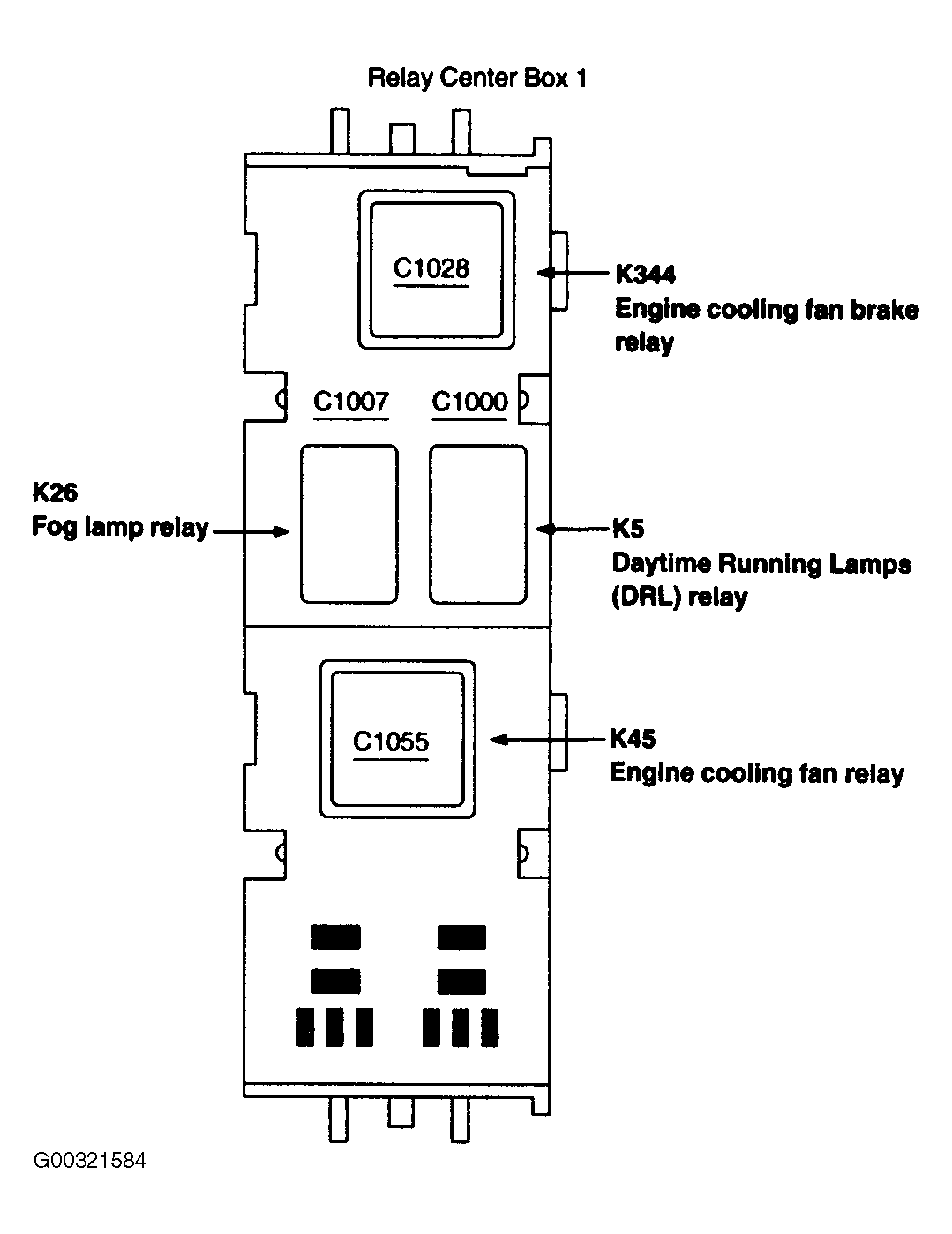

Relay Center Box 1
Relay center box 1 is located in the front left corner of engine compartment. No additional location information is available from manufacturer.
RELAY CENTER 1 RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C1007 | K26 Fog lamp relay |
| C1028 | K344 Engine cooling fan brake relay |
| C1000 | K5 Daytime Running Lamps (DRL) relay |
| C1055 | K45 Engine cooling fan relay |
