Relay Center Box 2

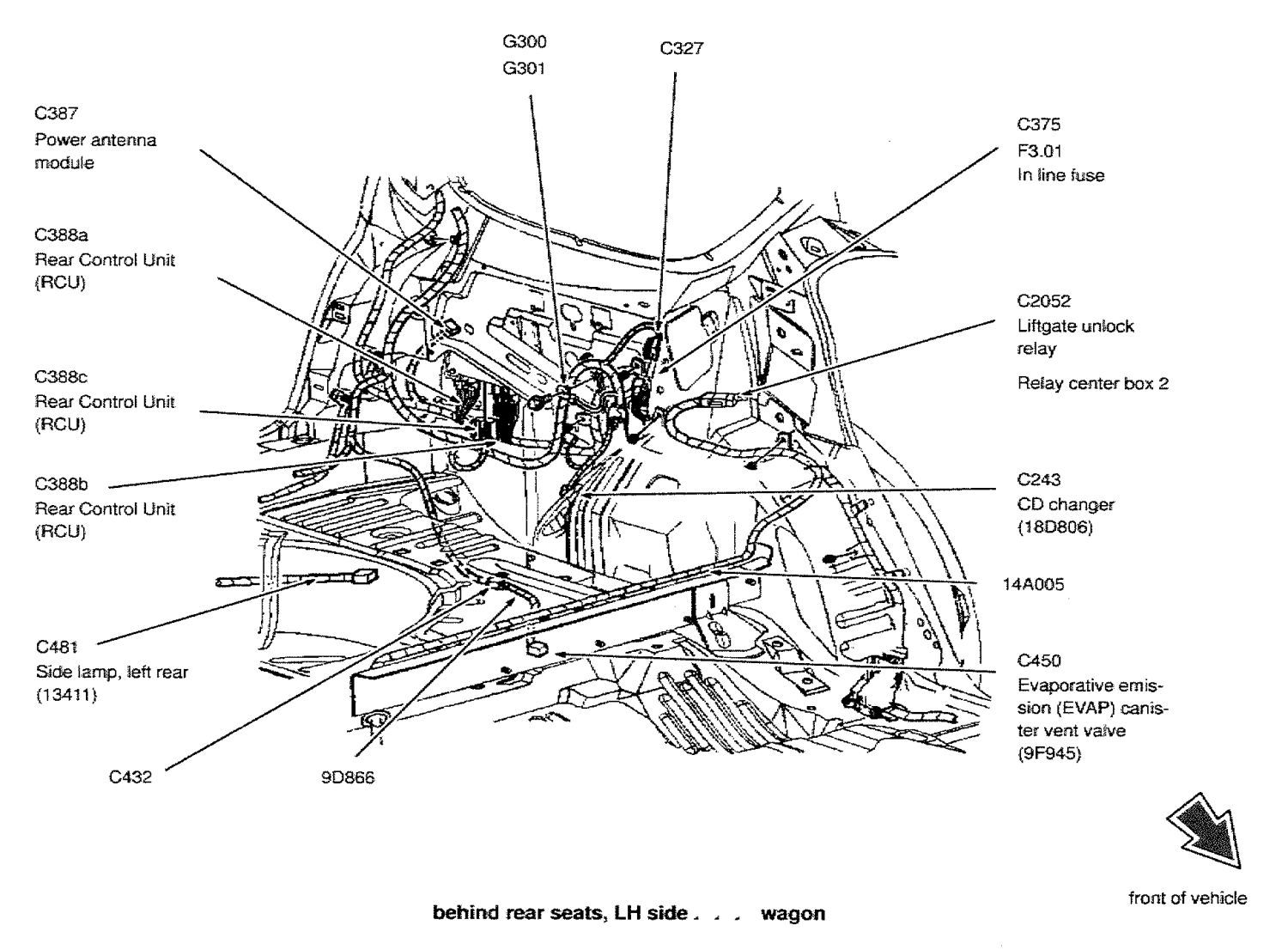

NOTE: Relay center box 2 is located behind rear seat at parcel shelf on sedan. See Fig 1. Relay center box 2 is located behind luggage compartment lining, LH side on station wagon. See Figure.

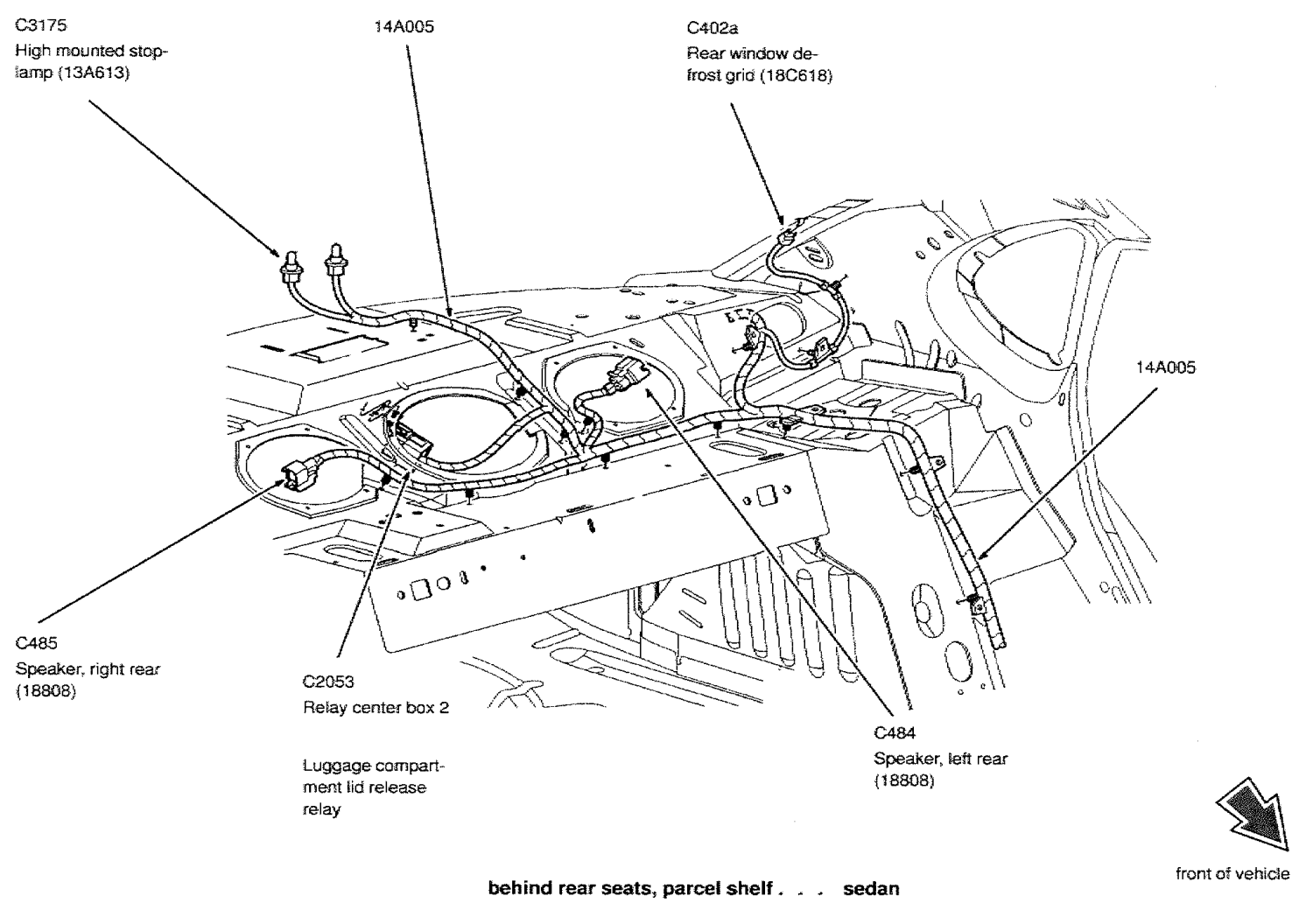

Fig 1: Parcel Shelf (Sedan)

Courtesy of FORD MOTOR CO.

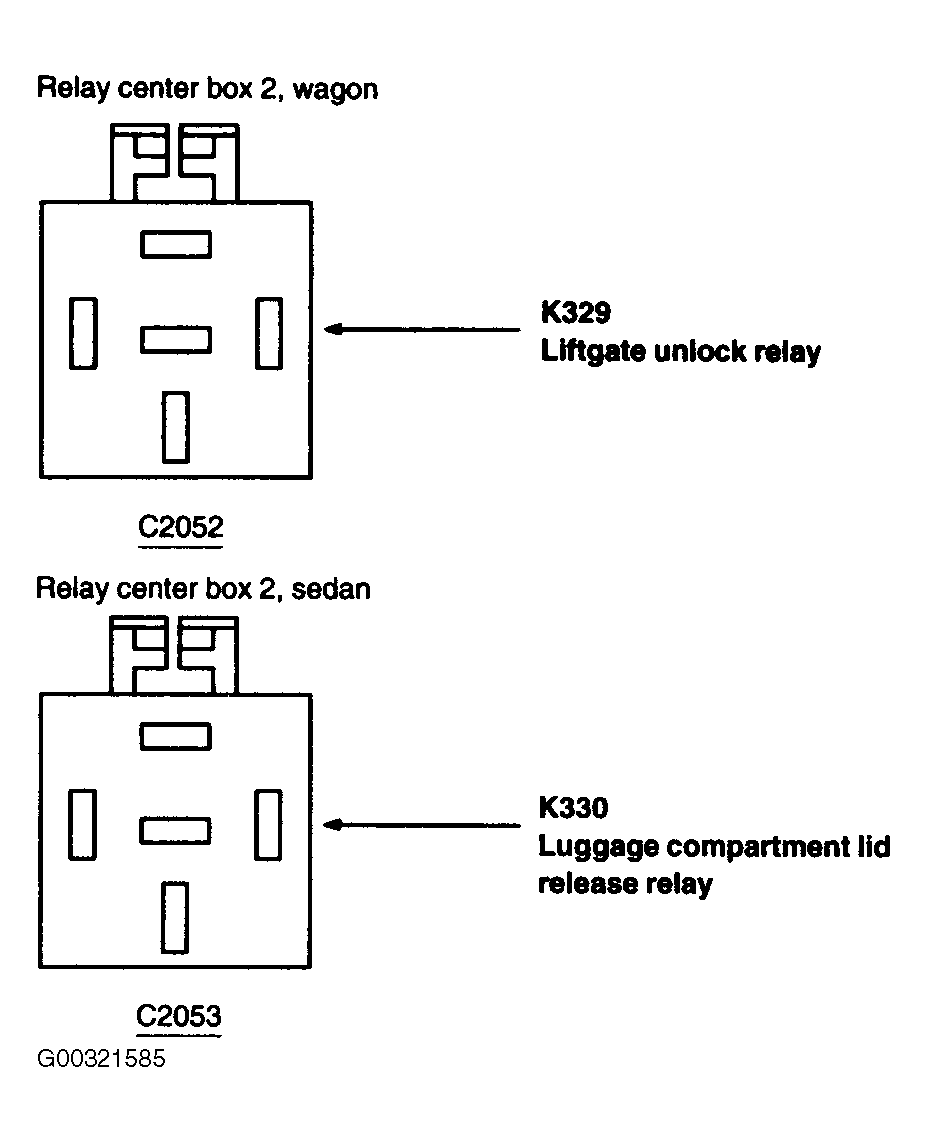

Fig 2: Relay Center 2 Components

Courtesy of FORD MOTOR CO.

RELAY CENTER 2 RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
C2052	K329 Liftgate unlock relay
C2053	K330 Luggage compartment lid release relay
