Driver Memory Seat Module C341a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

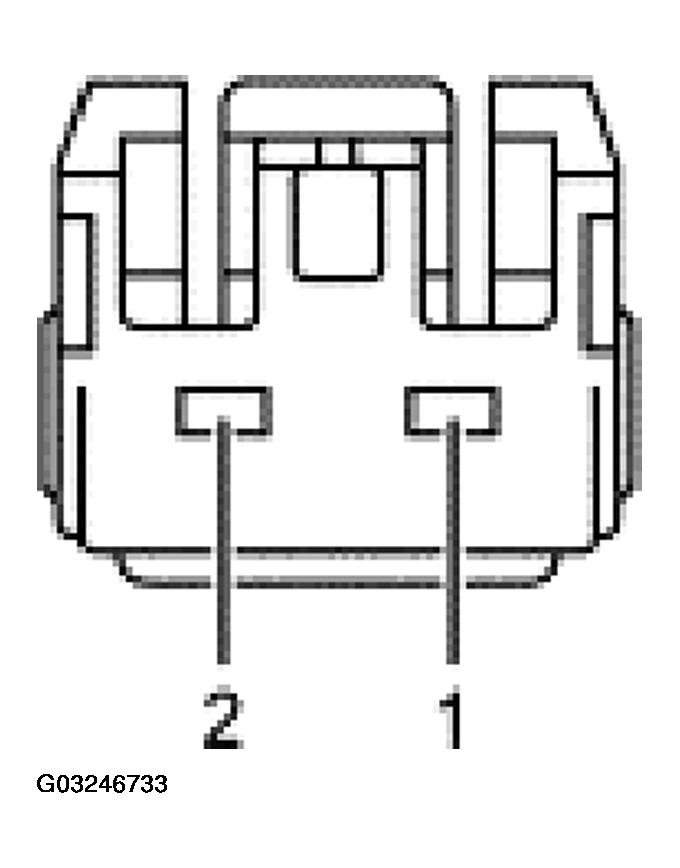

Courtesy of FORD MOTOR CO. DRIVER MEMORY SEAT MODULE C341a PIN CIRCUIT REFERENCE
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
CKT 566 (DG) Battery voltage from BEC |
Greater than 10 volts at all times. |
| 2 |
CKT 1205 (BK) Ground |
Continuity to ground, less than 5 ohms. |
